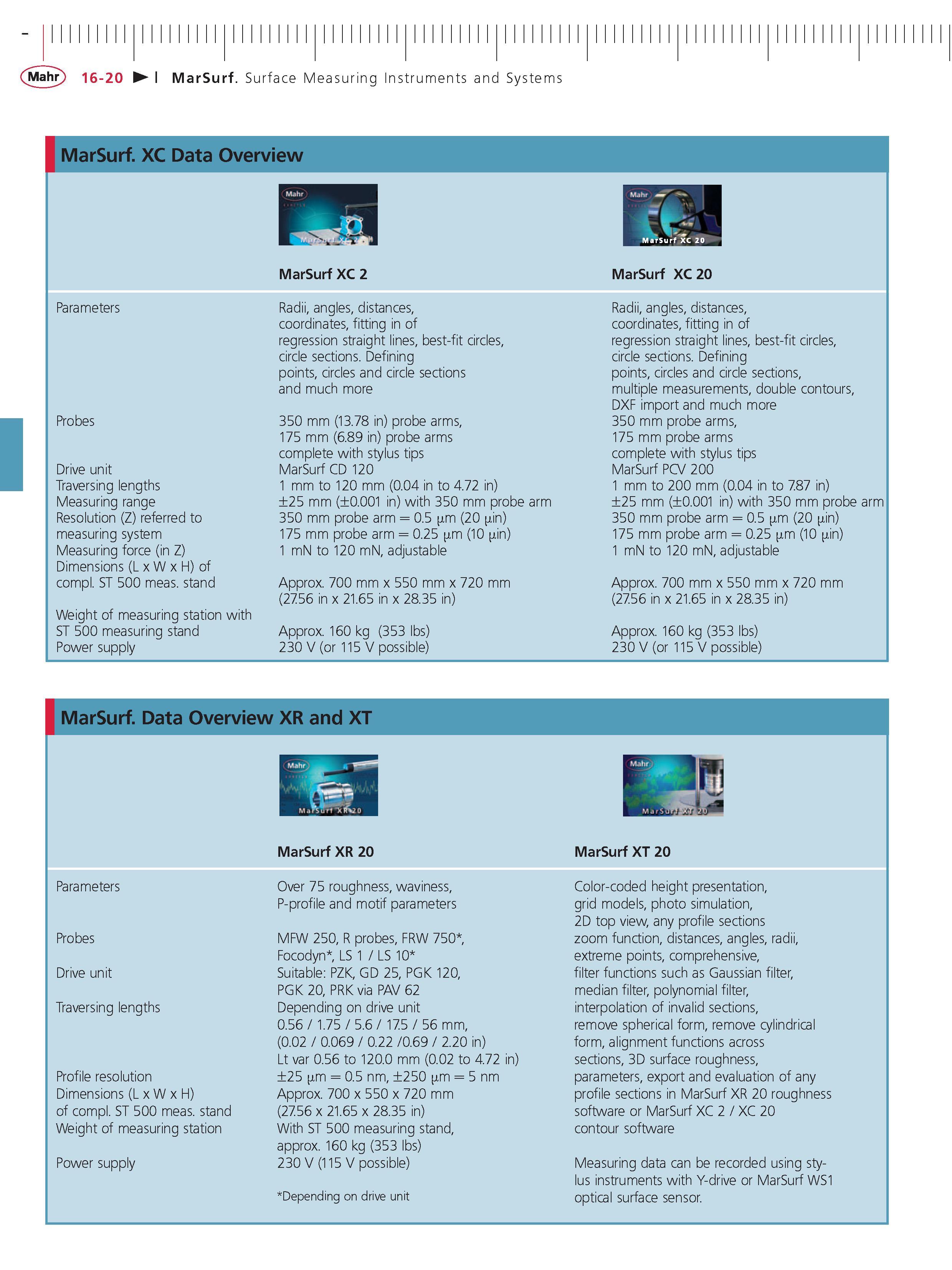

Parameters Probes Drive unit Traversing lengths Measuring range Resolution (Z) referred to measuring system Measuring force (in Z) Dimensions (L x W x H) of compl. ST 500 meas. stand Weight of measuring station with ST 500 measuring stand Power supply Radii angles distances coordinates fitting in of regression straight lines best-fit circles circle sections. Defining points circles and circle sections and much more 350 mm (13.78 in) probe arms 175 mm (6.89 in) probe arms complete with stylus tips MarSurf CD 120 1 mm to 120 mm (0.04 in to 4.72 in) 25 mm (0.001 in) with 350 mm probe arm 350 mm probe arm 0.5 m (20 in) 175 mm probe arm 0.25 m (10 in) 1 mN to 120 mN adjustable Approx. 700 mm x 550 mm x 720 mm (2756 in x 21.65 in x 28.35 in) Approx. 160 kg (353 lbs) 230 V (or 115 V possible) Radii angles distances coordinates fitting in of regression straight lines best-fit circles circle sections. Defining points circles and circle sections multiple measurements double contours DXF import and much more 350 mm probe arms 175 mm probe arms complete with stylus tips MarSurf PCV 200 1 mm to 200 mm (0.04 in to 7.87 in) 25 mm (0.001 in) with 350 mm probe arm 350 mm probe arm 0.5 m (20 in) 175 mm probe arm 0.25 m (10 in) 1 mN to 120 mN adjustable Approx. 700 mm x 550 mm x 720 mm (27.56 in x 21.65 in x 28.35 in) Approx. 160 kg (353 lbs) 230 V (or 115 V possible) MarSurf. Data Overview XR and XT MarSurf XR 20 MarSurf XT 20 Parameters Probes Drive unit Traversing lengths Profile resolution Dimensions (L x W x H) of compl. ST 500 meas. stand Weight of measuring station Power supply Over 75 roughness waviness P-profile and motif parameters MFW 250 R probes FRW 750 Focodyn LS 1 LS 10 Suitable PZK GD 25 PGK 120 PGK 20 PRK via PAV 62 Depending on drive unit 0.56 1.75 5.6 17.5 56 mm (0.02 0.069 0.22 0.69 2.20 in) Lt var 0.56 to 120.0 mm (0.02 to 4.72 in) 25 m 0.5 nm 250 m 5 nm Approx. 700 x 550 x 720 mm (27.56 x 21.65 x 28.35 in) With ST 500 measuring stand approx. 160 kg (353 lbs) 230 V (115 V possible) Depending on drive unit Color-coded height presentation grid models photo simulation 2D top view any profile sections zoom function distances angles radii extreme points comprehensive filter functions such as Gaussian filter median filter polynomial filter interpolation of invalid sections remove spherical form remove cylindrical form alignment functions across sections 3D surface roughness parameters export and evaluation of any profile sections in MarSurf XR 20 roughness software or MarSurf XC 2 XC 20 contour software Measuring data can be recorded using stylus instruments with Y-drive or MarSurf WS1 optical surface sensor.
