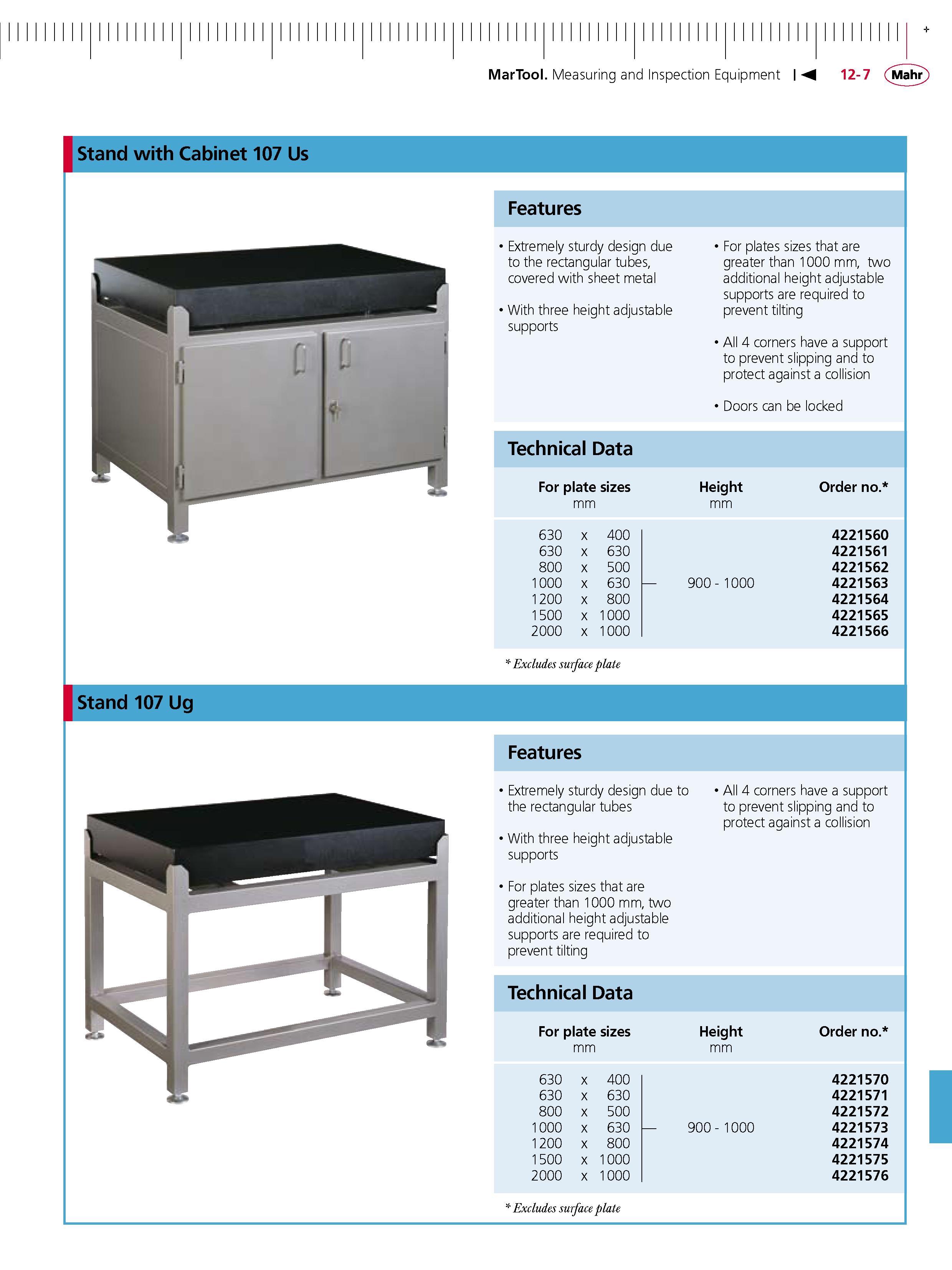

MarTool. Measuring and Inspection Equipment Stand with Cabinet 107 Us Features Extremely sturdy design due to the rectangular tubes covered with sheet metal With three height adjustable supports For plates sizes that are greater than 1000 mm two additional height adjustable supports are required to prevent tilting All 4 corners have a support to prevent slipping and to protect against a collision Doors can be locked Technical Data For plate sizes Height Order no. mm mm 630 x 400 4221560 630 x 630 4221561 800 x 500 4221562 1000 x 630 900 - 1000 4221563 1200 x 800 4221564 1500 x 1000 4221565 2000 x 1000 4221566 Excludes surface plate Stand 107 Ug Features Extremely sturdy design due to the rectangular tubes With three height adjustable supports For plates sizes that are greater than 1000 mm two additional height adjustable supports are required to prevent tilting All 4 corners have a support to prevent slipping and to protect against a collision Technical Data For plate sizes Height Order no. mm mm 630 x 400 4221570 630 x 630 4221571 800 x 500 4221572 1000 x 630 900 - 1000 4221573 1200 x 800 4221574 1500 x 1000 4221575 2000 x 1000 4221576 Excludes surface plate
