356 Каталог MAHR 2007 Линейно-угловые средства измерений Измерительный инструмент Стр.12-4

Каталог MAHR 2007 Линейно-угловые средства измерений Стр. 12-4 0356 ENG Lab2u

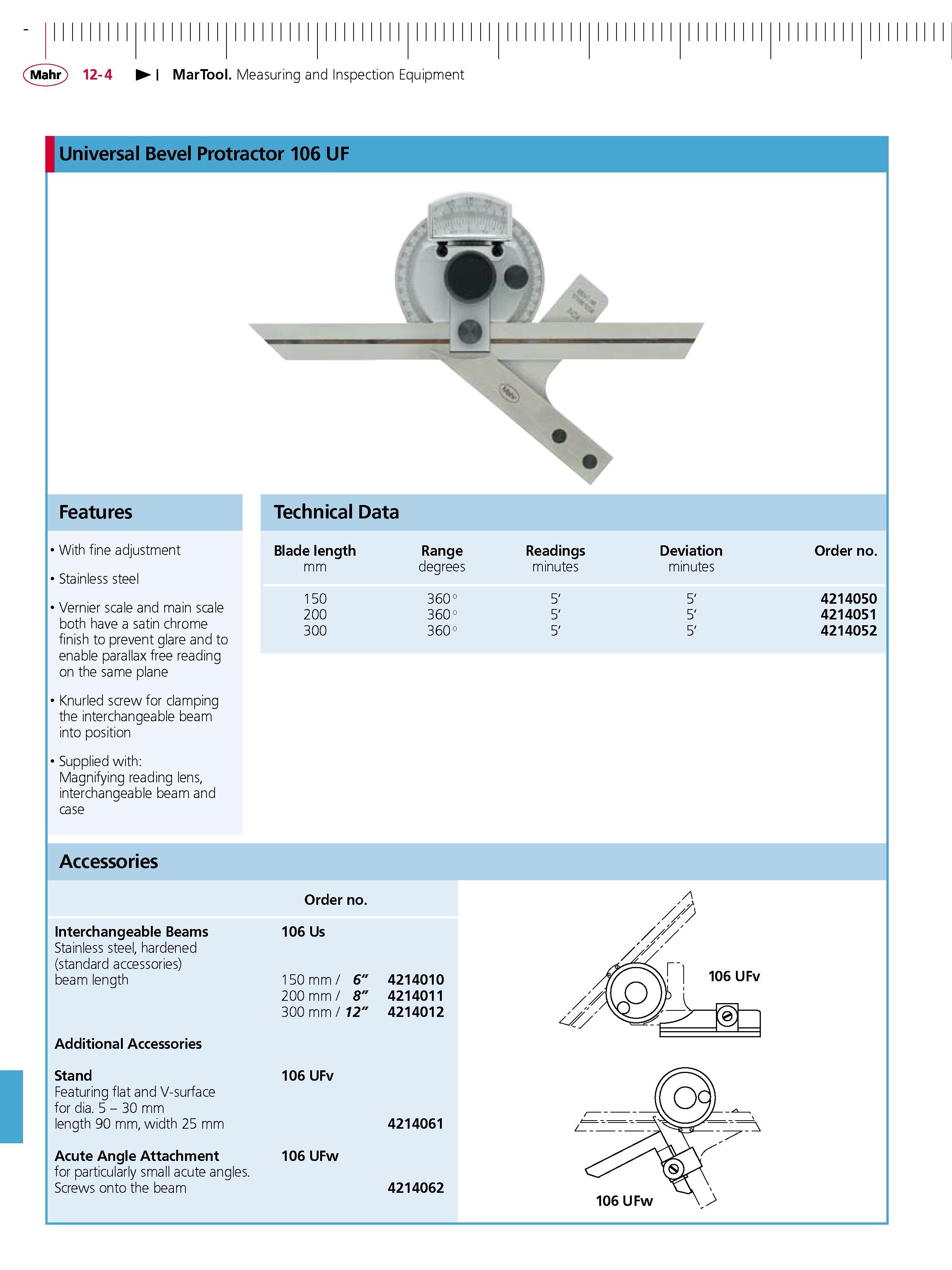

MarTool. Measuring and Inspection Equipment Universal Bevel Protractor 106 UF Features With fine adjustment Stainless steel Vernier scale and main scale both have a satin chrome finish to prevent glare and to enable parallax free reading on the same plane Knurled screw for clamping the interchangeable beam into position Supplied with Magnifying reading lens interchangeable beam and case Technical Data Blade length Range Readings Deviation Order no. mm degrees minutes minutes 150 360 o 5' 5' 4214050 200 360 o 5' 5' 4214051 300 360 o 5' 5' 4214052 Accessories Interchangeable Beams Stainless steel hardened (standard accessories) beam length Additional Accessories Stand Featuring flat and V-surface for dia. 5 - 30 mm length 90 mm width 25 mm Acute Angle Attachment for particularly small acute angles. Screws onto the beam Order no. 106 Us 150 mm 6" 200 mm 8" 300 mm 12" 106 UFv 106 UFw 4214010 4214011 4214012 4214061 4214062
