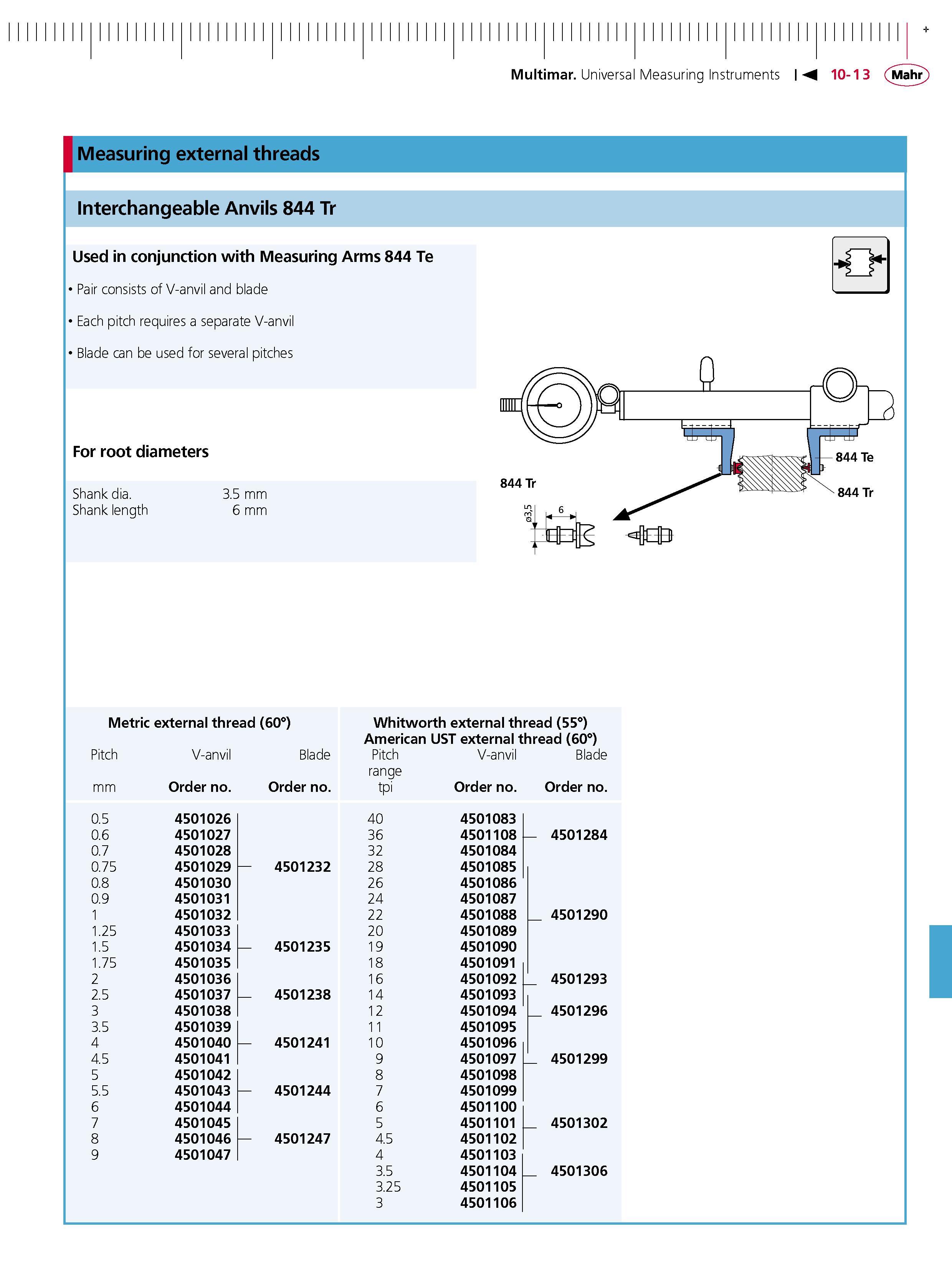

Multimar. Universal Measuring Instruments Mahr Measuring external threads Interchangeable Anvils 844 Tr Used in conjunction with Measuring Arms 844 Te Pair consists of V-anvil and blade Each pitch requires a separate V-anvil Blade can be used for several pitches For root diameters Shank dia. Shank length 3.5 mm 6 mm Metric external thread (60) Whitworth external thread (55) American UST external thread (60) Pitch V-anvil Blade Pitch V-anvil Blade range mm Order no. Order no. tpi Order no. Order no. 0.5 4501026 40 4501083 0.6 4501027 36 4501108 - 4501284 0.7 4501028 32 4501084 0.75 4501029 - 4501232 28 4501085 0.8 4501030 26 4501086 0.9 4501031 24 4501087 1 4501032 22 4501088 4501290 1.25 4501033 20 4501089 1.5 4501034 - 4501235 19 4501090 1.75 4501035 18 4501091 2 4501036 16 4501092 4501293 2.5 4501037 - 4501238 14 4501093 3 4501038 12 4501094 4501296 3.5 4501039 11 4501095 4 4501040 - 4501241 10 4501096 4.5 4501041 9 4501097 4501299 5 4501042 8 4501098 5.5 4501043 - 4501244 7 4501099 6 4501044 6 4501100 7 4501045 5 4501101 4501302 8 4501046 - 4501247 4.5 4501102 9 4501047 4 4501103 3.5 4501104 4501306 3.25 4501105 3 4501106
