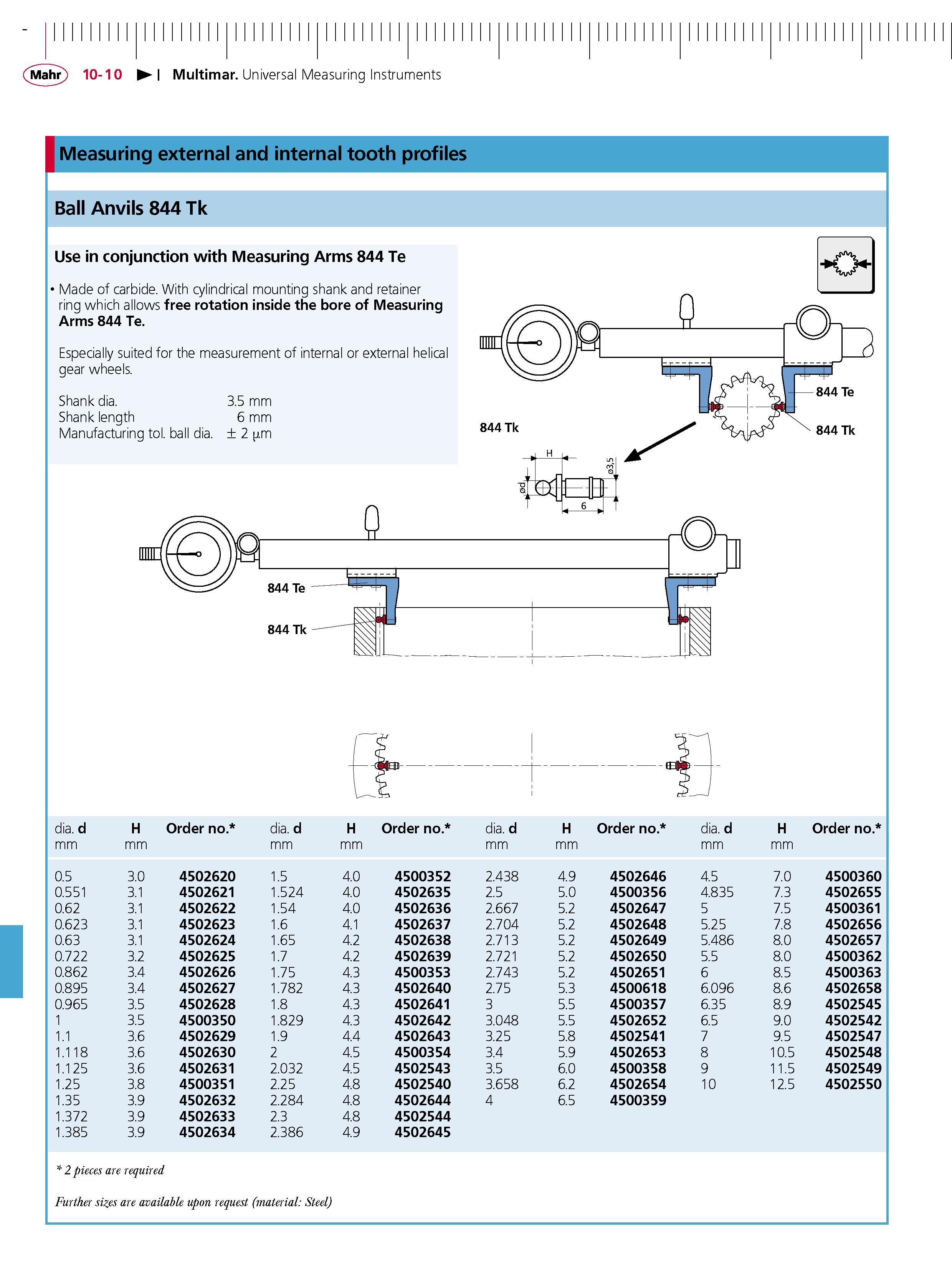

Multimar. Universal Measuring Instruments Measuring external and internal tooth profiles Ball Anvils 844 Tk Use in conjunction with Measuring Arms 844 Te Made of carbide. With cylindrical mounting shank and retainer ring which allows free rotation inside the bore of Measuring Arms 844 Te. Especially suited for the measurement of internal or external helical gear wheels. Shank dia. 3.5 mm Shank length 6 mm Manufacturing tol. ball dia. 2 m dia. d H Order no. dia. d H Order no. dia. d H Order no. dia. d H Order no. mm mm mm mm mm mm mm mm 0.5 3.0 4502620 1.5 4.0 4500352 2.438 4.9 4502646 4.5 7.0 4500360 0.551 3.1 4502621 1.524 4.0 4502635 2.5 5.0 4500356 4.835 7.3 4502655 0.62 3.1 4502622 1.54 4.0 4502636 2.667 5.2 4502647 5 7.5 4500361 0.623 3.1 4502623 1.6 4.1 4502637 2.704 5.2 4502648 5.25 7.8 4502656 0.63 3.1 4502624 1.65 4.2 4502638 2.713 5.2 4502649 5.486 8.0 4502657 0.722 3.2 4502625 1.7 4.2 4502639 2.721 5.2 4502650 5.5 8.0 4500362 0.862 3.4 4502626 1.75 4.3 4500353 2.743 5.2 4502651 6 8.5 4500363 0.895 3.4 4502627 1.782 4.3 4502640 2.75 5.3 4500618 6.096 8.6 4502658 0.965 3.5 4502628 1.8 4.3 4502641 3 5.5 4500357 6.35 8.9 4502545 1 3.5 4500350 1.829 4.3 4502642 3.048 5.5 4502652 6.5 9.0 4502542 1.1 3.6 4502629 1.9 4.4 4502643 3.25 5.8 4502541 7 9.5 4502547 1.118 3.6 4502630 2 4.5 4500354 3.4 5.9 4502653 8 10.5 4502548 1.125 3.6 4502631 2.032 4.5 4502543 3.5 6.0 4500358 9 11.5 4502549 1.25 3.8 4500351 2.25 4.8 4502540 3.658 6.2 4502654 10 12.5 4502550 1.35 3.9 4502632 2.284 4.8 4502644 4 6.5 4500359 1.372 3.9 4502633 2.3 4.8 4502544 1.385 3.9 4502634 2.386 4.9 4502645 2 pieces are required Further sizes are available upon request (material Steel)
