NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|
537 Каталог NORGAU 2014 Инструменты Оборудование Стр.521 |
|||||

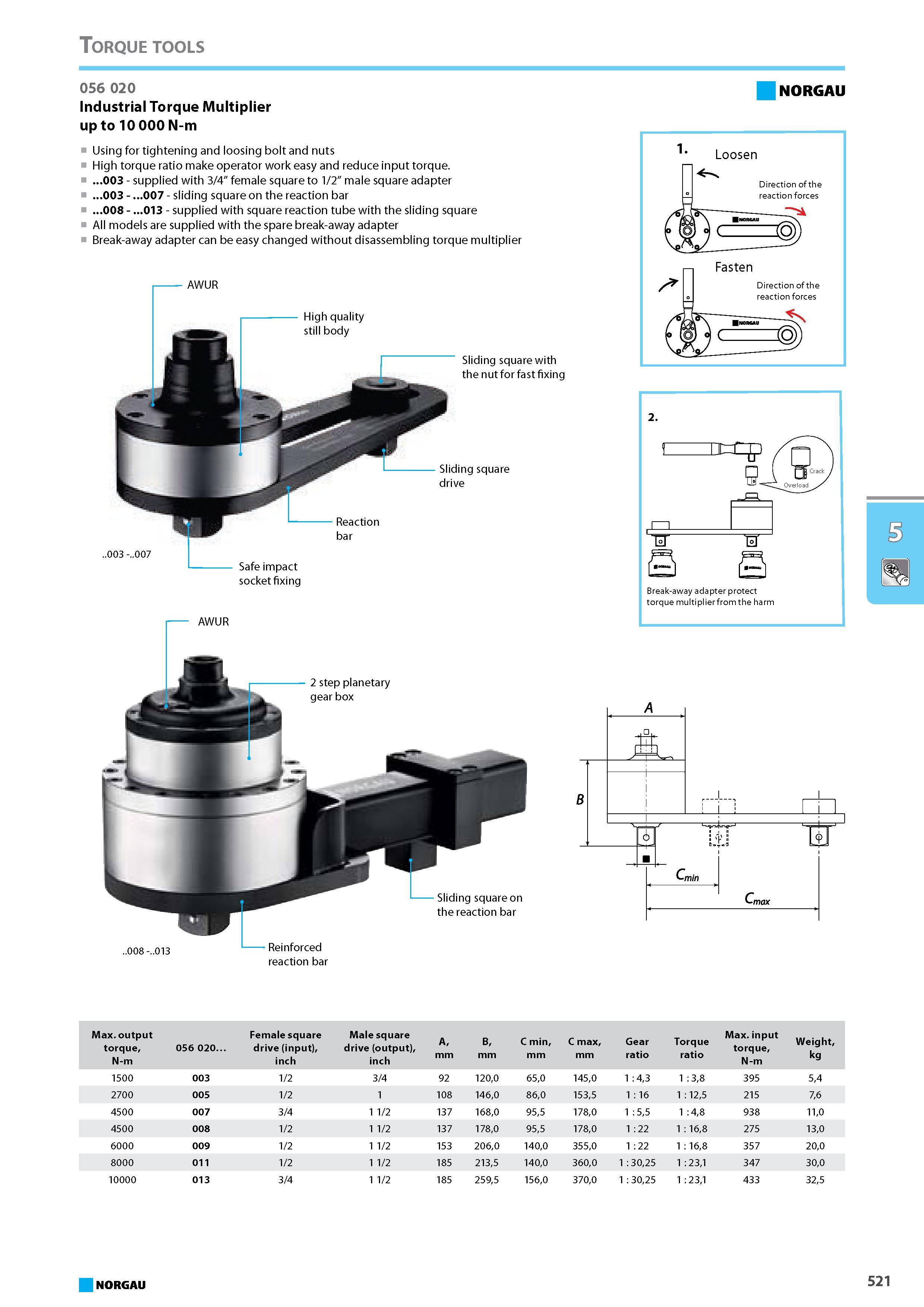

Industrial Torque Multiplier up to 10 000 N-m Using for tightening and loosing bolt and nuts High torque ratio make operator work easy and reduce input torque. 003 - sIndustrial Torque Multiplier up to 10 000 N-m Using for tightening and loosing bolt and nuts High torque ratio make operator work easy and reduce input torque. 003 - supplied with 3 4 female square to 1 2 male square adapter 003 - 007 - sliding square on the reaction bar 008 - 013 - supplied with square reaction tube with the sliding square All models are supplied with the spare break-away adapter Break-away adapter can be easy changed without disassembling torque multiplier NORGAU AWUR High quality still body Sliding square with the nut for fast fixing Sliding square drive Reaction bar ..003 -..007 Safe impact socket fixing AWUR 2 step planetary gear box GJ Sliding square on the reaction bar Cmin Reinforced reaction bar ..008 -..013 NORGAU 521 Torque tools 056 020 |
|||||
