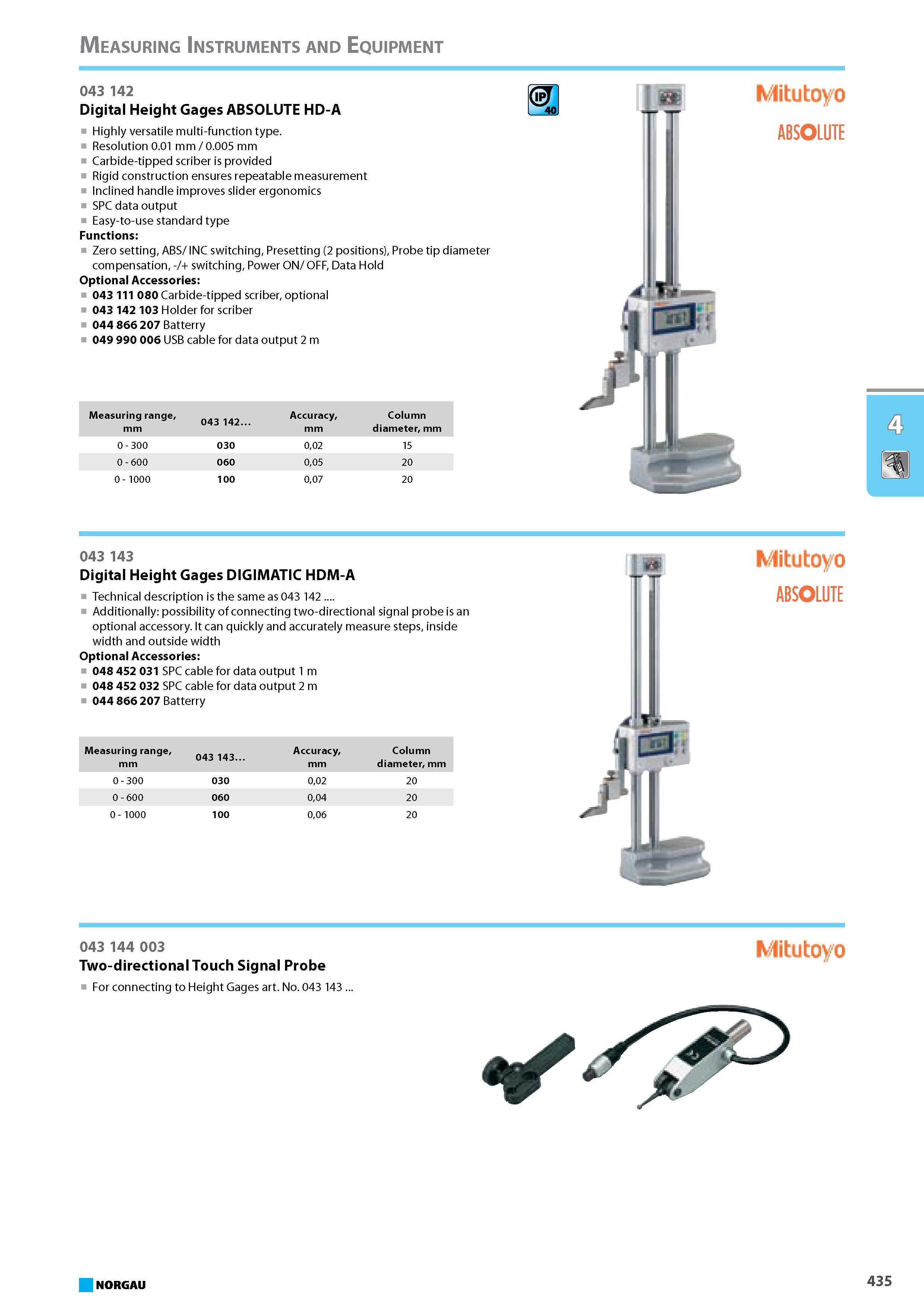

Digital Height Gages ABSOLUTE HD-A Highly versatile multi-function type Resolution 0.01 mm 0.005 mm Carbide-tipped scriber is provided Rigid construction ensures repea

Digital Height Gages ABSOLUTE HD-A Highly versatile multi-function type Resolution 0.01 mm 0.005 mm Carbide-tipped scriber is provided Rigid construction ensures repeatable measurement Inclined handle improves slider ergonomics SPC data output Easy-to-use standard type Functions Zero setting ABS INC switching Presetting (2 positions) Probe tip diameter compensation - switching Power ON OFF Data Hold Optional Accessories 043 111 080 Carbide-tipped scriber optional 043 142 103 Holder for scriber 044 866 207 Batterry 049 990 006 USB cable for data output 2 m Measuring range mm 043 142. Accuracy mm Column diameter mm 0 - 300 030 002 15 0 - 600 060 005 20 0 - 1000 100 007 20 043 143 Digital Height Gages DIGIMATIC HDM-A Technical description is the same as 043 142 Additionally possibility of connecting two-directional signal probe is an optional accessory. It can quickly and accurately measure steps inside width and outside width Optional Accessories 048 452 031 SPC cable for data output 1 m 048 452 032 SPC cable for data output 2 m 044 866 207 Batterry Measuring range mm 043 143. Accuracy mm Column diameter mm 0 - 300 030 002 20 0 - 600 060 004 20 0 - 1000 100 006 20 043 144 003 Two-directional Touch Signal Probe For connecting to Height Gages art. No. 043 143 NORGAU 435 Measuring Instruments and Equipment 043 142
