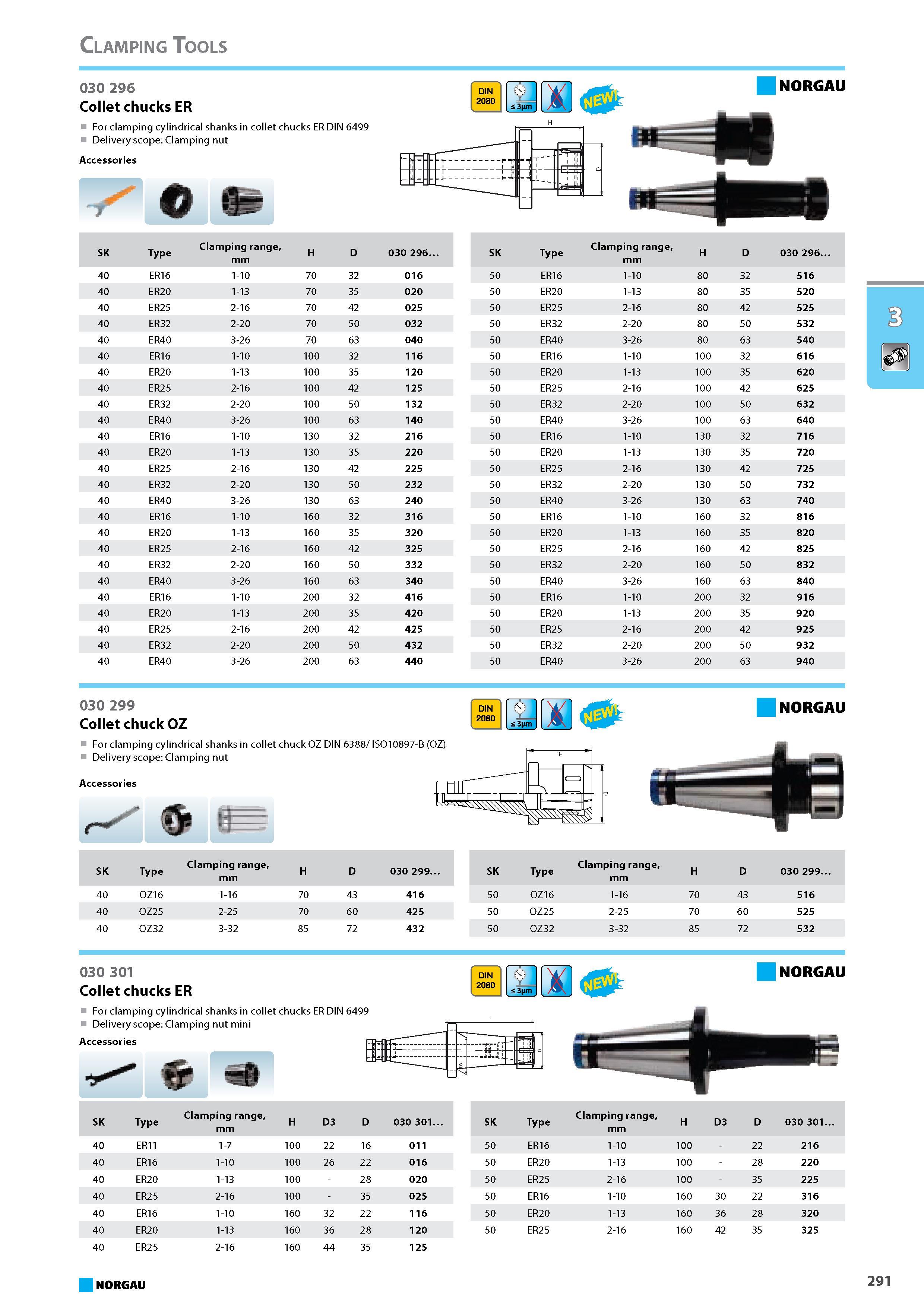

Collet chucks ER For clamping cylindrical shanks in collet chucks ER DIN 6499 Delivery scope Clamping nut Accessories Fjl SK Type Clamping range mm H D 030 296. 40 ER1

Collet chucks ER For clamping cylindrical shanks in collet chucks ER DIN 6499 Delivery scope Clamping nut Accessories Fjl SK Type Clamping range mm H D 030 296. 40 ER16 1-10 70 32 016 40 ER20 1-13 70 35 020 40 ER25 2-16 70 42 025 40 ER32 2-20 70 50 032 40 ER40 3-26 70 63 040 40 ER16 1-10 100 32 116 40 ER20 1-13 100 35 120 40 ER25 2-16 100 42 125 40 ER32 2-20 100 50 132 40 ER40 3-26 100 63 140 40 ER16 1-10 130 32 216 40 ER20 1-13 130 35 220 40 ER25 2-16 130 42 225 40 ER32 2-20 130 50 232 40 ER40 3-26 130 63 240 40 ER16 1-10 160 32 316 40 ER20 1-13 160 35 320 40 ER25 2-16 160 42 325 40 ER32 2-20 160 50 332 40 ER40 3-26 160 63 340 40 ER16 1-10 200 32 416 40 ER20 1-13 200 35 420 40 ER25 2-16 200 42 425 40 ER32 2-20 200 50 432 40 ER40 3-26 200 63 440 DIN 2080 3nm si NORGAU SK Type Clamping range mm H D 030 296 50 ER16 1-10 80 32 516 50 ER20 1-13 80 35 520 50 ER25 2-16 80 42 525 50 ER32 2-20 80 50 532 50 ER40 3-26 80 63 540 50 ER16 1-10 100 32 616 50 ER20 1-13 100 35 620 50 ER25 2-16 100 42 625 50 ER32 2-20 100 50 632 50 ER40 3-26 100 63 640 50 ER16 1-10 130 32 716 50 ER20 1-13 130 35 720 50 ER25 2-16 130 42 725 50 ER32 2-20 130 50 732 50 ER40 3-26 130 63 740 50 ER16 1-10 160 32 816 50 ER20 1-13 160 35 820 50 ER25 2-16 160 42 825 50 ER32 2-20 160 50 832 50 ER40 3-26 160 63 840 50 ER16 1-10 200 32 916 50 ER20 1-13 200 35 920 50 ER25 2-16 200 42 925 50 ER32 2-20 200 50 932 50 ER40 3-26 200 63 940 030 299 Collet chuck OZ For clamping cylindrical shanks in collet chuck OZ DIN 6388 ISO10897-B (OZ) Delivery scope Clamping nut & DIN 2080 BO SK Type Clamping range mm H D 030 299. 40 OZ16 1-16 70 43 416 40 OZ25 2-25 70 60 425 40 OZ32 3-32 85 72 432 NORGAU SK Type Clamping range mm H D 030 299 50 OZ16 1-16 70 43 516 50 OZ25 2-25 70 60 525 50 OZ32 3-32 85 72 532 030 301 Collet chucks ER For clamping cylindrical shanks in collet chucks ER DIN 6499 Delivery scope Clamping nut mini Accessories DIN 2080 BO SK Type Clamping range mm H D3 D 030 301. 40 ER11 1-7 100 22 16 011 40 ER16 1-10 100 26 22 016 40 ER20 1-13 100 - 28 020 40 ER25 2-16 100 - 35 025 40 ER16 1-10 160 32 22 116 40 ER20 1-13 160 36 28 120 40 ER25 2-16 160 44 35 125 - J -r-Erry '71 yjjjji - i-itii J y NORGAU SK Type Clamping range mm H D3 D 030 301 50 ER16 1-10 100 - 22 216 50 ER20 1-13 100 - 28 220 50 ER25 2-16 100 - 35 225 50 ER16 1-10 160 30 22 316 50 ER20 1-13 160 36 28 320 50 ER25 2-16 160 42 35 325 NORGAU 291 H Clamping Tools 030 296
