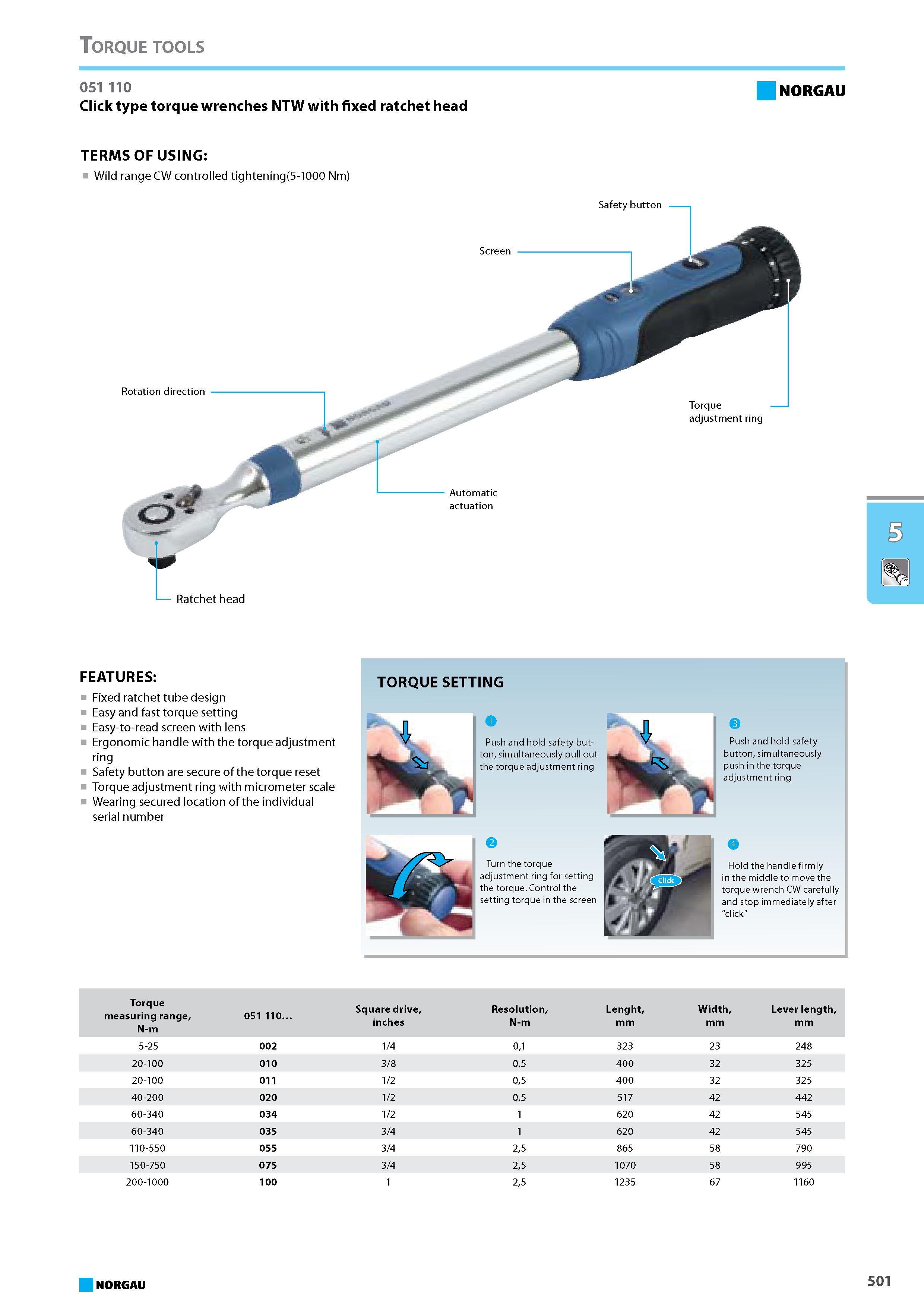

Click type torque wrenches NTW with fixed ratchet head NORGAU TERMS OF USING Wild rangeCW controlled tightening(5-1000 Nm) Safety button Screen Rotation direction t Au

Click type torque wrenches NTW with fixed ratchet head NORGAU TERMS OF USING Wild rangeCW controlled tightening(5-1000 Nm) Safety button Screen Rotation direction t Automatic actuation Torque adjustment ring Ratchet head FEATURES Fixed ratchet tube design Easy and fast torque setting Easy-to-read screen with lens Ergonomic handle with the torque adjustment ring Safety button are secure of the torque reset Torque adjustment ring with micrometer scale Wearing secured location of the individual serial number TORQUE SETTING Push and hold safety button simultaneously pull out the torque adjustment ring Turn the torque adjustment ring for setting the torque. Control the setting torque in the screen Push and hold safety button simultaneously push in the torque adjustment ring Hold the handle firmly in the middle to move the torque wrench CW carefully and stop immediately after "click" Torque measuring range N-m 051 110 Square drive inches Resolution N-m Lenght mm Width mm Lever length mm 5-25 002 1 4 01 323 23 248 20-100 010 3 8 05 400 32 325 20-100 011 1 2 05 400 32 325 40-200 020 1 2 05 517 42 442 60-340 034 1 2 1 620 42 545 60-340 035 3 4 1 620 42 545 110-550 055 3 4 25 865 58 790 150-750 075 3 4 25 1070 58 995 200-1000 100 1 25 1235 67 1160 NORGAU 501 Torque tools 051 110
