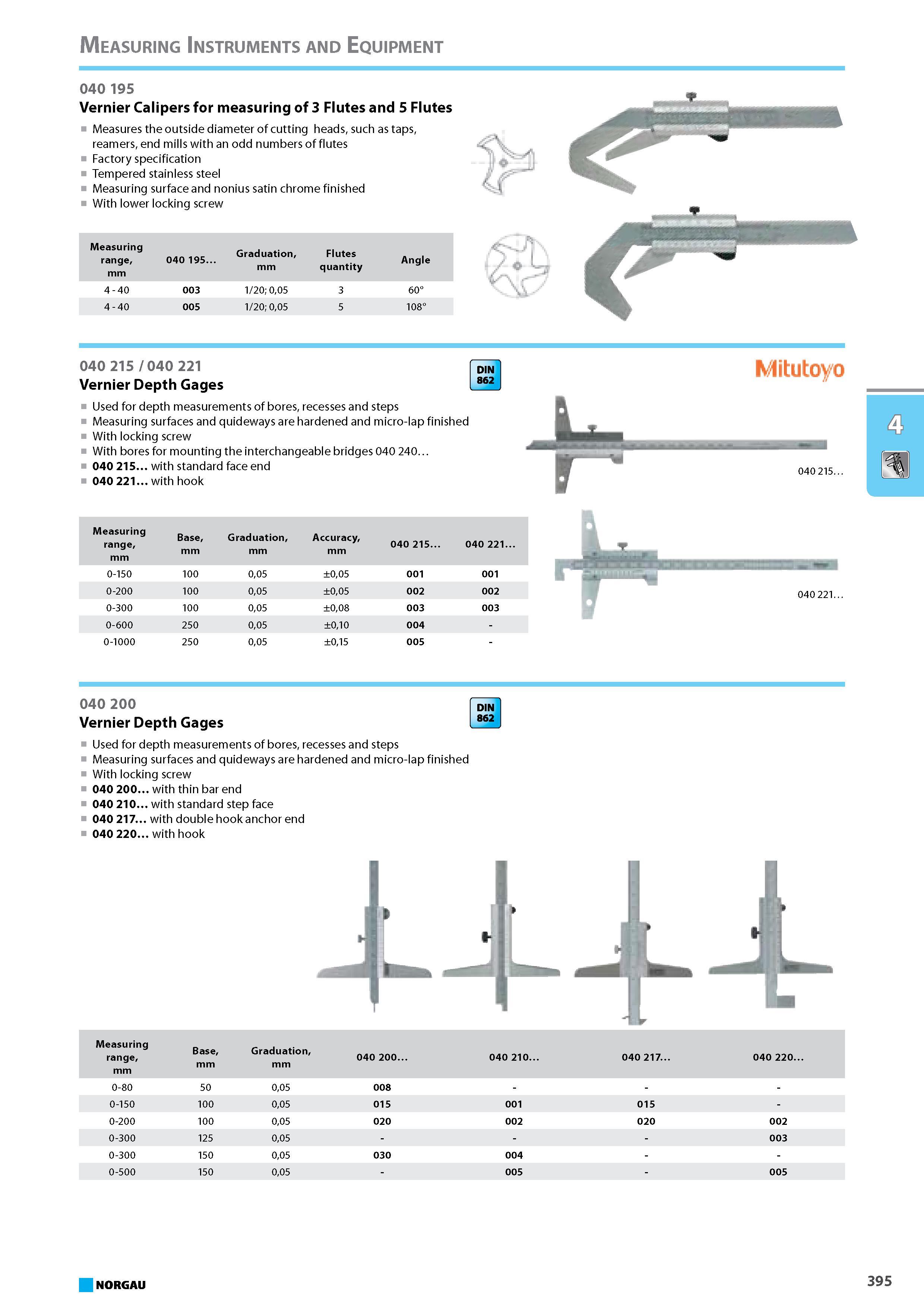

Vernier Calipers for measuring of 3 Flutes and 5 Flutes Measures the outside diameter of cutting heads such as taps reamers end mills with an odd numbers of flutes Fac

Vernier Calipers for measuring of 3 Flutes and 5 Flutes Measures the outside diameter of cutting heads such as taps reamers end mills with an odd numbers of flutes Factory specification Tempered stainless steel Measuring surface and nonius satin chrome finished With lower locking screw Measuring range mm 040 195. Graduation mm Flutes quantity Angle 4 - 40 003 1 20 005 3 60 4 - 40 005 1 20 005 5 108 040 215 040 221 Vernier Depth Gages Used for depth measurements of bores recesses and steps Measuring surfaces and quideways are hardened and micro-lap finished With locking screw With bores for mounting the interchangeable bridges 040 240 040 215. with standard face end 040 221. with hook Measuring range mm Base mm Graduation mm Accuracy mm 040 215. 040 221. 0-150 100 005 005 001 001 0-200 100 005 005 002 002 0-300 100 005 008 003 003 0-600 250 005 010 004 - 0-1000 250 005 015 005 040 200 Vernier Depth Gages Used for depth measurements of bores recesses and steps Measuring surfaces and quideways are hardened and micro-lap finished With locking screw 040 200 with thin bar end 040 210 with standard step face 040 217 with double hookanchor end 040 220 with hook Measuring range mm Base mm Graduation mm 040 200. 040 210. 040 217. 040 220. 0-80 50 005 008 - 0-150 100 005 015 001 015 - 0-200 100 005 020 002 020 002 0-300 125 005 - 003 0-300 150 005 030 004 0-500 150 005 - 005 - 005 NORGAU 395 Measuring Instruments and Equipment 040 195
