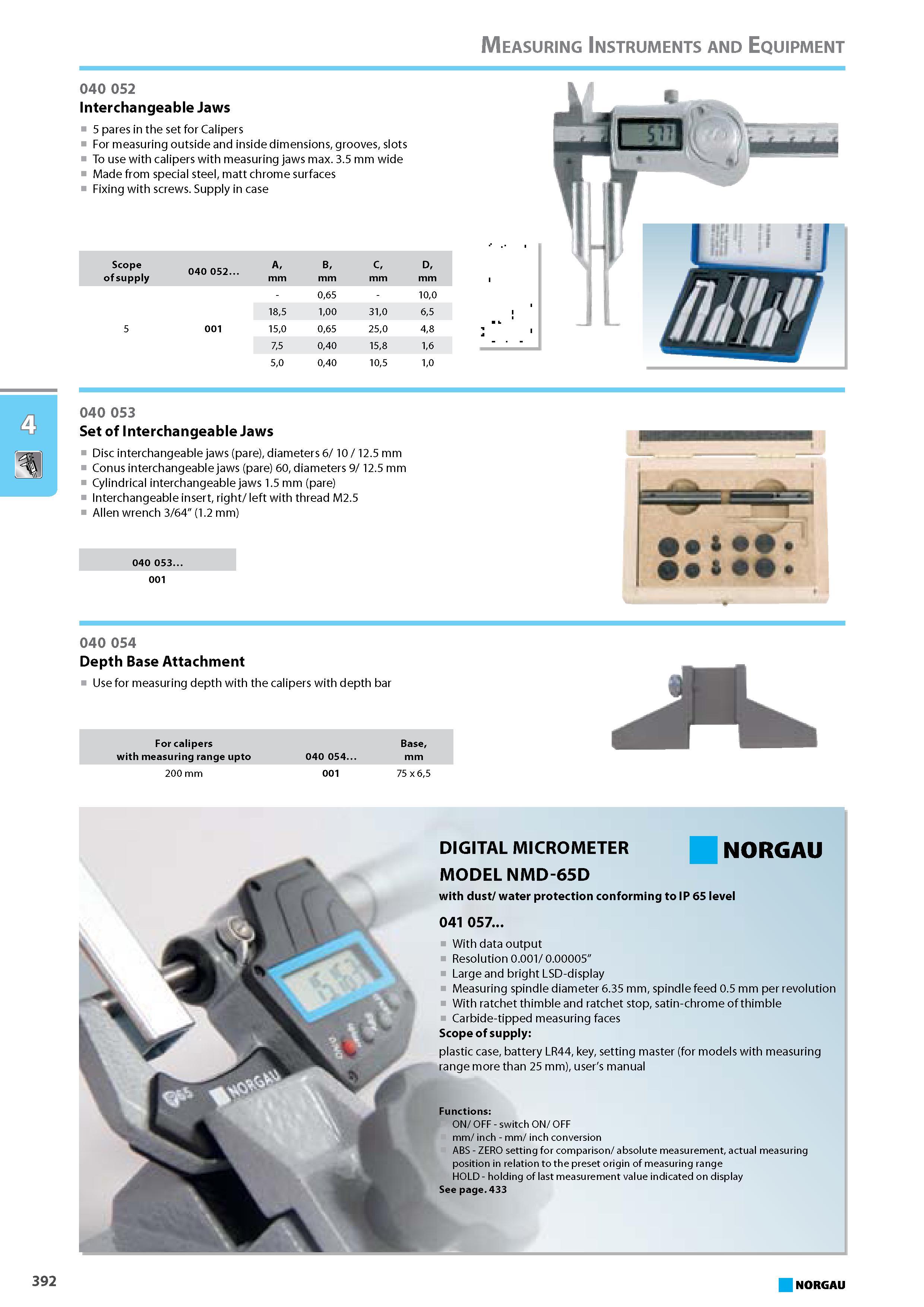

Interchangeable Jaws 5 pares in the set for Calipers For measuring outside and inside dimensions grooves slots To use with calipers with measuring jaws max. 3.5 mm wid

Interchangeable Jaws 5 pares in the set for Calipers For measuring outside and inside dimensions grooves slots To use with calipers with measuring jaws max. 3.5 mm wide Made from special steel matt chrome surfaces Fixing with screws. Supply in case Scope 040 052. A B C D of supply mm - 065 - 100 185 100 310 65 5 001 150 065 250 48 75 040 158 16 50 040 105 10 040 053 Set of Interchangeable Jaws Disc interchangeable jaws (pare) diameters 6 10 12.5 mm Conus interchangeable jaws (pare) 60 diameters 9 12.5 mm Cylindrical interchangeable jaws 1.5 mm (pare) Interchangeable insert right left with thread M2.5 Allen wrench 3 64 (1.2 mm) 040 053 001 040 054 Depth Base Attachment Use for measuring depth with the calipers with depth bar For calipers Base with measuring range upto 040 054. mm 200 mm 001 75 x 65 DIGITAL MICROMETER NORGAU MODEL NMD-65D with dust water protection conforming to IP 65 level 041 057 With data output Resolution 0.001 0.00005 Large and bright LSD-display Measuring spindle diameter 6.35 mm spindle feed 0.5 mm per revolution With ratchet thimble and ratchet stop satin-chrome of thimble Carbide-tipped measuring faces Scope of supply plastic case battery LR44 key setting master (for models with measuring range more than 25 mm) user's manual Functions ON OFF - switch ON OFF mm inch - mm inch conversion ABS - ZERO setting for comparison absolute measurement actual measuring position in relation to the preset origin of measuring range HOLD - holding of last measurement value indicated on display See page. 433 NORGAU Measuring Instruments and Equipment 392 040 052
