575 Каталог NORGAU 2014 Инструменты Оборудование Стр.559 |
|||||

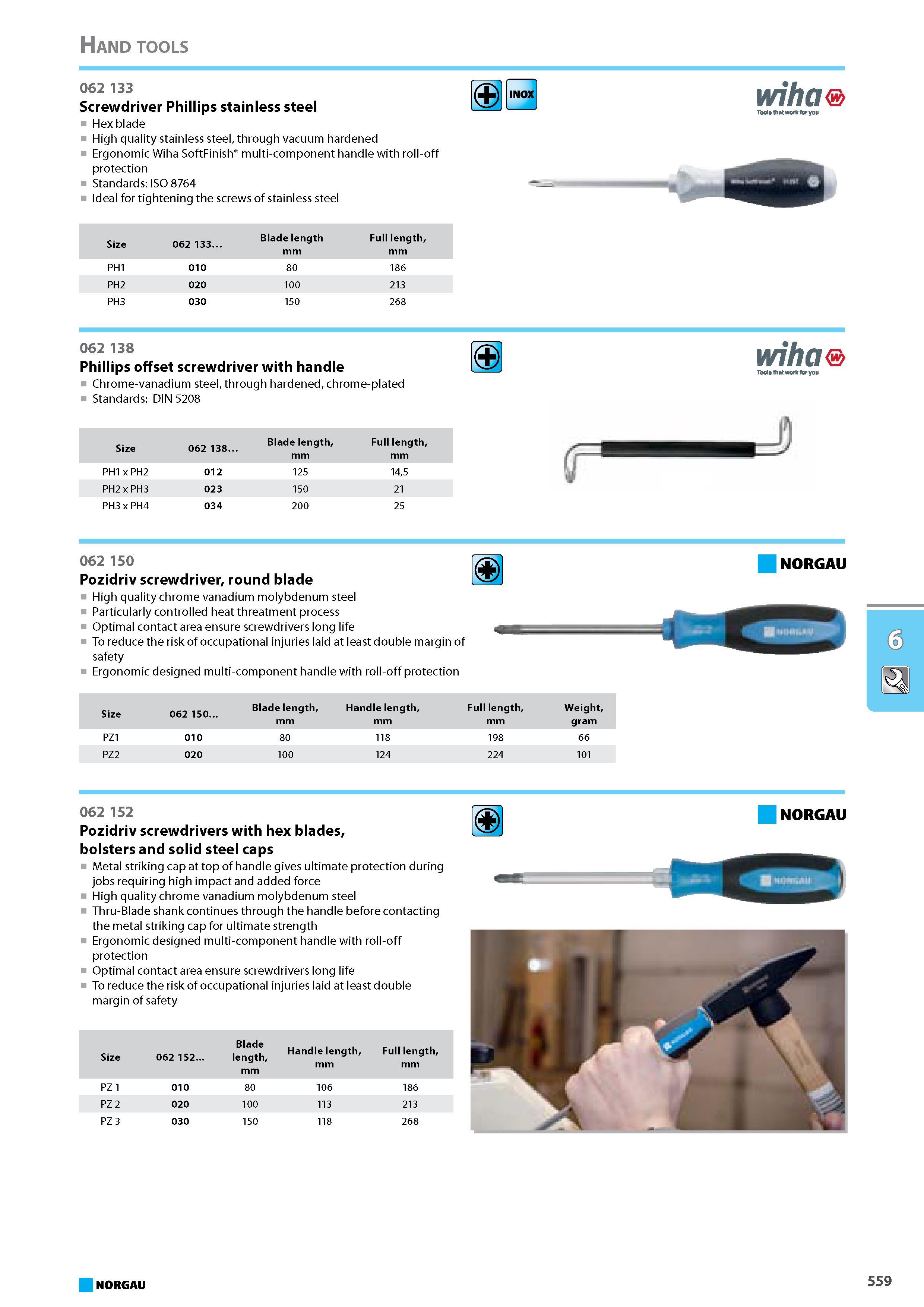

Screwdriver Phillips stainless steel Hex blade High quality stainless steel through vacuum hardened Ergonomic Wiha SoftFinish multi-component handle with roll-off protScrewdriver Phillips stainless steel Hex blade High quality stainless steel through vacuum hardened Ergonomic Wiha SoftFinish multi-component handle with roll-off protection Standards ISO 8764 Ideal for tightening the screws of stainless steel INOX wiha Tool that work for you Size 062 133. Blade length Full length mm PH1 010 80 186 PH2 020 100 213 PH3 030 150 268 062 138 Phillips offset screwdriver with handle Chrome-vanadium steel through hardened chrome-plated Standards DIN 5208 Size 062 138. Blade length Full length mm PH1 x PH2 012 125 145 PH2 x PH3 023 150 21 PH3 x PH4 034 200 25 wiha Toola that work for you 062 150 Pozidriv screwdriver round blade High quality chrome vanadium molybdenum steel Particularly controlled heat threatment process Optimal contact area ensure screwdrivers long life To reduce the risk of occupational injuries laid at least double margin of safety Ergonomic designed multi-component handle with roll-off protection NORGAU Size 062 150 Blade length Handle length Full length Weight mm gram PZ1 010 80 118 198 66 PZ2 020 100 124 224 101 062 152 Pozidriv screwdrivers with hex blades bolsters and solid steel caps Metal striking cap at top of handle gives ultimate protection during jobs requiring high impact and added force High quality chrome vanadium molybdenum steel Thru-Blade shank continues through the handle before contacting the metal striking cap for ultimate strength Ergonomic designed multi-component handle with roll-off protection Optimal contact area ensure screwdrivers long life To reduce the risk of occupational injuries laid at least double margin of safety Size 062 152 Blade length mm Handle length mm Full length mm PZ 1 010 80 106 186 PZ 2 020 100 113 213 NORGAU PZ 3 030 150 118 268 a NORGAU 559 Hand tools 062 133 |
|||||
