NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|

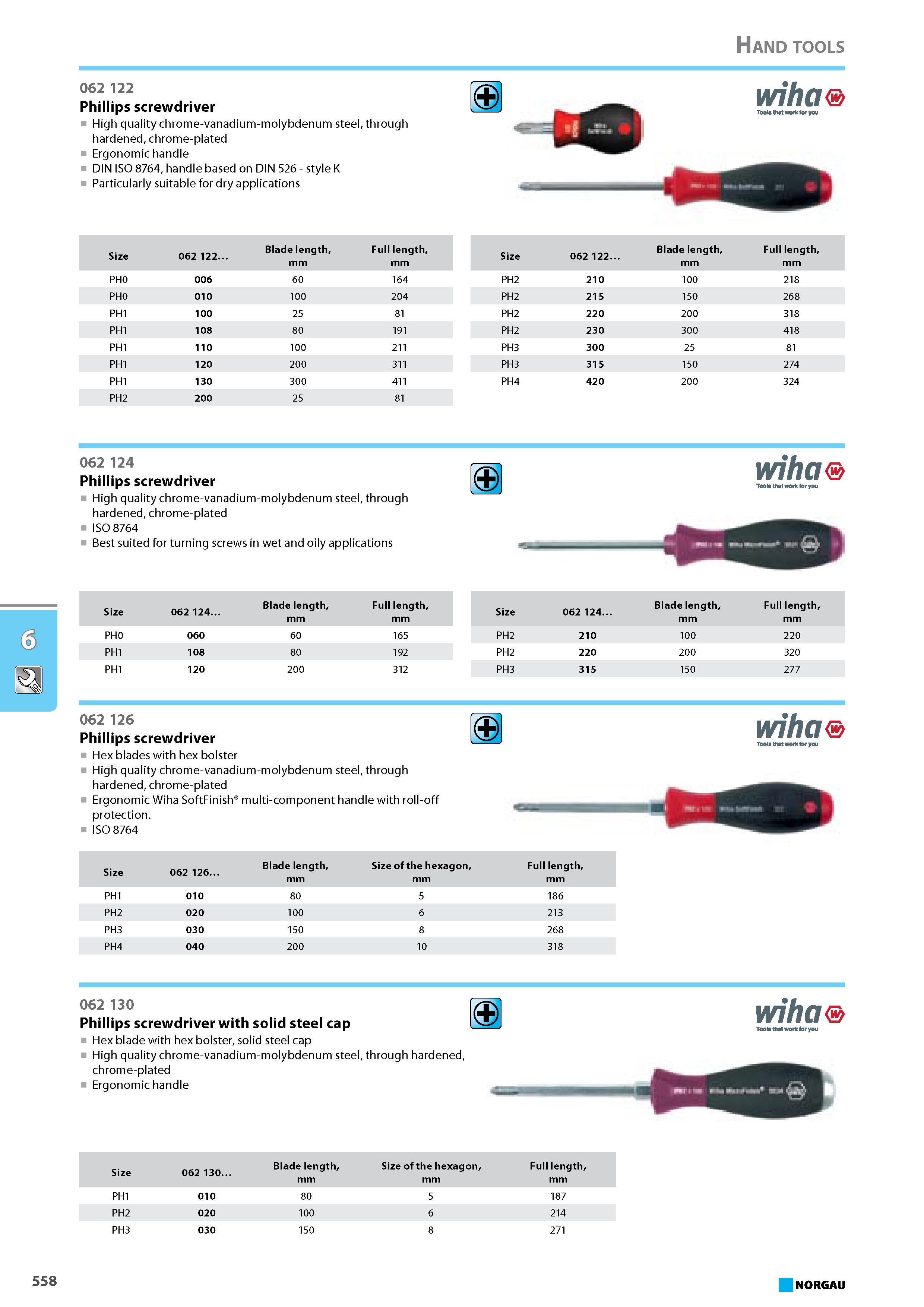

574 Каталог NORGAU 2014 Инструменты Оборудование Стр.558 |
|||||
Phillips screwdriver High quality chrome-vanadium-molybdenum steel through hardened chrome-plated Ergonomic handle DIN ISO 8764 handle based on DIN 526 - style K PartiPhillips screwdriver High quality chrome-vanadium-molybdenum steel through hardened chrome-plated Ergonomic handle DIN ISO 8764 handle based on DIN 526 - style K Particularly suitable for dry applications 062 124 Phillips screwdriver High quality chrome-vanadium-molybdenum steel through hardened chrome-plated ISO 8764 Best suited for turning screws in wet and oily applications wiha Tool that work for you a Size 062 124. Blade length Full length mm PH0 060 60 165 PH1 108 80 192 PH1 120 200 312 Size 062 124. Blade length Full length mm PH2 210 100 220 PH2 220 200 320 PH3 315 150 277 062 126 Phillips screwdriver Hex blades with hex bolster High quality chrome-vanadium-molybdenum steel through hardened chrome-plated Ergonomic Wiha SoftFinish multi-component handle with roll-off protection. ISO 8764 wiha Tools that work for you Size 062 126. Blade length mm Size of the hexagon mm Full length mm PH1 010 80 5 186 PH2 020 100 6 213 PH3 030 150 8 268 PH4 040 200 10 318 062 130 Phillips screwdriver with solid steel cap Hex blade with hex bolster solid steel cap High quality chrome-vanadium-molybdenum steel through hardened chrome-plated Ergonomic handle wiha Tool that work for you Size 062 130. Blade length mm Size of the hexagon mm Full length mm PH1 010 80 5 187 PH2 020 100 6 214 PH3 030 150 8 271 558 NORGAU Hand tools 062 122 |
|||||
