Screw-on shank end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nos

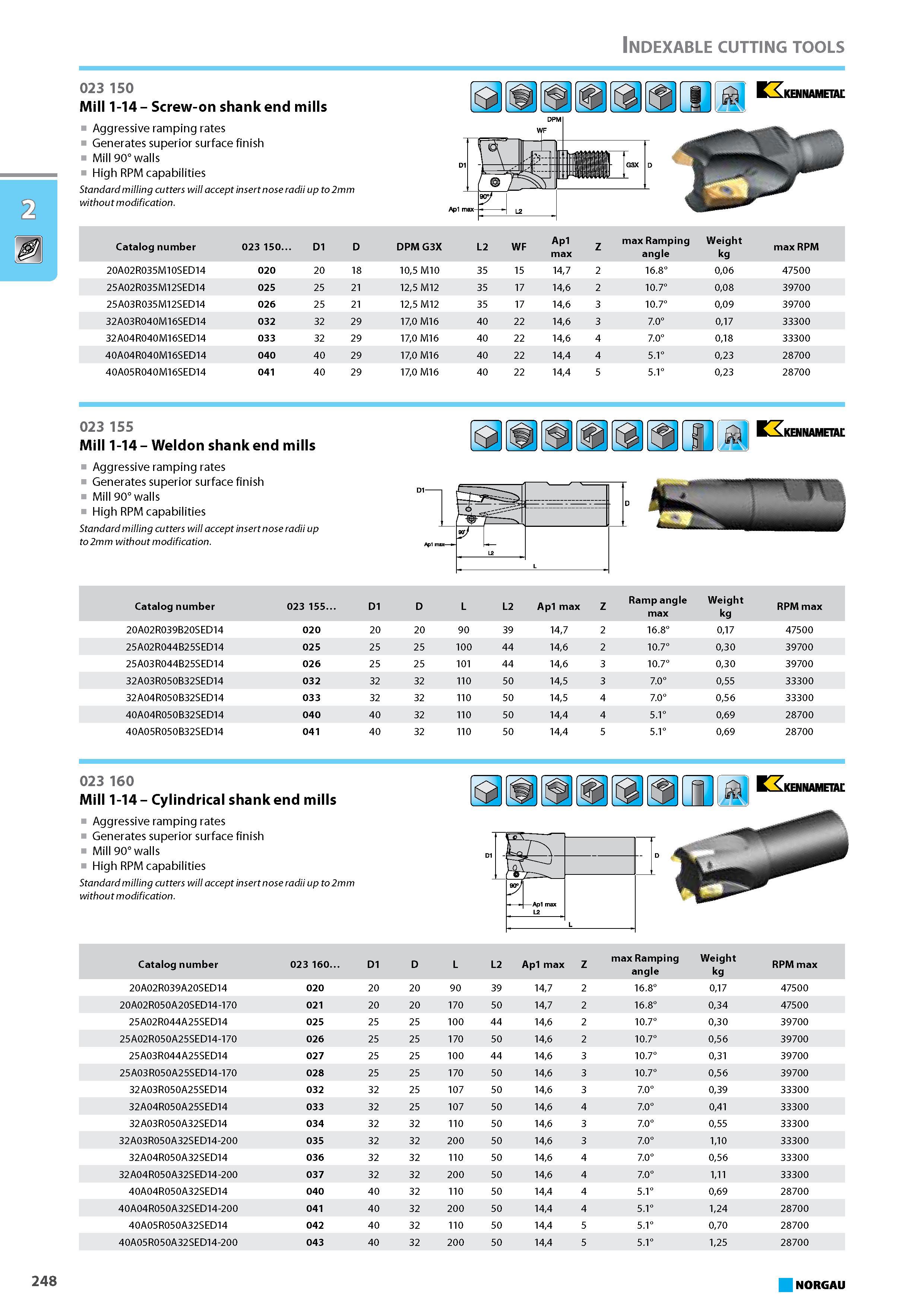

Screw-on shank end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radii up to 2mm without modification. KENNAMETAL Catalog number 023 150. D1 D DPM G3X L2 WF Ap1 max Z max Ramping angle Weight kg max RPM 20A02R035M10SED14 020 20 18 105 M10 35 15 147 2 16.8 006 47500 25A02R035M12SED14 025 25 21 125 M12 35 17 146 2 10.7 008 39700 25A03R035M12SED14 026 25 21 125 M12 35 17 146 3 10.7 009 39700 32A03R040M16SED14 032 32 29 170 M16 40 22 146 3 7.0 017 33300 32A04R040M16SED14 033 32 29 170 M16 40 22 146 4 7.0 018 33300 40A04R040M16SED14 040 40 29 170 M16 40 22 144 4 5.1 023 28700 40A05R040M16SED14 041 40 29 170 M16 40 22 144 5 5.1 023 28700 023 155 Mill 1-14 - Weldon shank end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radii up to 2mm without modification. EH 3 a KENNAMETAL L2 L Catalog number 023 155. D1 D L L2 Ap1 max Z Ramp angle max Weight kg RPM max 20A02R039B20SED14 020 20 20 90 39 147 2 16.8 017 47500 25A02R044B25SED14 025 25 25 100 44 146 2 10.7 030 39700 25A03R044B25SED14 026 25 25 101 44 146 3 10.7 030 39700 32A03R050B32SED14 032 32 32 110 50 145 3 7.0 055 33300 32A04R050B32SED14 033 32 32 110 50 145 4 7.0 056 33300 40A04R050B32SED14 040 40 32 110 50 144 4 5.1 069 28700 40A05R050B32SED14 041 40 32 110 50 144 5 5.1 069 28700 023 160 Mill 1-14 - Cylindrical shank end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radii up to 2mm without modification. Catalog number 023 160. D1 D L L2 Ap1 max Z max Ramping angle Weight kg RPM max 20A02R039A20SED14 020 20 20 90 39 147 2 16.8 017 47500 20A02R050A20SED14-170 021 20 20 170 50 147 2 16.8 034 47500 25A02R044A25SED14 025 25 25 100 44 146 2 10.7 030 39700 25A02R050A25SED14-170 026 25 25 170 50 146 2 10.7 056 39700 25A03R044A25SED14 027 25 25 100 44 146 3 10.7 031 39700 25A03R050A25SED14-170 028 25 25 170 50 146 3 10.7 056 39700 32A03R050A25SED14 032 32 25 107 50 146 3 7.0 039 33300 32A04R050A25SED14 033 32 25 107 50 146 4 7.0 041 33300 32A03R050A32SED14 034 32 32 110 50 146 3 7.0 055 33300 32A03R050A32SED14-200 035 32 32 200 50 146 3 7.0 110 33300 32A04R050A32SED14 036 32 32 110 50 146 4 7.0 056 33300 32A04R050A32SED14-200 037 32 32 200 50 146 4 7.0 111 33300 40A04R050A32SED14 040 40 32 110 50 144 4 5.1 069 28700 40A04R050A32SED14-200 041 40 32 200 50 144 4 5.1 124 28700 40A05R050A32SED14 042 40 32 110 50 144 5 5.1 070 28700 40A05R050A32SED14-200 043 40 32 200 50 144 5 5.1 125 28700 248 NORGAU Indexable cutting tools 023 150 Mill 1-14 -
