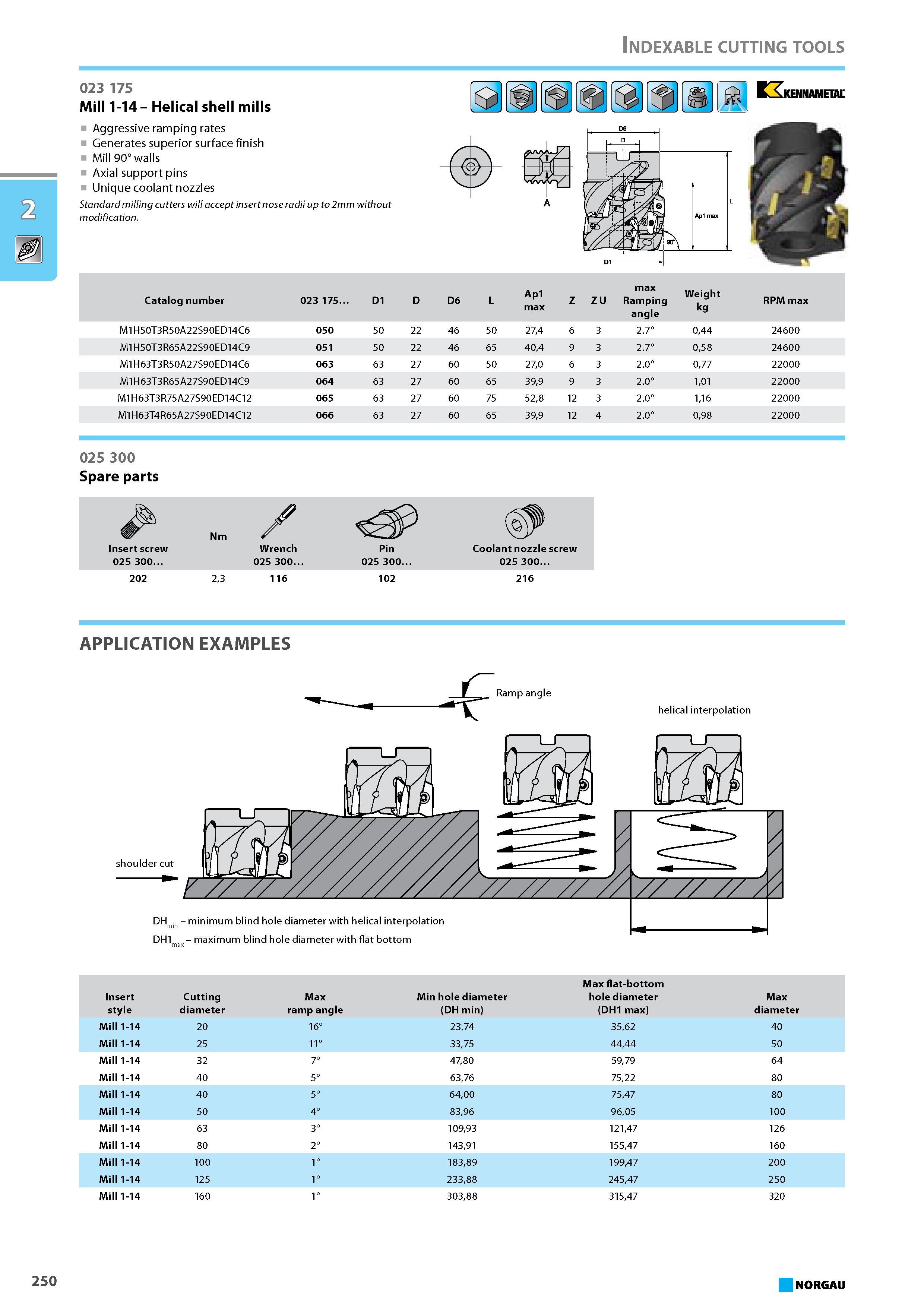

Mill 1-14 Helical shell mills Aggressive ramping rates Generates superior surface finish Mill 90 walls Axial support pins Unique coolant nozzles Standard milling cutters will accept insert nose radii up to 2mm without modification. KENNAMETAL D L J m 9o D1 Catalog number 023 175. D1 D D6 L Ap1 max Z Z U max Ramping angle Weight kg RPM max M1H50T3R50A22S90ED14C6 050 50 22 46 50 274 6 3 2.7 044 24600 M1H50T3R65A22S90ED14C9 051 50 22 46 65 404 9 3 2.7 058 24600 M1H63T3R50A27S90ED14C6 063 63 27 60 50 270 6 3 2.0 077 22000 M1H63T3R65A27S90ED14C9 064 63 27 60 65 399 9 3 2.0 101 22000 M1H63T3R75A27S90ED14C12 065 63 27 60 75 528 12 3 2.0 116 22000 M1H63T4R65A27S90ED14C12 066 63 27 60 65 399 12 4 2.0 098 22000 025 300 Spare parts Nm Wrench 025 300. Coolant nozzle screw 025 300. 23 APPLICATION EXAMPLES f Ramp angle T helical interpolation 202 102 216 250 NORGAU Indexable cutting tools 023 175
