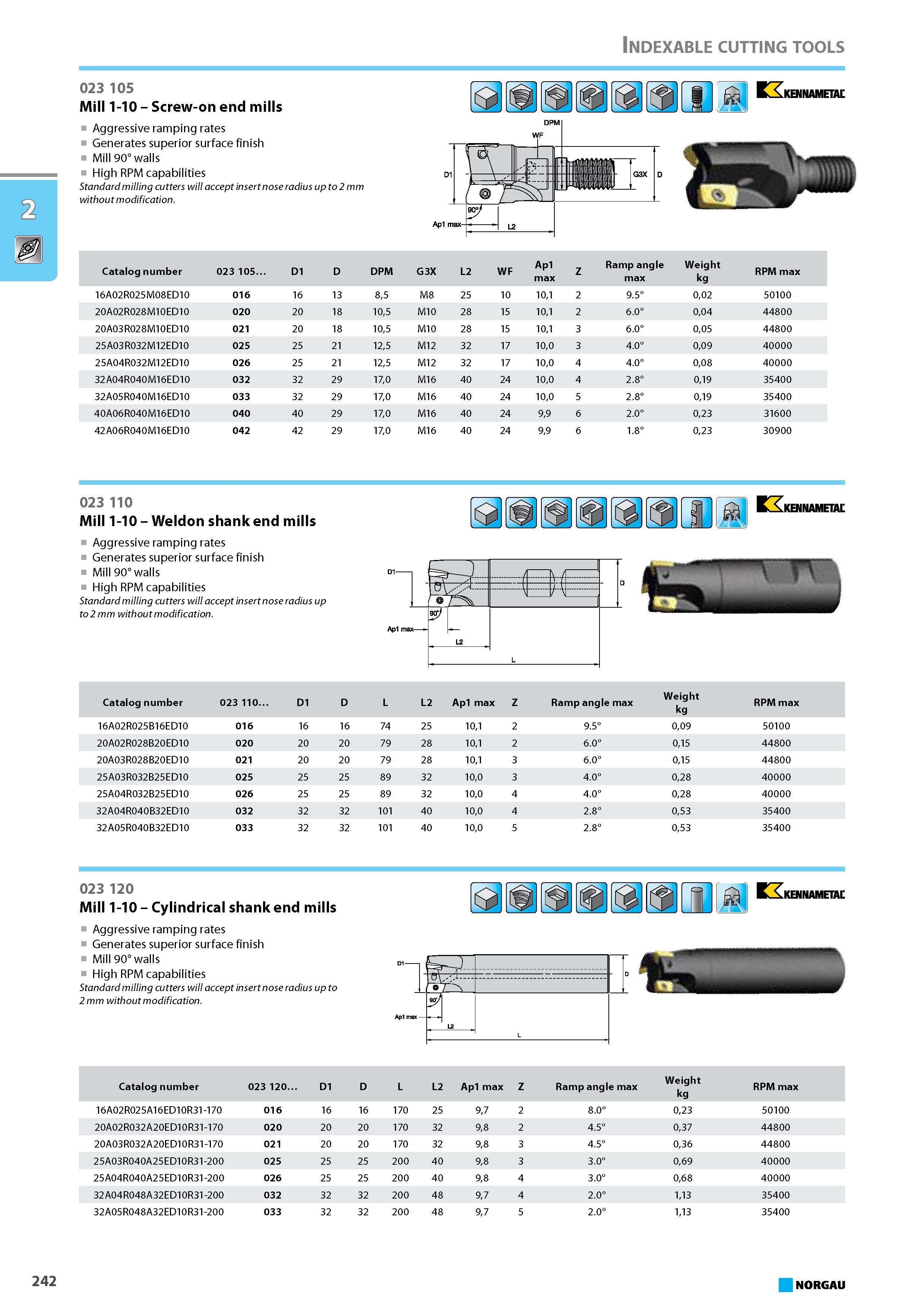

Screw-on end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radi

Screw-on end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radius up to 2 mm without modification. KENNAMETAL Catalog number 023 105. D1 D DPM G3X L2 WF Ap1 max Z Ramp angle max Weight kg RPM max 16A02R025M08ED10 016 16 13 85 M8 25 10 101 2 9.5 002 50100 20A02R028M10ED10 020 20 18 105 M10 28 15 101 2 6.0 004 44800 20A03R028M10ED10 021 20 18 105 M10 28 15 101 3 6.0 005 44800 25A03R032M12ED10 025 25 21 125 M12 32 17 100 3 4.0 009 40000 25A04R032M12ED10 026 25 21 125 M12 32 17 100 4 4.0 008 40000 32A04R040M16ED10 032 32 29 170 M16 40 24 100 4 2.8 019 35400 32A05R040M16ED10 033 32 29 170 M16 40 24 100 5 2.8 019 35400 40A06R040M16ED10 040 40 29 170 M16 40 24 99 6 2.0 023 31600 42A06R040M16ED10 042 42 29 170 M16 40 24 99 6 1.8 023 30900 023 110 Mill 1-10 - Weldon shank end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radius up to 2 mm without modification. P KENNAMETAL Catalog number 023 110. D1 D L L2 Ap1 max Z Ramp angle max Weight kg RPM max 16A02R025B16ED10 016 16 16 74 25 101 2 9.5 009 50100 20A02R028B20ED10 020 20 20 79 28 101 2 6.0 015 44800 20A03R028B20ED10 021 20 20 79 28 101 3 6.0 015 44800 25A03R032B25ED10 025 25 25 89 32 100 3 4.0 028 40000 25A04R032B25ED10 026 25 25 89 32 100 4 4.0 028 40000 32A04R040B32ED10 032 32 32 101 40 100 4 2.8 053 35400 32A05R040B32ED10 033 32 32 101 40 100 5 2.8 053 35400 Catalog number 023 120. D1 D L L2 Ap1 max Z Ramp angle max Weight kg RPM max 16A02R025A16ED10R31-170 016 16 16 170 25 97 2 8.0 023 50100 20A02R032A20ED10R31-170 020 20 20 170 32 98 2 4.5 037 44800 20A03R032A20ED10R31-170 021 20 20 170 32 98 3 4.5 036 44800 25A03R040A25ED10R31-200 025 25 25 200 40 98 3 3.0 069 40000 25A04R040A25ED10R31-200 026 25 25 200 40 98 4 3.0 068 40000 32A04R048A32ED10R31-200 032 32 32 200 48 97 4 2.0 113 35400 32A05R048A32ED10R31-200 033 32 32 200 48 97 5 2.0 113 35400 242 NORGAU Indexable cutting tools 023 105 Mill 1-10 -
