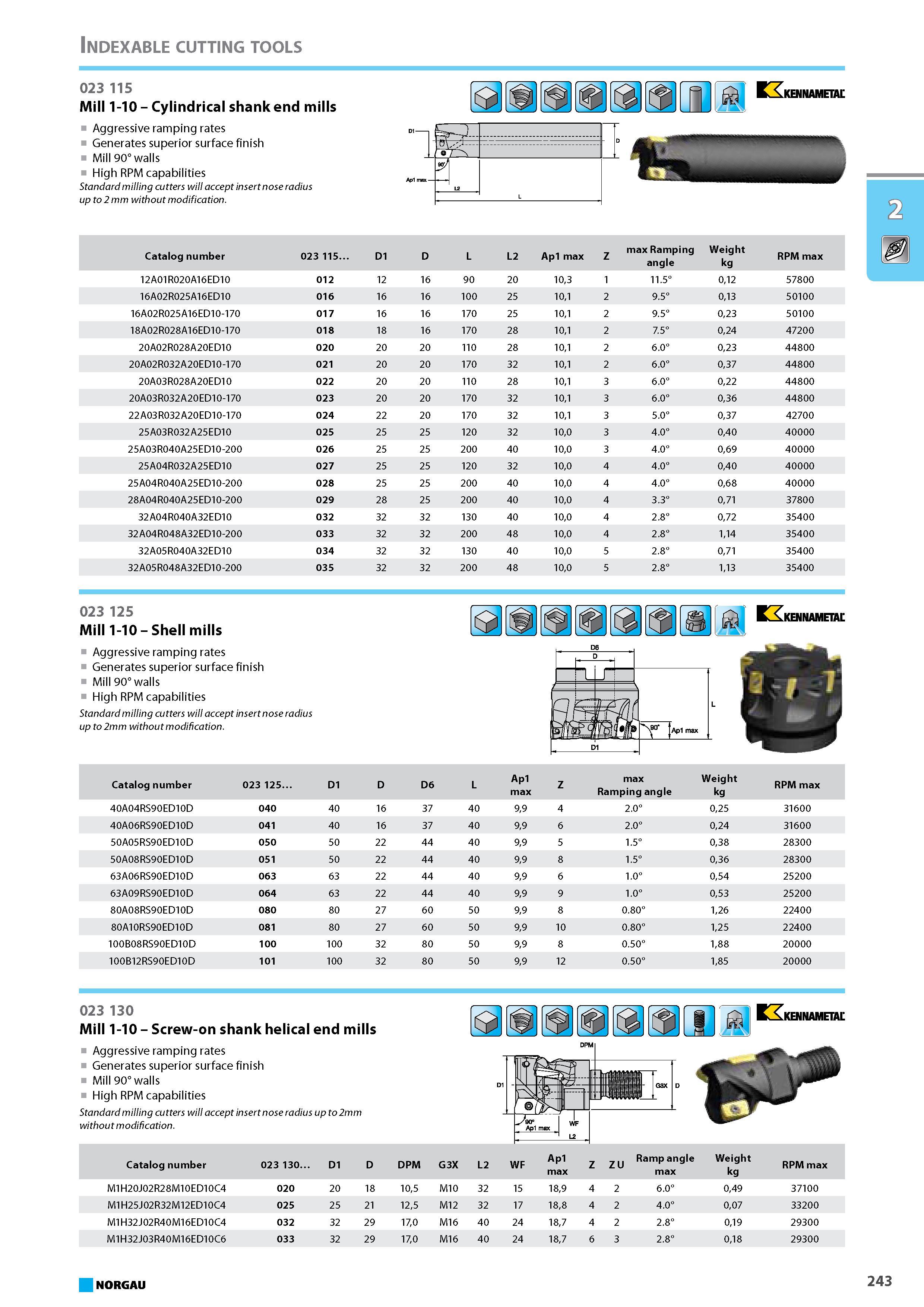

Cylindrical shank end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert

Cylindrical shank end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radius up to 2 mm without modification. KENNAMETAL gy.xL y 12 L Catalog number 023 115. D1 D L L2 Ap1 max Z max Ramping angle Weight kg RPM max 12A01R020A16ED10 012 12 16 90 20 103 1 11.5 012 57800 16A02R025A16ED10 016 16 16 100 25 101 2 9.5 013 50100 16A02R025A16ED10-170 017 16 16 170 25 101 2 9.5 023 50100 18A02R028A16ED10-170 018 18 16 170 28 101 2 7.5 024 47200 20A02R028A20ED10 020 20 20 110 28 101 2 6.0 023 44800 20A02R032A20ED10-170 021 20 20 170 32 101 2 6.0 037 44800 20A03R028A20ED10 022 20 20 110 28 101 3 6.0 022 44800 20A03R032A20ED10-170 023 20 20 170 32 101 3 6.0 036 44800 22A03 R032A20ED10-170 024 22 20 170 32 101 3 5.0 037 42700 25A03R032A25ED10 025 25 25 120 32 100 3 4.0 040 40000 25A03R040A25ED10-200 026 25 25 200 40 100 3 4.0 069 40000 25A04R032A25ED10 027 25 25 120 32 100 4 4.0 040 40000 25A04R040A25ED10-200 028 25 25 200 40 100 4 4.0 068 40000 28A04R040A25ED10-200 029 28 25 200 40 100 4 3.3 071 37800 32A04R040A32ED10 032 32 32 130 40 100 4 2.8 072 35400 32A04R048A32ED10-200 033 32 32 200 48 100 4 2.8 114 35400 32A05R040A32ED10 034 32 32 130 40 100 5 2.8 071 35400 32A05R048A32ED10-200 035 32 32 200 48 100 5 2.8 113 35400 023 125 Mill 1-10 - Shell mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radius up to 2mm without modification. D rlf ap1 max D1 Catalog number 023 125. D1 D D6 L Ap1 max Z max Ramping angle Weight kg RPM max 40A04RS90ED10D 040 40 16 37 40 99 4 2.0 025 31600 40A06RS90ED10D 041 40 16 37 40 99 6 2.0 024 31600 50A05RS90ED10D 050 50 22 44 40 99 5 1.5 038 28300 50A08RS90ED10D 051 50 22 44 40 99 8 1.5 036 28300 63A06RS90ED10D 063 63 22 44 40 99 6 1.0 054 25200 63A09RS90ED10D 064 63 22 44 40 99 9 1.0 053 25200 80A08RS90ED10D 080 80 27 60 50 99 8 0.80 126 22400 80A10RS90ED10D 081 80 27 60 50 99 10 0.80 125 22400 100B08RS90ED10D 100 100 32 80 50 99 8 0.50 188 20000 100B12RS90ED10D 101 100 32 80 50 99 12 0.50 185 20000 023 130 Mill 1-10 - Screw-on shank helical end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radius up to 2mm without modification. KENNAMETAL Catalog number 023 130. D1 D DPM G3X L2 WF Ap1 max Z Z U Ramp angle max Weight kg RPM max M1H20J02R28M10ED10C4 020 20 18 105 M10 32 15 189 4 2 6.0 049 37100 M1H25J02R32M12ED10C4 025 25 21 125 M12 32 17 188 4 2 4.0 007 33200 M1H32J02R40M16ED10C4 032 32 29 170 M16 40 24 187 4 2 2.8 019 29300 M1H32J03R40M16ED10C6 033 32 29 170 M16 40 24 187 6 3 2.8 018 29300 NORGAU 243 Indexable cutting tools 023 115 Mill 1-10 -
