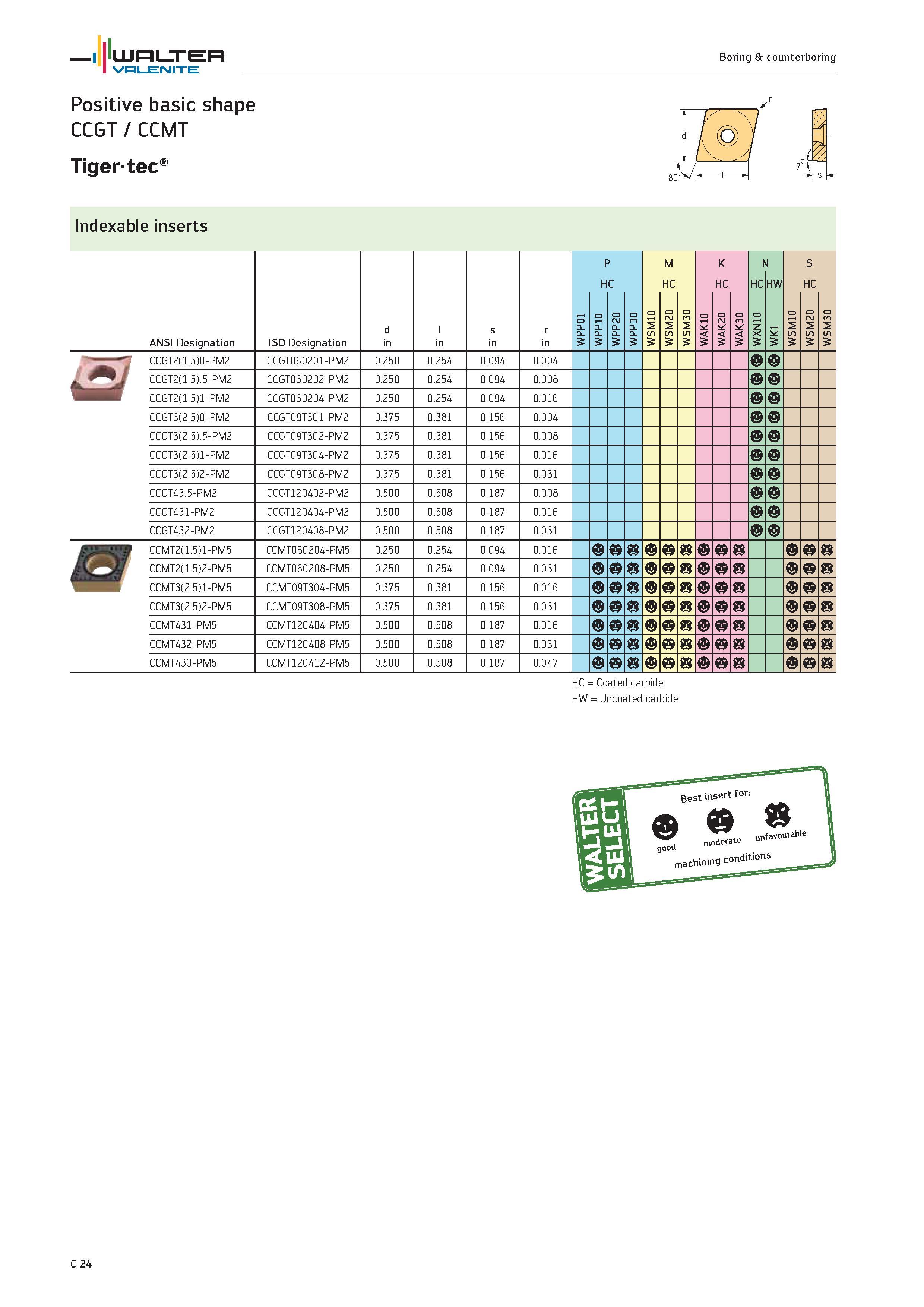

WALTER Valenite Positive basic shape CCGT / CCMT Tiger-tec Boring counterboring 80°Vh i 1 Indexable inserts ANSI Designation ISO Designation d in

WALTER Valenite Positive basic shape CCGT / CCMT Tiger-tec Boring counterboring 80°Vh i .1 Indexable inserts ANSI Designation ISO Designation d in l in s in r in WPP01 P H 0 l-H P P WP WPP20 n WPP30 WSM10 M HC 0 2 S WSM30 WAK10 K HC 0 rsi K AKW WAK30 HC 0 1-H N X 5 HW 1 K W WSM10 S HC 0 r-i 2 S 0 m 2 S W CCGT2(1.5)0-PM2 CCGT060201-PM2 0.250 0.254 0.094 0.004 CCGT2(1.5).5-PM2 CCGT060202-PM2 0.250 0.254 0.094 0.008 CCGT2(1.5)1-PM2 CCGT060204-PM2 0.250 0.254 0.094 0.016 CCGT3(2.5)0-PM2 CCGT09T301-PM2 0.375 0.381 0.156 0.004 CCGT3(2.5).5-PM2 CCGT09T302-PM2 0.375 0.381 0.156 0.008 CCGT3(2.5)1-PM2 CCGT09T304-PM2 0.375 0.381 0.156 0.016 CCGT3(2.5)2-PM2 CCGT09T308-PM2 0.375 0.381 0.156 0.031 CCGT43.5-PM2 CCGT120402-PM2 0.500 0.508 0.187 0.008 CCGT431-PM2 CCGT120404-PM2 0.500 0.508 0.187 0.016 CCGT432-PM2 CCGT120408-PM2 0.500 0.508 0.187 0.031 CCMT2(1.5)1-PM5 CCMT060204-PM5 0.250 0.254 0.094 0.016 CCMT2(1.5)2-PM5 CCMT060208-PM5 0.250 0.254 0.094 0.031 CCMT3(2.5)1-PM5 CCMT09T304-PM5 0.375 0.381 0.156 0.016 CCMT3(2.5)2-PM5 CCMT09T308-PM5 0.375 0.381 0.156 0.031 CCMT431-PM5 CCMT120404-PM5 0.500 0.508 0.187 0.016 CCMT432-PM5 CCMT120408-PM5 0.500 0.508 0.187 0.031 CCMT433-PM5 CCMT120412-PM5 0.500 0.508 0.187 0.047 HC Coated carbide HW Uncoated carbide Best insert for A iwatp unfavourable good moderate machining conditions C 24
