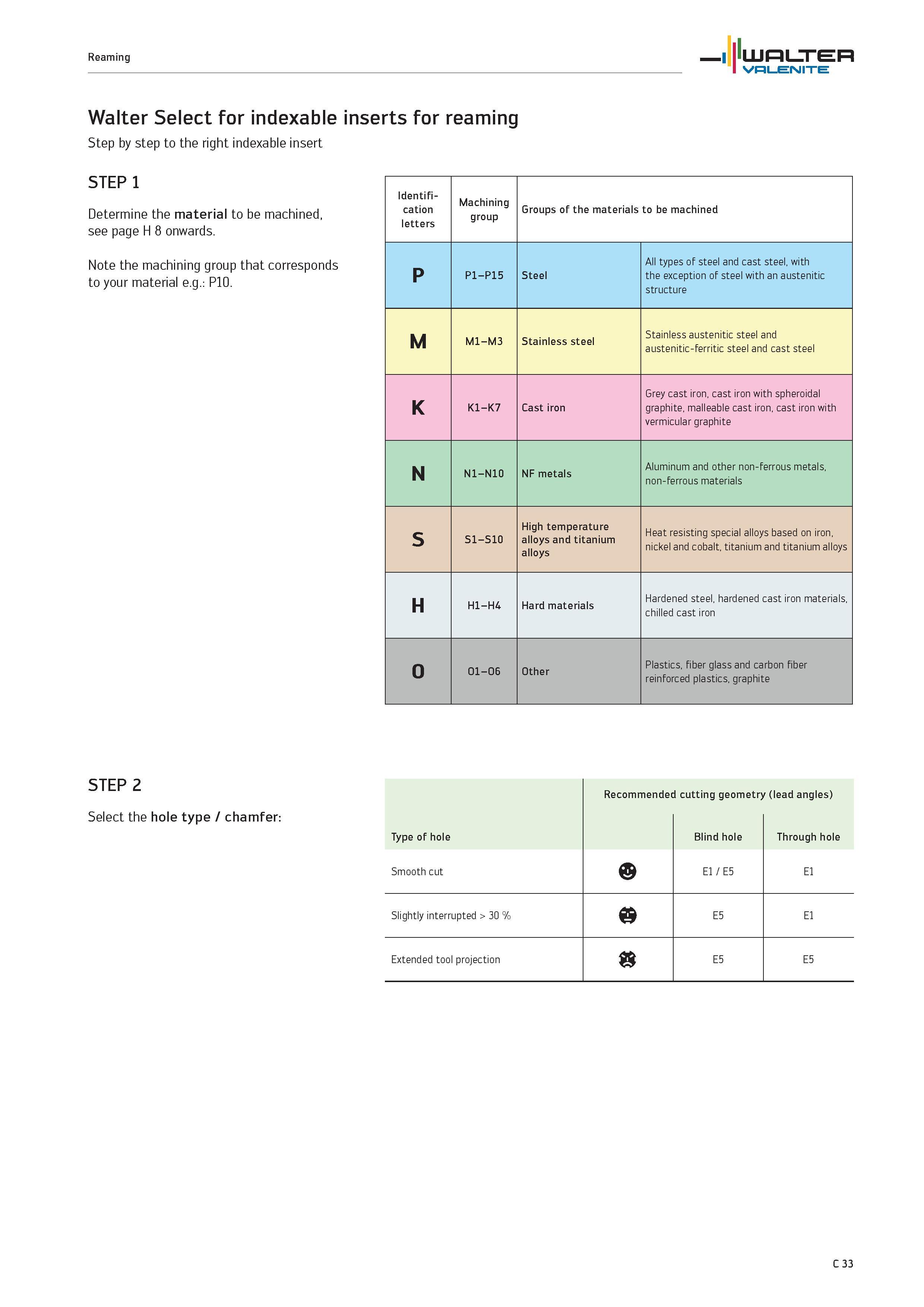

Walter Select for indexable inserts for reaming Step by step to the right indexable insert STEP 1 Determine the material to be machined, see page H 8 onwards. Note the machining group that corresponds to your material e.g. P10. Identifi- cation letters Machining group Groups of the materials to be machined P P1-P15 Steel All types of steel and cast steel, with the exception of steel with an austenitic structure M M1-M3 Stainless steel Stainless austenitic steel and austenitic-ferritic steel and cast steel K K1-K7 Cast iron Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite N N1-N10 NF metals Aluminum and other non-ferrous metals, non-ferrous materials S S1-S10 High temperature alloys and titanium alloys Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys H H1-H4 Hard materials Hardened steel, hardened cast iron materials, chilled cast iron O O1-O6 Other Plastics, fiber glass and carbon fiber reinforced plastics, graphite STEP 2 Select the hole type / chamfer Recommended cutting geometry (lead angles) Type of hole Blind hole Through hole Smooth cut a E1 / E5 E1 Slightly interrupted > 30 % b E5 E1 Extended tool projection c E5 E5 C 33 Reaming WALTER Valenite
