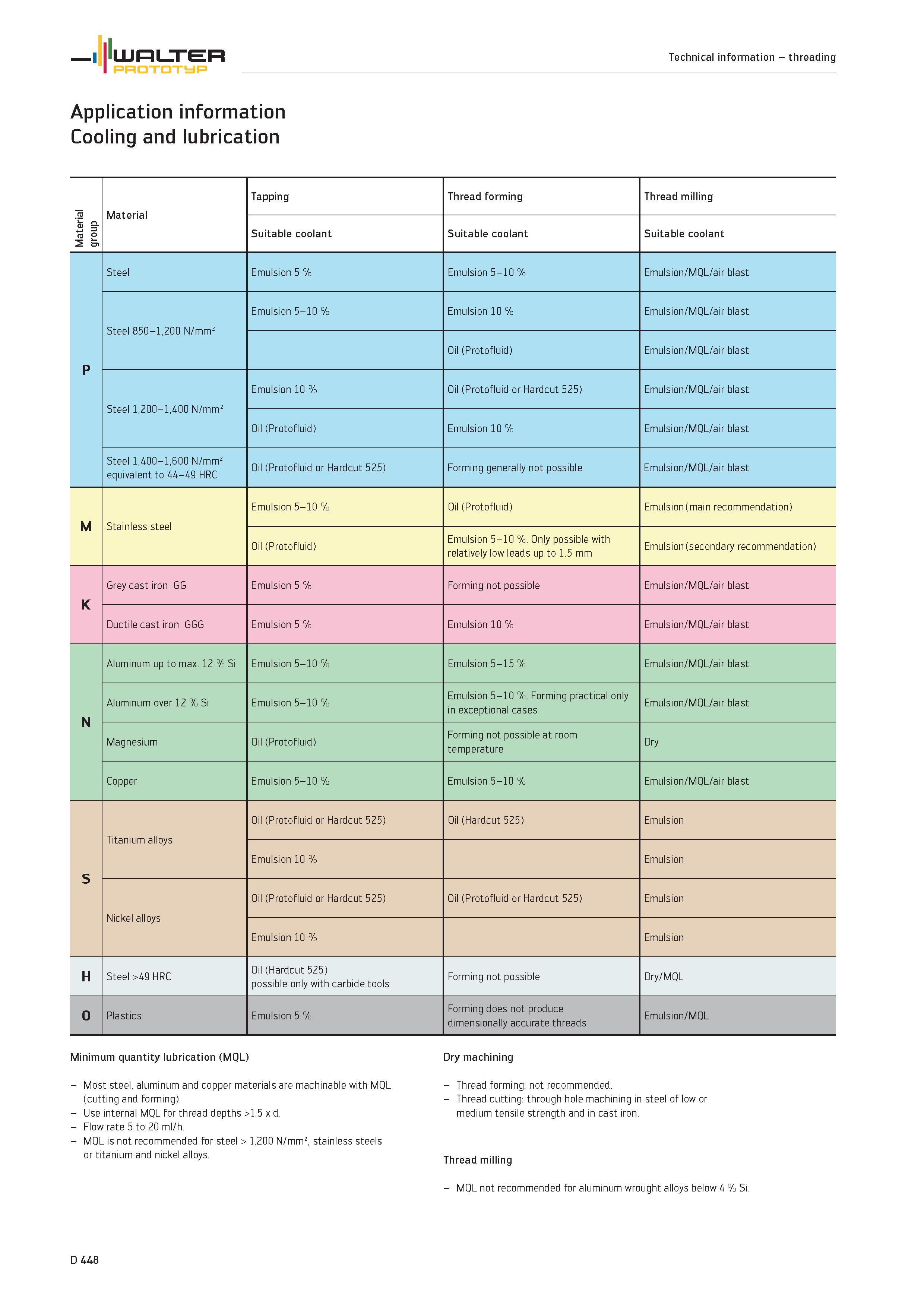

WALTER PROTOTYP Technical information threading Application information Cooling and lubrication Material group Material Tapping Thread forming Thread milling Suitable coolant Suitable coolant Suitable coolant P Steel Emulsion 5 % Emulsion 5-10 % Emulsion/MQL/air blast Steel 850-1,200 N/mm2 Emulsion 5-10 % Emulsion 10 % Emulsion/MQL/air blast Oil (Protofluid) Emulsion/MQL/air blast Steel 1,200-1,400 N/mm2 Emulsion 10 % Oil (Protofluid or Hardcut 525) Emulsion/MQL/air blast Oil (Protofluid) Emulsion 10 % Emulsion/MQL/air blast Steel 1,400-1,600 N/mm2 equivalent to 44-49 HRC Oil (Protofluid or Hardcut 525) Forming generally not possible Emulsion/MQL/air blast M Stainless steel Emulsion 5-10 % Oil (Protofluid) Emulsion (main recommendation) Oil (Protofluid) Emulsion 5-10 %. Only possible with relatively low leads up to 1.5 mm Emulsion (secondary recommendation) K Grey cast iron GG Emulsion 5 % Forming not possible Emulsion/MQL/air blast Ductile cast iron GGG Emulsion 5 % Emulsion 10 % Emulsion/MQL/air blast N Aluminum up to max. 12 % Si Emulsion 5-10 % Emulsion 5-15 % Emulsion/MQL/air blast Aluminum over 12 % Si Emulsion 5-10 % Emulsion 5-10 %. Forming practical only in exceptional cases Emulsion/MQL/air blast Magnesium Oil (Protofluid) Forming not possible at room temperature Dry Copper Emulsion 5-10 % Emulsion 5-10 % Emulsion/MQL/air blast S Titanium alloys Oil (Protofluid or Hardcut 525) Oil (Hardcut 525) Emulsion Emulsion 10 % Emulsion Nickel alloys Oil (Protofluid or Hardcut 525) Oil (Protofluid or Hardcut 525) Emulsion Emulsion 10 % Emulsion H Steel >49 HRC Oil (Hardcut 525) possible only with carbide tools Forming not possible Dry/MQL O Plastics Emulsion 5 % Forming does not produce dimensionally accurate threads Emulsion/MQL Minimum quantity lubrication (MQL) Dry machining Most steel, aluminum and copper materials are machinable with MQL (cutting and forming). Use internal MQL for thread depths >1.5 x d. Flow rate 5 to 20 ml/h. MQL is not recommended for steel > 1,200 N/mm2, stainless steels or titanium and nickel alloys. MQL not recommended for aluminum wrought alloys below 4 % Si. Thread forming not recommended. Thread cutting through hole machining in steel of low or medium tensile strength and in cast iron. Thread milling D 448
