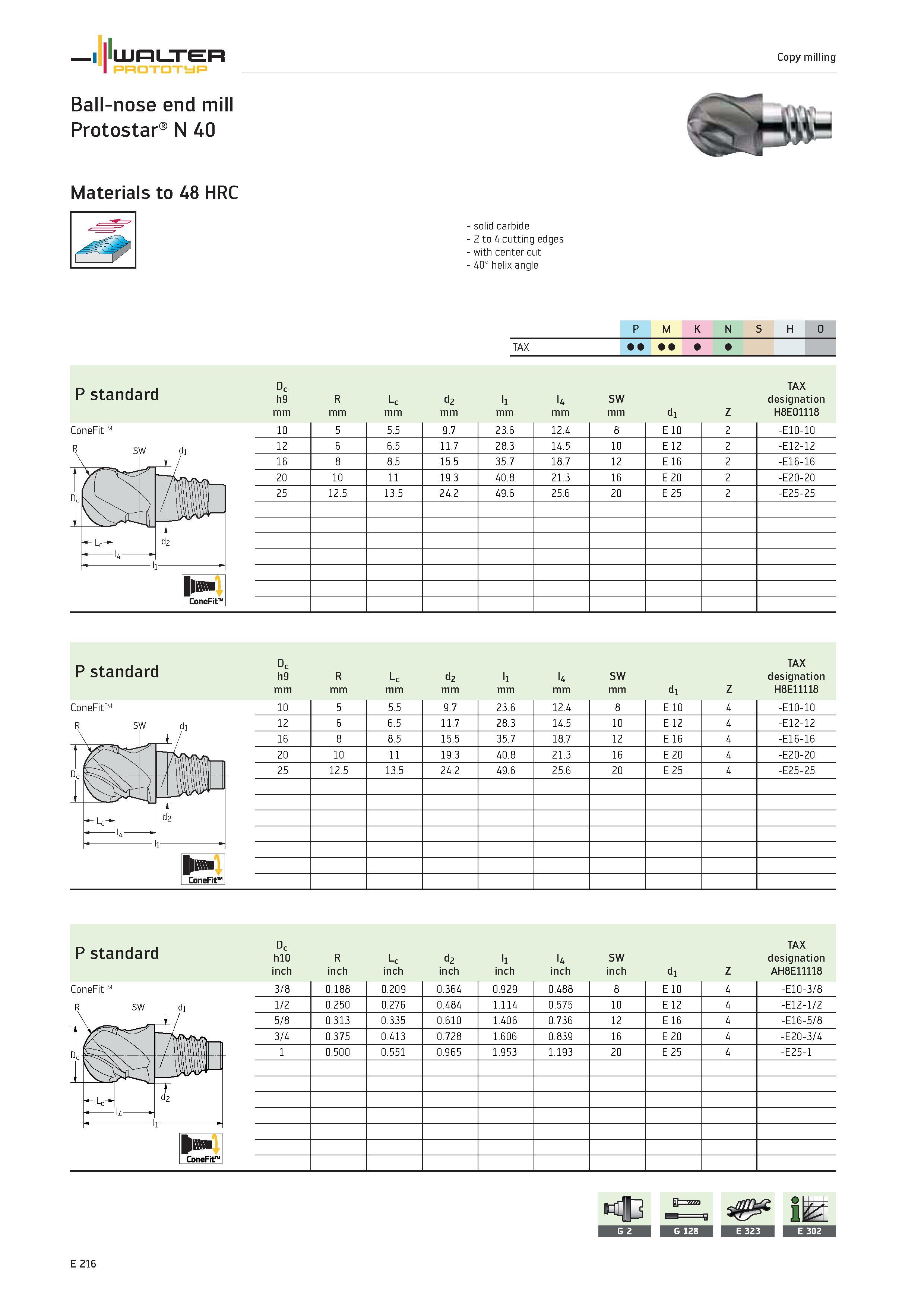

WALTER PROTOTYP Copy milling Ball-nose end mill Protostar N 40 Materials to 48 HRC solid carbide 2 to 4 cutting edges with center cut 40° helix angle ConeFit 1 P M K N S H O TAX 1 P standard Dc h9 R Lc d2 ll l4 SW TAX designation mm di Z H8E01118 10 5 5.5 9.7 23.6 12.4 8 E 10 2 -E10-10 12 6 6.5 11.7 28.3 14.5 10 E 12 2 -E12-12 16 8 8.5 15.5 35.7 18.7 12 E 16 2 -E16-16 20 10 11 19.3 40.8 21.3 16 E 20 2 -E20-20 25 12.5 13.5 24.2 49.6 25.6 20 E 25 2 -E25-25 P standard c9 Dh R Lc d2 l1 U SW TAX designation mm d1 Z H8E11118 ConeFit 10 5 5.5 9.7 23.6 12.4 8 E 10 4 -E10-10 12 6 6.5 11.7 28.3 14.5 10 E 12 4 -E12-12 16 8 8.5 15.5 35.7 18.7 12 E 16 4 -E16-16 20 10 11 19.3 40.8 21.3 16 E 20 4 -E20-20 25 12.5 13.5 24.2 49.6 25.6 20 E 25 4 -E25-25 P standard Dc h10 R Lc d2 l1 l4 SW TAX designation inch inch inch inch inch inch inch d1 Z AH8E11118 ConeFit 3/8 0.188 0.209 0.364 0.929 0.488 8 E 10 4 -E10-3/8 1/2 0.250 0.276 0.484 1.114 0.575 10 E 12 4 -E12-1/2 5/8 0.313 0.335 0.610 1.406 0.736 12 E 16 4 -E16-5/8 3/4 0.375 0.413 0.728 1.606 0.839 16 E 20 4 -E20-3/4 1 0.500 0.551 0.965 1.953 1.193 20 E 25 4 -E25-1 E 216
