Tools for gang type automatic lathes (for external turning and boring) Moulded breaker insert Nose radii designed with minus tolerance

Tools for gang type automatic lathes (for external turning and boring) Moulded breaker insert Nose radii designed with minus tolerance

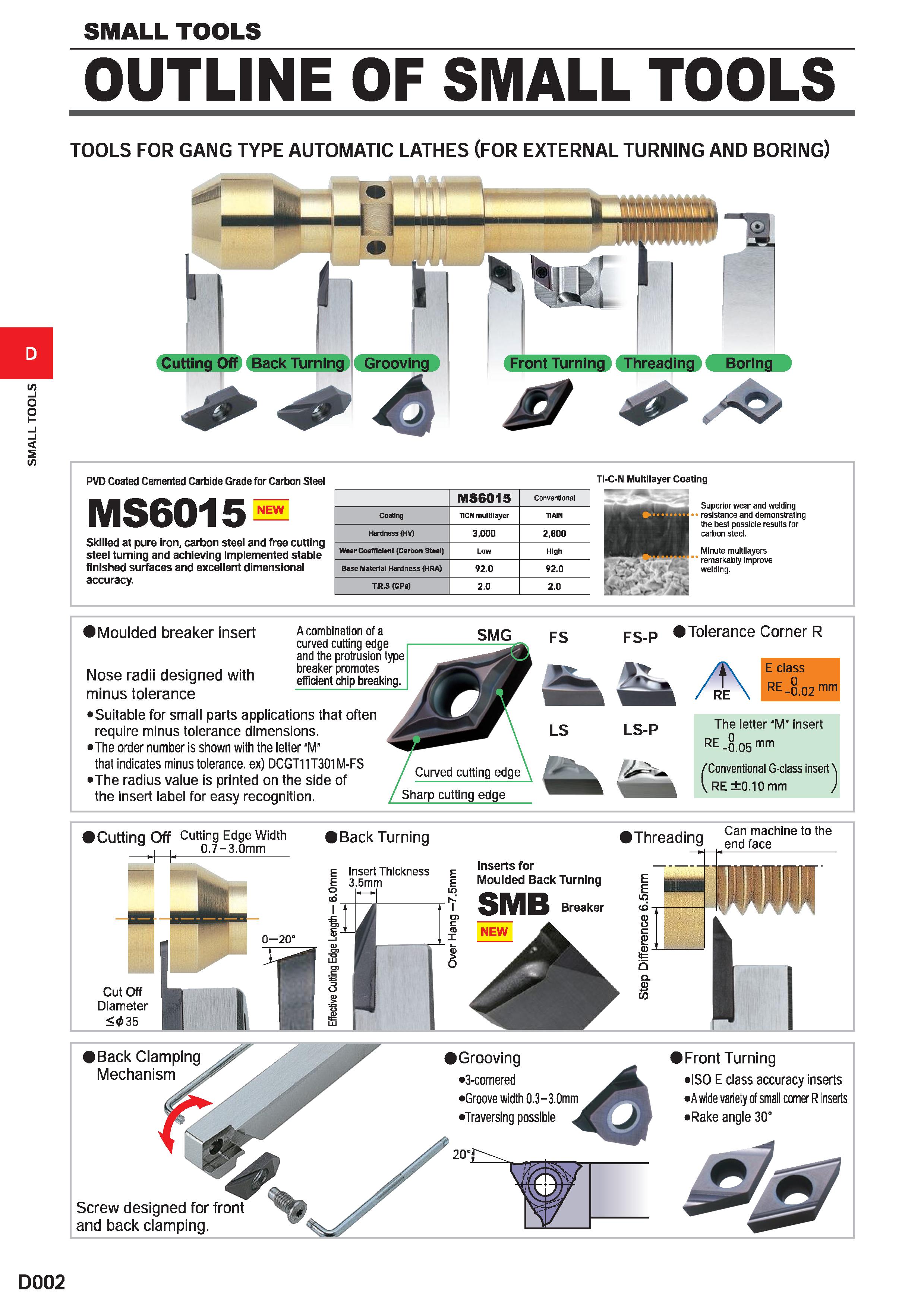

Tools for gang type automatic lathes (for external turning and boring) Moulded breaker insert Nose radii designed with minus tolerance _ PVD Coated Cemented Carbide Grade for Carbon Steel MS6015 utting Off Back Turning Grooving Front Turning Threading Boring & PVD Coated Cemented Carbide Grade for Carbon Steel MS6015 Skilled at pure iron, carbon steel and free cutting steel turning and achieving Implemented stable finished surfaces and excellent dimensional accuracy. Tl-C-N Multilayer Coating MS6015 Conventional Coating TIC IN multilayer TiAJN Hvdness (HV) 3,000 2,800 Wsar Coefficient (Carbon Steal) Low High Base Material Hardness (HRA) 92.0 92.0 T.R.S (GPa) 2.0 2.0 / - A ... i ' r. Y 1 \ Superior wear and welding resistance and demonstrating the best possible results for carbon steel. Minute multilayers remarkably Improve welding. FS-P Tolerance Corner R & a LS-P The letter “M” insert re-0.05 mm / Conventional G-class insert \ V RE ±0.10 mm J inserts for Moulded Back Turning SMB Breaker T Back Clamping Mechanism Screw designed for front and back clamping. Cutting Off Cutting Edge Width I 11 0.7-3.Omm CutOff Diameter 035 Back Turning E insert Thickness E 3.5mm Threading Can machine to the end face Grooving 3-cornered Groove width 0.3-3.0mm Traversing possible Front Turning ISO E class accuracy inserts A wide variety of small corner R inserts Rake angle 30° Moulded breaker insert a combination of a curved cutting edge and the protrusion type Nose radii designed with efficient choking, minus tolerance Suitable for small parts applications that often require minus tolerance dimensions. The order number is shown with the letter “M" that indicates minus tolerance, ex) DCGT11T301M-FS The radius value is printed on the side of the insert label for easy recognition. Sharp cutting edge SMG D002 SMALL TOOLS SMALL TOOLS OUTLINE OF SMALL TOOLS
