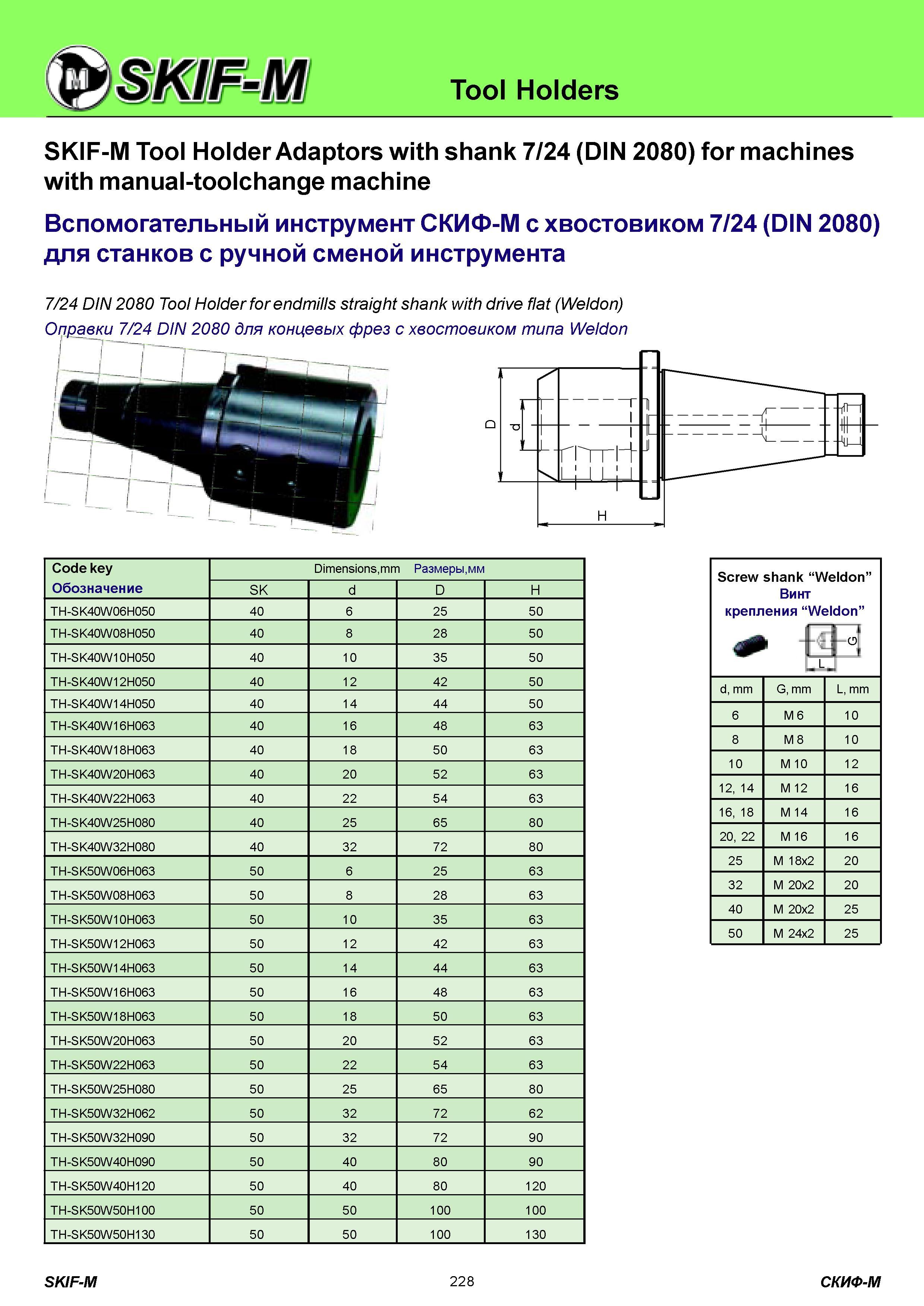

Tool Holders SKIF-M Tool Holder Adaptors with shank 7/24 (DIN 2080) for machines with manual-toolchange machine Вспомогательный инструмент СКИФ-М с хвостовиком 7/24 (DIN 2080) для станков с ручной сменой инструмента 7/24 DIN 2080 Tool Holder for endmills straight shank with drive flat (Weldon) Оправки 7/24 DIN 2080 для концевых фоез с хвостовиком типа Weldon Code key Обозначение Dimensions,mm Размеры,мм SK d D H TH-SK40W06H050 40 6 25 50 TH-SK40W08H050 40 8 28 50 TH-SK40W10H050 40 10 35 50 TH-SK40W12H050 40 12 42 50 TH-SK40W14H050 40 14 44 50 TH-SK40W16H063 40 16 48 63 TH-SK40W18H063 40 18 50 63 TH-SK40W20H063 40 20 52 63 TH-SK40W22H063 40 22 54 63 TH-SK40W25H080 40 25 65 80 TH-SK40W32H080 40 32 72 80 TH-SK50W06H063 50 6 25 63 TH-SK50W08H063 50 8 28 63 TH-SK50W10H063 50 10 35 63 TH-SK50W12H063 50 12 42 63 TH-SK50W14H063 50 14 44 63 TH-SK50W16H063 50 16 48 63 TH-SK50W18H063 50 18 50 63 TH-SK50W20H063 50 20 52 63 TH-SK50W22H063 50 22 54 63 TH-SK50W25H080 50 25 65 80 TH-SK50W32H062 50 32 72 62 TH-SK50W32H090 50 32 72 90 TH-SK50W40H090 50 40 80 90 TH-SK50W40H120 50 40 80 120 TH-SK50W50H100 50 50 100 100 TH-SK50W50H130 50 50 100 130 Screw shank Weldon Винт крепления Weldon <0 h о L d, mm G, mm L, mm 6 M 6 10 8 M 8 10 10 M 10 12 12, 14 M 12 16 16, 18 M 14 16 20, 22 M 16 16 25 M 18x2 20 32 M 20x2 20 40 M 20x2 25 50 M 24x2 25 SKIF-M 228 СКИФ-М
