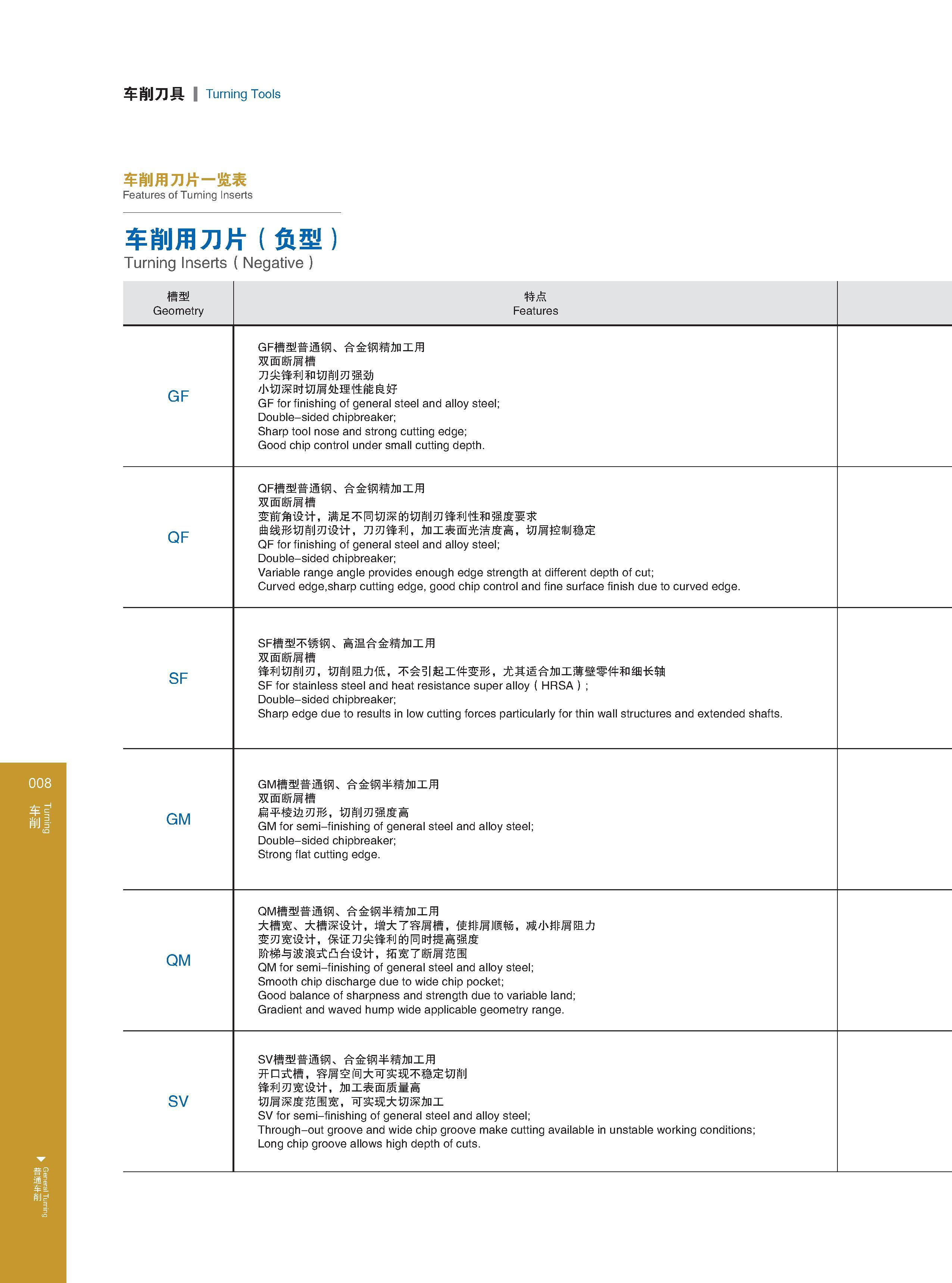

Токарные твердосплавные пластины GESAC из Китая Обзор номенклатуры металлорежущего инструмента _ Turning General Turning 车削刀具 Turning Tools 车削用刀片一览表 Features of Turning Inserts 车削用刀片（负型） Turning Inserts(Negative) 槽型 Geometry 特点 Features GF GF槽型普通钢 合金钢精加工用 双面断屑槽 刀尖锋利和切削刃强劲 小切深时切屑处理性能良好 GF for finishing of general steel and alloy steel; Double-sided chipbreaker; Sharp tool nose and strong cutting edge; Good chip control under small cutting depth. QF QF槽型普通钢 合金钢精加工用 双面断屑槽 变前角设计，满足不同切深的切削刃锋利性和强度要求 曲线形切削刃设计，刀刃锋利，加工表面光洁度高，切屑控制稳定 QF for finishing of general steel and alloy steel; Double-sided chipbreaker; Variable range angle provides enough edge strength at different depth of cut; Curved edge,sharp cutting edge, good chip control and fine surface finish due to curved edge. SF SF槽型不锈钢 高温合金精加工用 双面断屑槽 锋利切削刃，切削阻力低，不会引起工件变形，尤其适合加工薄壁零件和细长轴 SF for stainless steel and heat resistance super alloy(HRSA); Double-sided chipbreaker; Sharp edge due to results in low cutting forces particularly for thin wall structures and extended shafts. GM GM槽型普通钢 合金钢半精加工用 双面断屑槽 扁平棱边刃形，切削刃强度高 GM for semi-finishing of general steel and alloy steel; Double-sided chipbreaker; Strong flat cutting edge. QM QM槽型普通钢 合金钢半精加工用 大槽宽 大槽深设计，增大了容屑槽，使排屑顺畅，减小排屑阻力 变刃宽设计，保证刀尖锋利的同时提高强度 阶梯与波浪式凸台设计，拓宽了断屑范围 QM for semi-finishing of general steel and alloy steel; Smooth chip discharge due to wide chip pocket; Good balance of sharpness and strength due to variable land; Gradient and waved hump wide applicable geometry range. SV SV槽型普通钢 合金钢半精加工用 开 式槽，容屑空间大可实现不稳定切削 锋利刃宽设计，加工表面质量高 切屑深度范围宽，可实现大切深加工 SV for semi-finishing of general steel and alloy steel; Through-out groove and wide chip groove make cutting available in unstable working conditions; Long chip groove allows high depth of cuts.
