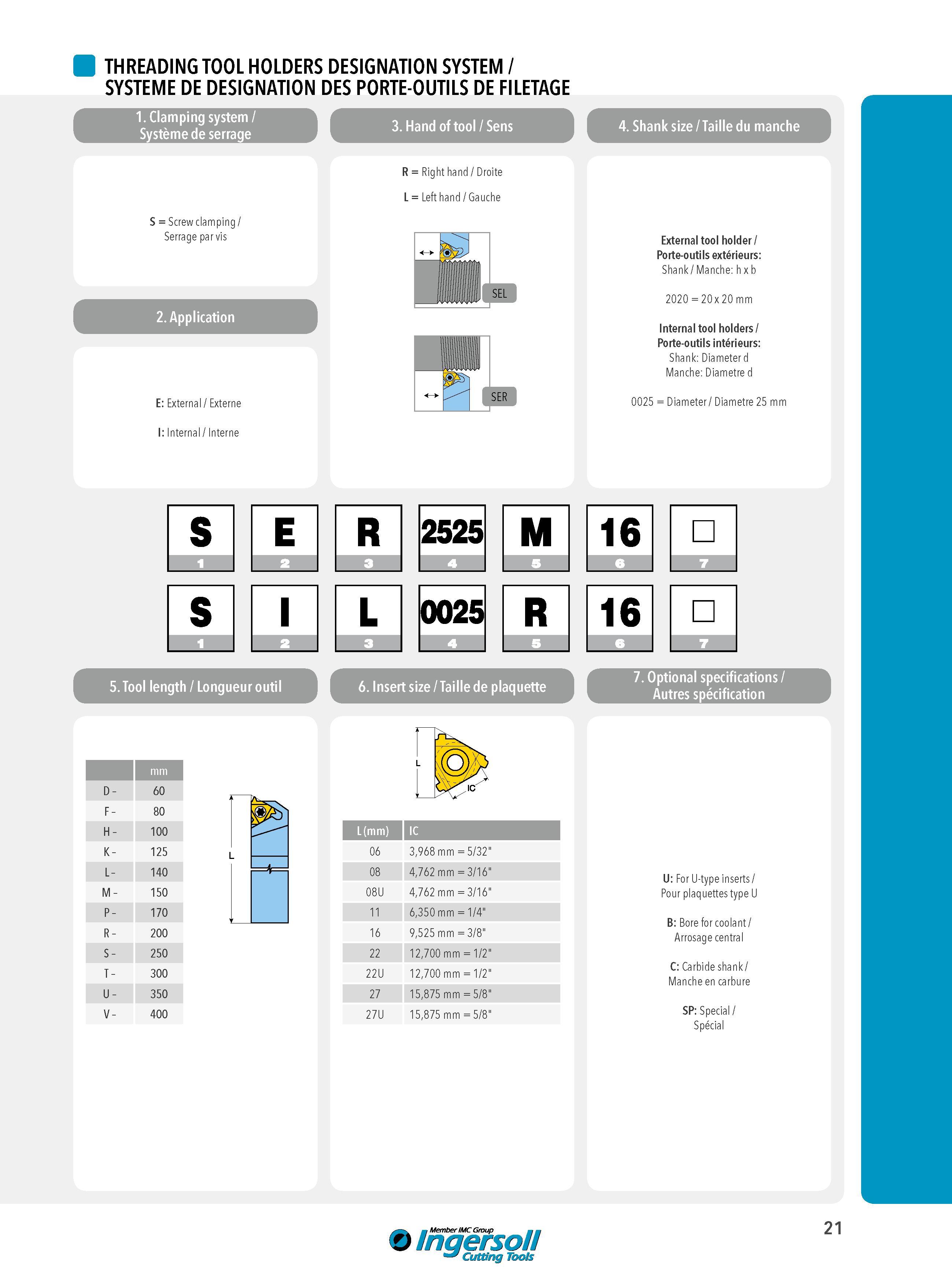

THREADING TOOL HOLDERS DESIGNATION SYSTEM SYSTEME DE DESIGNATION DES PORTE-OUTILS DE FILETAGE Clamping system Système de serrage S = Screw clamping Serr

THREADING TOOL HOLDERS DESIGNATION SYSTEM SYSTEME DE DESIGNATION DES PORTE-OUTILS DE FILETAGE Clamping system Système de serrage S = Screw clamping Serrage par vis Application E External/ Externe I:Internal/ Interne 3. Hand of tool / Sens R = Right hand / Droite L = Left hand / Gauche < 1 f il SEL , i SER 4. Shank size / Taille du manche External tool holder / Porte-outils extérieurs Shank / Manche h x b 2020 = 20 x 20 mm Internal tool holders / Porte-outils intérieurs Shank Diameter d Manche Diametre d 0025 = Diameter / Diametre 25 mm 0H0BSS0 H H H H H 0 5. Tool length / Longueur outil 6. Insert size / Taille de plaquette mm D - 60 F - 80 H - 100 K - 125 L - 140 M - 150 P - 170 R - 200 S - 250 T - 300 U - 350 V - 400 I L (mm) IC 1 06 3,968 mm = 5/32" 08 4,762 mm = 3/16" 08U 4,762 mm = 3/16" 11 6,350 mm = 1/4" 16 9,525 mm = 3/8" 22 12,700 mm = 1/2" 22U 12,700 mm = 1/2" 27 15,875 mm = 5/8" 27U 15,875 mm = 5/8" 7. Optional specifications / Autres spécification U For U-type inserts / Pour plaquettes type U B Bore for coolant / Arrosage central C Carbide shank / Manche en carbure SP Special / Spécial Ingersoll Cutting Tools 21
