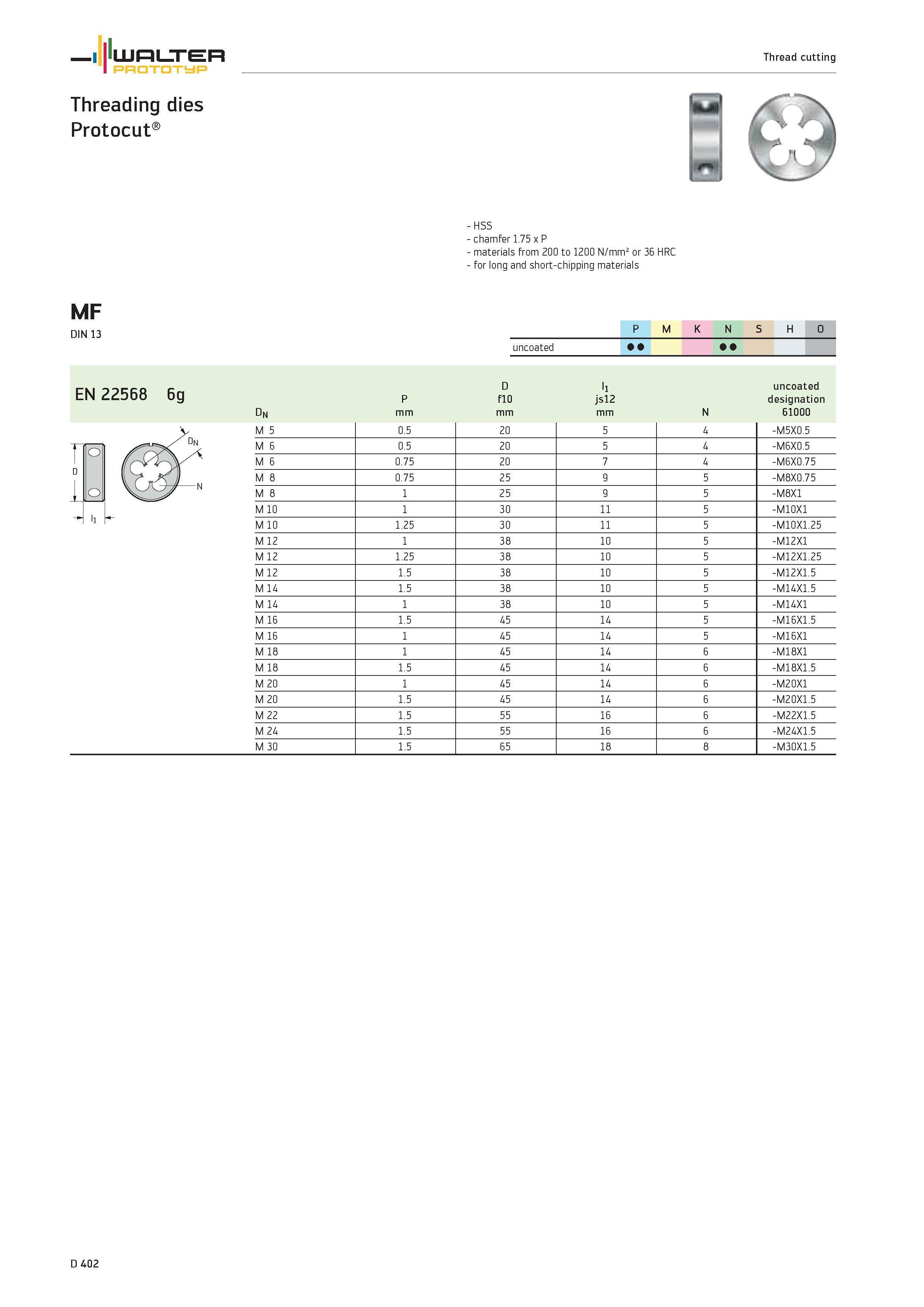

Threading dies WALTER Prototyp Protocut MF DIN l3 EN 22568 6g Thread cutting HSS chamfer 1.75 x P materials from 200 to 1200 N/mm2 or 36 HRC for long and short-chipping materials 1 P M K N S H 0 uncoated Dn P mm d fl0 mm ll jsl2 mm N uncoated designation 6l000 M 5 0.5 20 5 4 -M5X0.5 M 6 0.5 20 5 4 -M6X0.5 M 6 0.75 20 7 4 -M6X0.75 M 8 0.75 25 9 5 -M8X0.75 M 8 1 25 9 5 -M8X1 M 10 1 30 11 5 -M10X1 M 10 1.25 30 11 5 -M10X1.25 M 12 1 38 10 5 -M12X1 M 12 1.25 38 10 5 -M12X1.25 M 12 1.5 38 10 5 -M12X1.5 M 14 1.5 38 10 5 -M14X1.5 M 14 1 38 10 5 -M14X1 M 16 1.5 45 14 5 -M16X1.5 M 16 1 45 14 5 -M16X1 M 18 1 45 14 6 -M18X1 M 18 1.5 45 14 6 -M18X1.5 M 20 1 45 14 6 -M20X1 M 20 1.5 45 14 6 -M20X1.5 M 22 1.5 55 16 6 -M22X1.5 M 24 1.5 55 16 6 -M24X1.5 M 30 1.5 65 18 8 -M30X1.5 D 402
