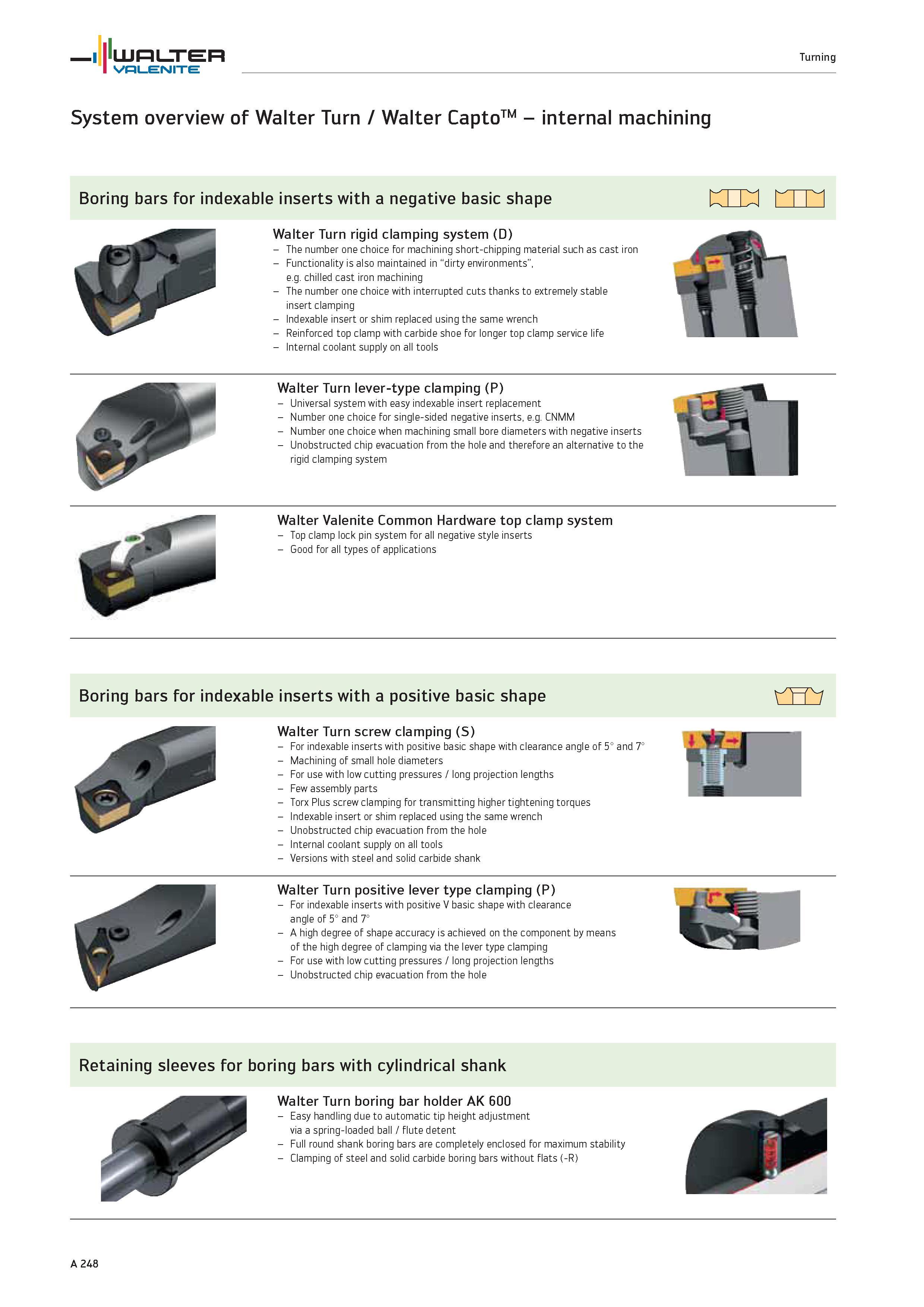

System overview of Walter Turn / Walter CaptoTM internal machining Boring bars for indexable inserts with a negative basic shape era mi Walter Turn rigid clamping system (D) The number one choice for machining short-chipping material such as cast iron Functionality is also maintained in “dirty environments , e.g. chilled cast iron machining The number one choice with interrupted cuts thanks to extremely stable insert clamping Indexable insert or shim replaced using the same wrench Reinforced top clamp with carbide shoe for longer top clamp service life Internal coolant supply on all tools Walter Turn lever-type clamping (P) Universal system with easy indexable insert replacement Number one choice for single-sided negative inserts, e.g. CNMM Number one choice when machining small bore diameters with negative inserts Unobstructed chip evacuation from the hole and therefore an alternative to the rigid clamping system Walter Valenite Common Hardware top clamp system Top clamp lock pin system for all negative style inserts Good for all types of applications Boring bars for indexable inserts with a positive basic shape Walter Turn screw clamping (S) For indexable inserts with positive basic shape with clearance angle of 5° and 7° Machining of small hole diameters For use with low cutting pressures / long projection lengths Few assembly parts Torx Plus screw clamping for transmitting higher tightening torques Indexable insert or shim replaced using the same wrench Unobstructed chip evacuation from the hole Internal coolant supply on all tools Versions with steel and solid carbide shank Walter Turn positive lever type clamping (P) For indexable inserts with positive V basic shape with clearance angle of 5° and 7° A high degree of shape accuracy is achieved on the component by means of the high degree of clamping via the lever type clamping For use with low cutting pressures / long projection lengths Unobstructed chip evacuation from the hole Retaining sleeves for boring bars with cylindrical shank Walter Turn boring bar holder AK 600 Easy handling due to automatic tip height adjustment via a spring-loaded ball / flute detent Full round shank boring bars are completely enclosed for maximum stability Clamping of steel and solid carbide boring bars without flats (-R) A 248 WALTER Valenite Turning
