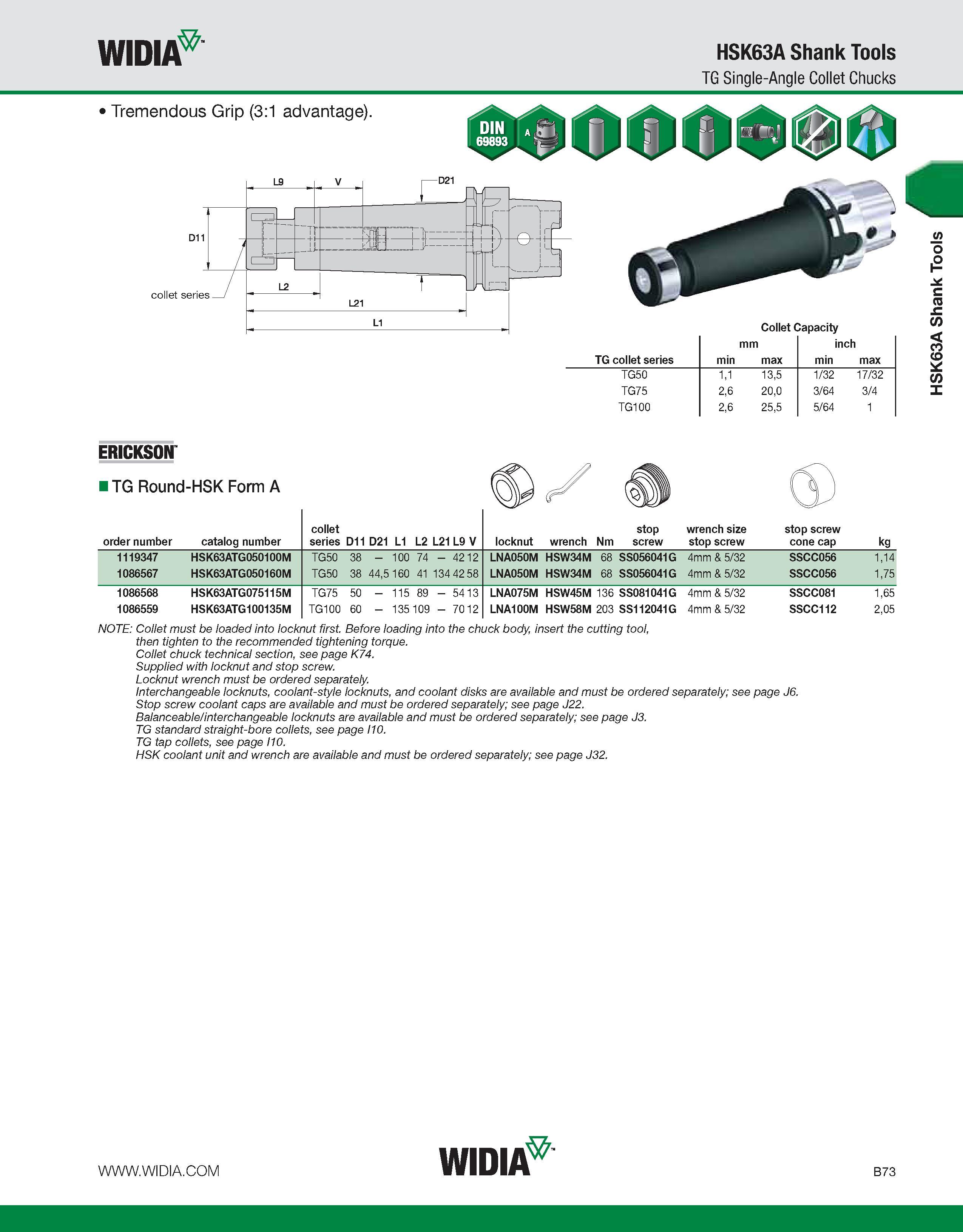

WIDIA HSK63A Shank Tools TG Single-Angle Collet Chucks ERICKSON TG Round-HSK Form A order number catalog number collet series D11 D21 L1 L2 L21 L9 V locknut wrench Nm stop screw wrench size stop screw stop screw cone cap kg 1119347 HSK63ATG050100M TG50 38 - 100 74 - 4212 LNA050M HSW34M 68 SS056041G 4mm & 5/32 SSCC056 1,14 1086567 HSK63ATG050160M TG50 38 44,5160 41 134 42 58 LNA050M HSW34M 68 SS056041G 4mm & 5/32 SSCC056 1,75 1086568 HSK63ATG075115M TG75 50 - 115 89 - 54 13 LNA075M HSW45M 136 SS081041G 4mm & 5/32 SSCC081 1,65 1086559 HSK63ATG100135M TG100 60 - 135109 - 70 12 LNA100M HSW58M 203 SS112041G 4mm & 5/32 SSCC112 2,05 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. HSK coolant unit and wrench are available and must be ordered separately; see page J32. HSK63A Shank Tools
