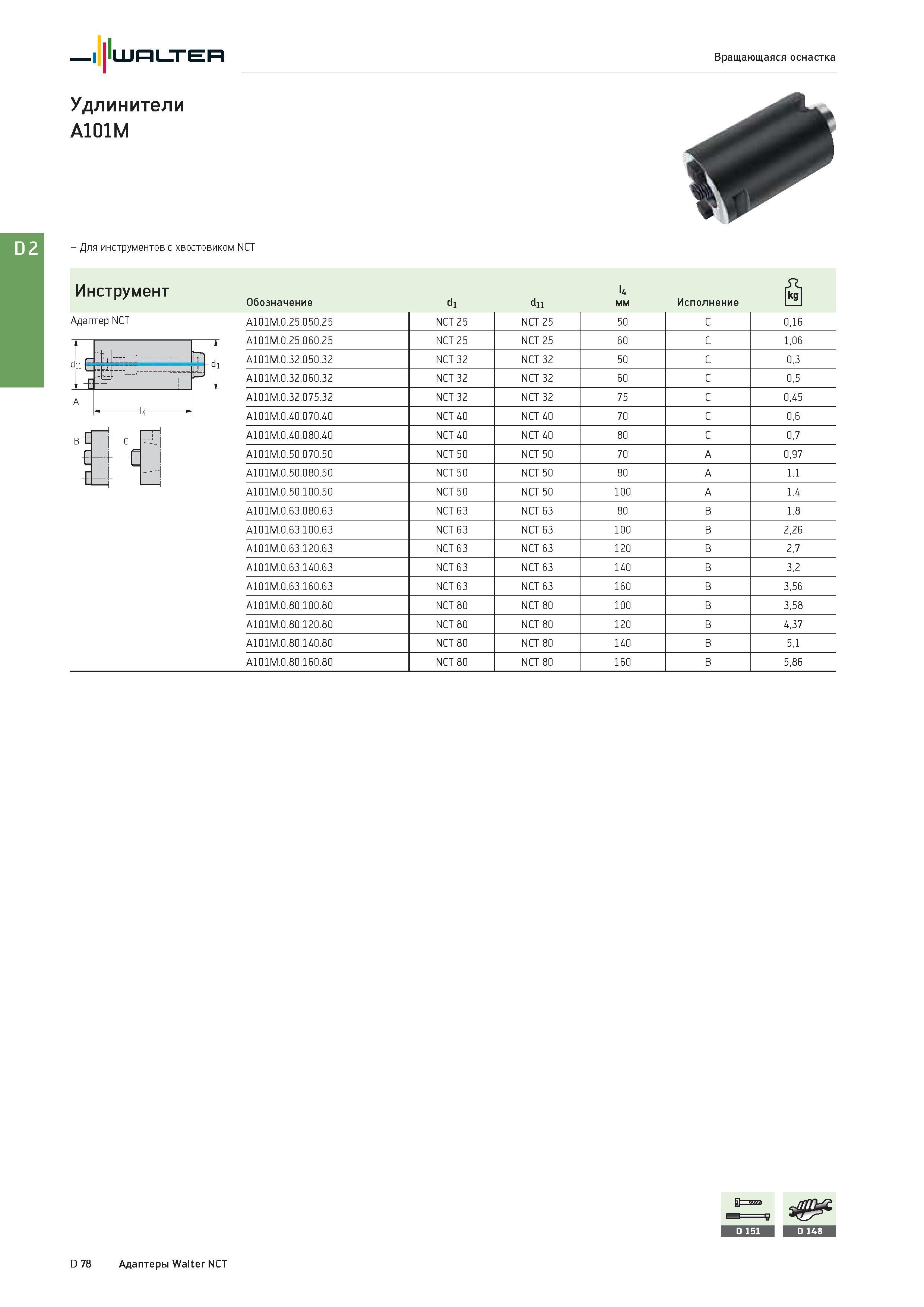

Walter Вращающаяся оснастка Инструмент Адаптер NCT dii и A b£ С fe T C 1 1 Обозначение dl dll l4 мм Исполнение A101M.0.25.050.25 NCT 25 NCT 25 50 C 0,16 A101M.0.25.060.25 NCT 25 NCT 25 60 C 1,06 A101M.0.32.050.32 NCT 32 NCT 32 50 C 0,3 A101M.0.32.060.32 NCT 32 NCT 32 60 C 0,5 A101M.0.32.075.32 NCT 32 NCT 32 75 C 0,45 A101M.0.40.070.40 NCT 40 NCT 40 70 C 0,6 A101M.0.40.080.40 NCT 40 NCT 40 80 C 0,7 A101M.0.50.070.50 NCT 50 NCT 50 70 A 0,97 A101M.0.50.080.50 NCT 50 NCT 50 80 A 1,1 A101M.0.50.100.50 NCT 50 NCT 50 100 A 1,4 A101M.0.63.080.63 NCT 63 NCT 63 80 B 1,8 A101M.0.63.100.63 NCT 63 NCT 63 100 B 2,26 A101M.0.63.120.63 NCT 63 NCT 63 120 B 2,7 A101M.0.63.140.63 NCT 63 NCT 63 140 B 3,2 A101M.0.63.160.63 NCT 63 NCT 63 160 B 3,56 A101M.0.80.100.80 NCT 80 NCT 80 100 B 3,58 A101M.0.80.120.80 NCT 80 NCT 80 120 B 4,37 A101M.0.80.140.80 NCT 80 NCT 80 140 B 5,1 A101M.0.80.160.80 NCT 80 NCT 80 160 B 5,86 D 78 Адаптеры Walter NCT
