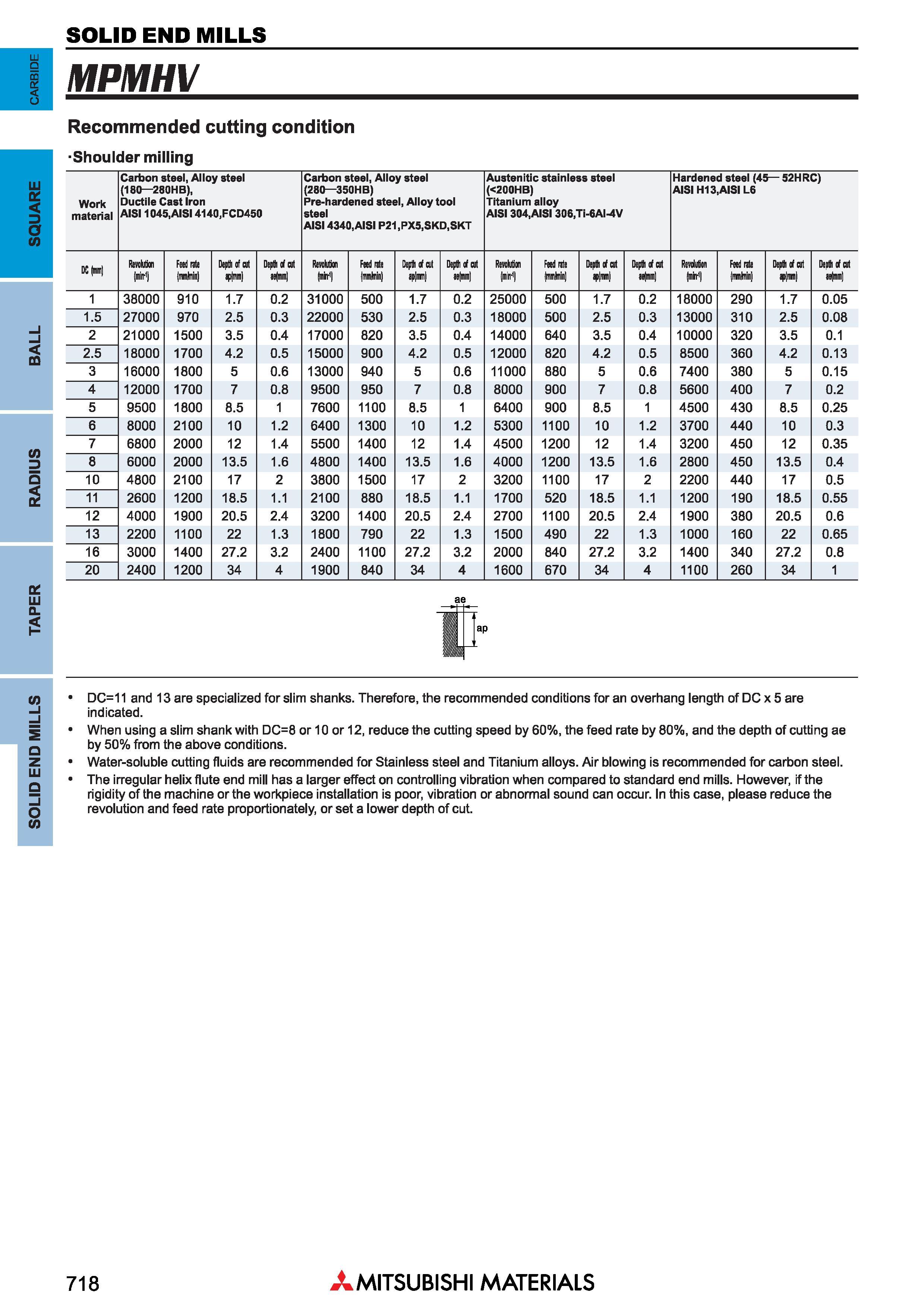

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ MPMHV Recommended cutting condition Shoulder milling Work material Carbon steel, Alloy steel (180 280HB), Ductile Cast Iron AIS11045,AISI 4140,FCD450 Carbon steel, Alloy steel (280 350HB) Pre-hardened steel, Alloy tool steel AISI 4340,AISI P21 ,PX5,SKD,SKT Austen itic stainless steel (<200HB) Titanium alloy AISI 304,AISI 306,Ti-6AI-4V Hardened steel (45 52HRC) AISI H13.AISI L6 DCtynm) Revolution Feed rate ( Mn Depth of cut aptaim Depth if cut ie(iim) Revolution Feed rate mMn) Depth of cut apH Depth of cut n(mm) RevoKition nr1 Feed rate timMn Depth if cut Depth of cut ae(nm) Rendition (mir1 Feed rate (umkiin Depth if cut Depth if cut aefoin 1 38000 910 1.7 0.2 31000 500 1.7 0.2 25000 500 1.7 0.2 18000 290 1.7 0.05 1.5 27000 970 2.5 0.3 22000 530 2.5 0.3 18000 500 2.5 0.3 13000 310 2.5 0.08 2 21000 1500 3.5 0.4 17000 820 3.5 0.4 14000 640 3.5 0.4 10000 320 3.5 0.1 2.5 18000 1700 4.2 0.5 15000 900 4.2 0.5 12000 820 4.2 0.5 8500 360 4.2 0.13 3 16000 1800 5 0.6 13000 940 5 0.6 11000 880 5 0.6 7400 380 5 0.15 4 12000 1700 7 0.8 9500 950 7 0.8 8000 900 7 0.8 5600 400 7 0.2 5 9500 1800 8.5 1 7600 1100 8.5 1 6400 900 8.5 1 4500 430 8.5 0.25 6 8000 2100 10 1.2 6400 1300 10 1.2 5300 1100 10 1.2 3700 440 10 0.3 7 6800 2000 12 1.4 5500 1400 12 1.4 4500 1200 12 1.4 3200 450 12 0.35 8 6000 2000 13.5 1.6 4800 1400 13.5 1.6 4000 1200 13.5 1.6 2800 450 13.5 0.4 10 4800 2100 17 2 3800 1500 17 2 3200 1100 17 2 2200 440 17 0.5 11 2600 1200 18.5 1.1 2100 880 18.5 1.1 1700 520 18.5 1.1 1200 190 18.5 0.55 12 4000 1900 20.5 2.4 3200 1400 20.5 2.4 2700 1100 20.5 2.4 1900 380 20.5 0.6 13 2200 1100 22 1.3 1800 790 22 1.3 1500 490 22 1.3 1000 160 22 0.65 16 3000 1400 27.2 3.2 2400 1100 27.2 3.2 2000 840 27.2 3.2 1400 340 27.2 0.8 20 2400 1200 34 4 1900 840 34 4 1600 670 34 4 1100 260 34 1 1> DC=11 and 13 are specialized for slim shanks. Therefore, the recommended conditions for an overhang length of DC x 5 are Indicated. When using a slim shank with DC=8 or 10 or 12, reduce the cutting speed by 60%, the feed rate by 80%, and the depth of cutting ae by 50% from the above conditions. Water-soluble cutting fluids are recommended for Нержавеющая сталь Stainless steel and Titanium alloys. Air blowing is recommended for carbon steel. The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. 718 Mitsubishi Materials
