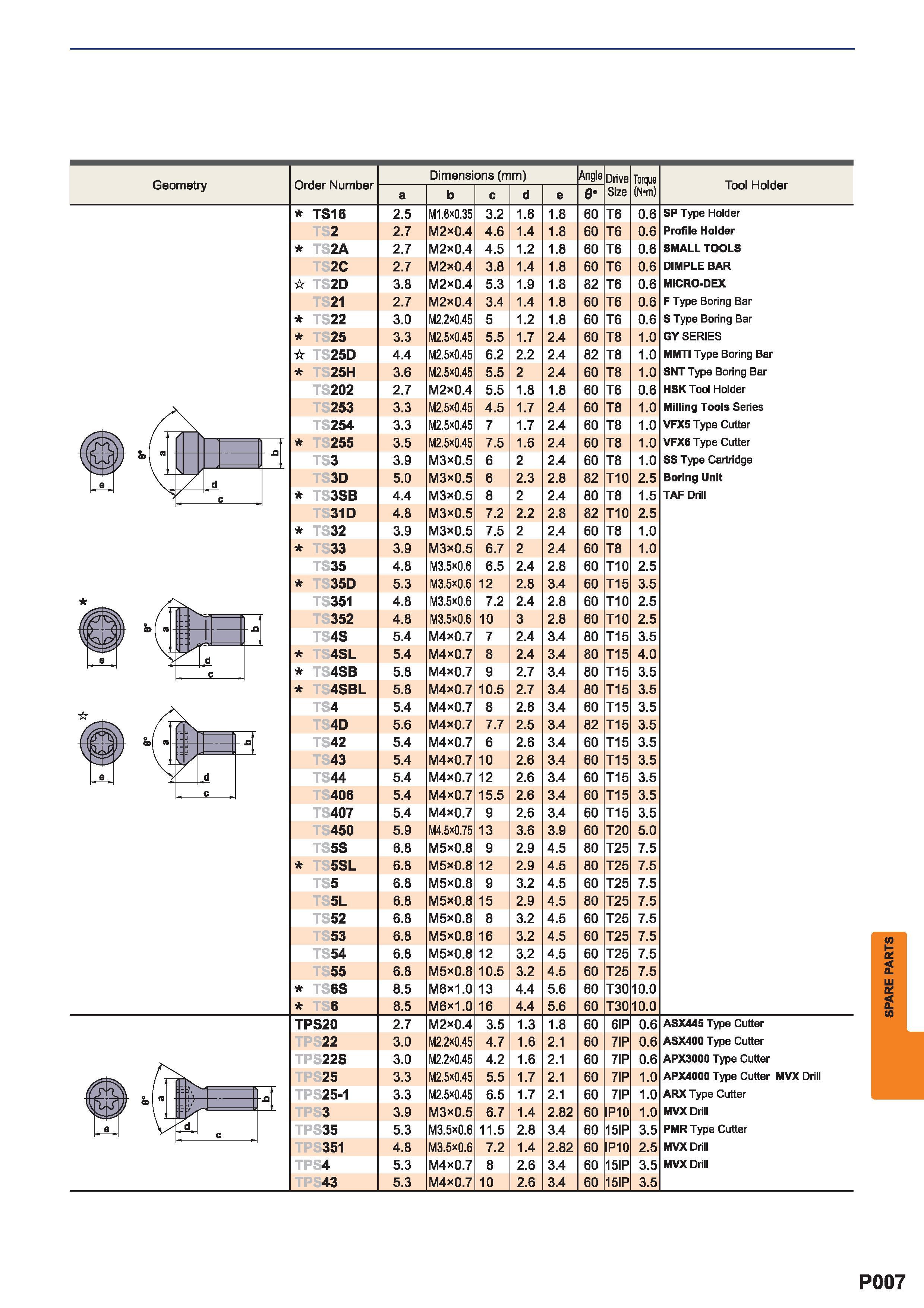

1581 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.P007

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. P007 1581 ENG Lab2u

Geometry Order Number Dimensions (mm) Angle Drive Size Torque (N-m) Tool Holder 0 TS16 2.5 M1.6x0.35 3.2 1.6 1.8 60 T6 0.6 SP Type Holder 2 2.7 M2x0.4 4.6 1.4 1.8 60 T6 0.6 Profile Holder 2A 2.7 M2x0.4 4.5 1.2 1.8 60 T6 0.6 SMALL TOOLS 2C 2.7 M2 0.4 3.8 1.4 1.8 60 T6 0.6 DIMPLE BAR 2D 3.8 M2x0.4 5.3 1.9 1.8 82 T6 0.6 MICRO-DEX 21 2.7 M2x0.4 3.4 1.4 1.8 60 T6 0.6 F Type Boring Bar 22 3.0 M2.2x0.45 5 1.2 1.8 60 T6 0.6 S Type Boring Bar 25 3.3 M2.5x0.45 5.5 1.7 2.4 60 T8 1.0 GY SERIES 25D 4.4 M2.5x0.45 6.2 2.2 2.4 82 T8 1.0 MMTI Type Boring Bar 25H 3.6 M2.5x0.45 5.5 2 2.4 60 T8 1.0 SNT Type Boring Bar 202 2.7 M2x0.4 5.5 1.8 1.8 60 T6 0.6 HSK Tool Holder 253 3.3 M2.5x0.45 4.5 1.7 2.4 60 T8 1.0 Milling Tools Series 254 3.3 M2.5x0.45 7 1.7 2.4 60 T8 1.0 VFX5 Type Cutter 255 3.5 M2.5x0.45 7.5 1.6 2.4 60 T8 1.0 VFX6 Type Cutter 3 3.9 M3x0.5 6 2 2.4 60 T8 1.0 SS Type Cartridge 3D 5.0 M3x0.5 6 2.3 2.8 82 T10 2.5 Boring Unit 3SB 4.4 M3x0.5 8 2 2.4 80 T8 1.5 TAF Drill 31D 4.8 M3x0.5 7.2 2.2 2.8 82 T10 2.5 32 3.9 M3x0.5 7.5 2 2.4 60 T8 1.0 33 3.9 M3x0.5 6.7 2 2.4 60 T8 1.0 35 4.8 M3.5x0.6 6.5 2.4 2.8 60 T10 2.5 35D 5.3 M3.5x0.6 12 2.8 3.4 60 T15 3.5 351 4.8 M3.5x0.6 7.2 2.4 2.8 60 T10 2.5 352 4.8 M3.5x0.6 10 3 2.8 60 T10 2.5 4S 5.4 M4x0.7 7 2.4 3.4 80 T15 3.5 4SL 5.4 M4x0.7 8 2.4 3.4 80 T15 4.0 4SB 5.8 M4x0.7 9 2.7 3.4 80 T15 3.5 4SBL 5.8 M4x0.7 10.5 2.7 3.4 80 T15 3.5 4 5.4 M4x0.7 8 2.6 3.4 60 T15 3.5 rS4D 5.6 M4x0.7 7.7 2.5 3.4 82 T15 3.5 42 5.4 M4x0.7 6 2.6 3.4 60 T15 3.5 43 5.4 M4x0.7 10 2.6 3.4 60 T15 3.5 44 5.4 M4x0.7 12 2.6 3.4 60 T15 3.5 406 5.4 M4x0.7 15.5 2.6 3.4 60 T15 3.5 407 5.4 M4x0.7 9 2.6 3.4 60 T15 3.5 450 5.9 M4.5x0.75 13 3.6 3.9 60 T20 5.0 5S 6.8 M5x0.8 9 2.9 4.5 80 T25 7.5 5SL 6.8 M5x0.8 12 2.9 4.5 80 T25 7.5 5 6.8 M5x0.8 9 3.2 4.5 60 T25 7.5 5L 6.8 M5x0.8 15 2.9 4.5 80 T25 7.5 52 6.8 M5x0.8 8 3.2 4.5 60 T25 7.5 53 6.8 M5x0.8 16 3.2 4.5 60 T25 7.5 54 6.8 M5x0.8 12 3.2 4.5 60 T25 7.5 55 6.8 M5x0.8 10.5 3.2 4.5 60 T25 7.5 6S 8.5 M6x1.0 13 4.4 5.6 60 T30 10.0 6 8.5 M6x1.0 16 4.4 5.6 60 T30 10.0 TPS20 2.7 M2x0.4 3.5 1.3 1.8 60 6IP 0.6 ASX44S Type Cutter 22 3.0 M2.2x0.45 4.7 1.6 2.1 60 7IP 0.6 ASX400 Type Cutter 22S 3.0 M2.2x0.45 4.2 1.6 2.1 60 7IP 0.6 APX3000 Type Cutter 25 3.3 M2.5x0.45 5.5 1.7 2.1 60 7IP 1.0 APX4000 Type Cutter MVX Drill 25-1 3.3 M2.5x0.45 6.5 1.7 2.1 60 7IP 1.0 ARX Type Cutter 3 3.9 M3x0.5 6.7 1.4 2.82 60 IP10 1.0 MVX Drill 35 5.3 M3.5x0.6 11.5 2.8 3.4 60 15IP 3.5 PMR Type Cutter 351 4.8 M3.5x0.6 7.2 1.4 2.82 60 IP10 2.5 MVX Drill 4 5.3 M4x0.7 8 2.6 3.4 60 15IP 3.5 MVX Drill 43 5.3 M4x0.7 10 2.6 3.4 60 15IP 3.5 P007 SPARE PARTS
