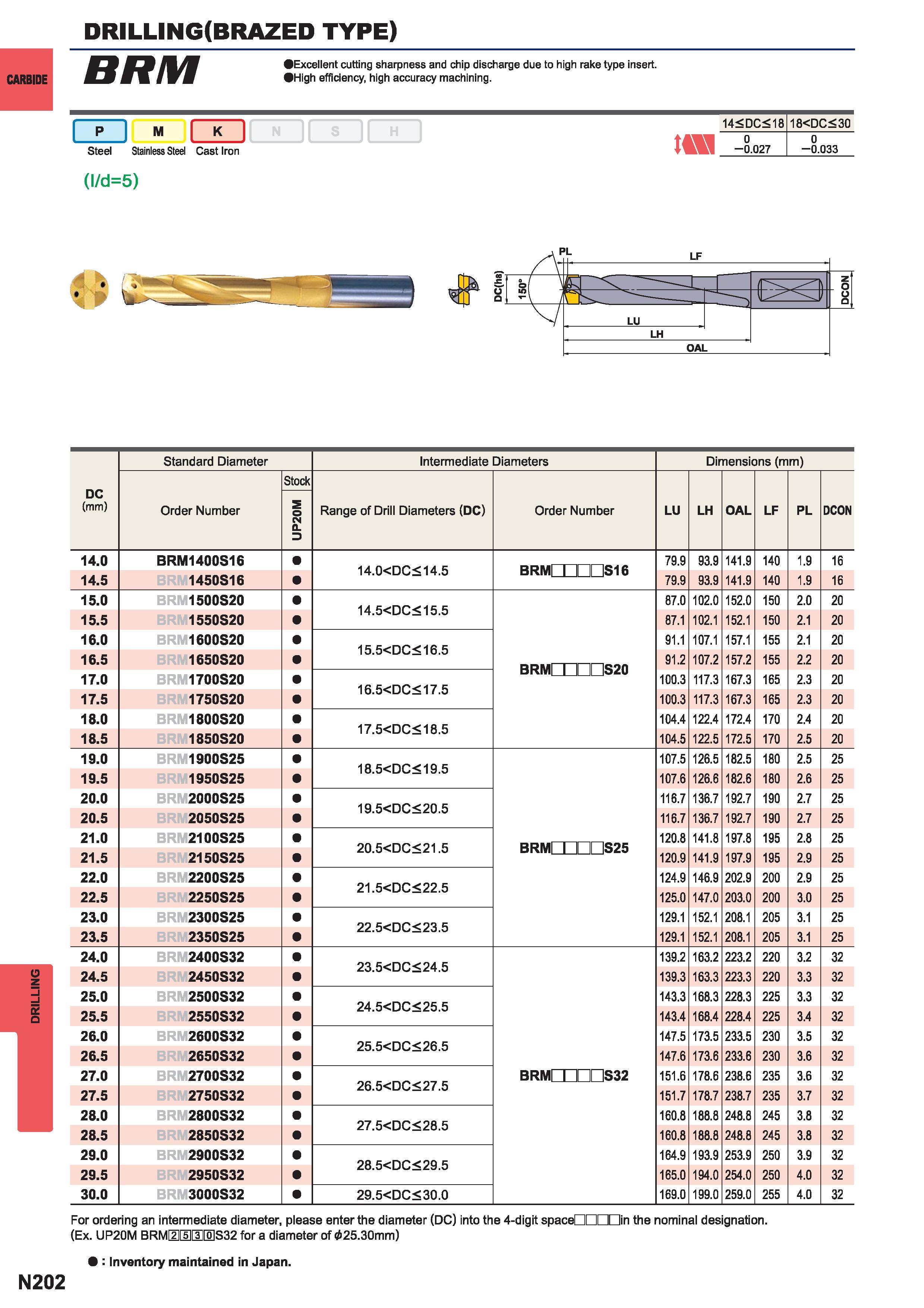

DRILLING CARBIDE DRILLING (BRAZED TYPE) Excellent cutting sharpness and chip discharge due to high rake type Insert. B IWm High efficiency high accuracy machining. 14DC18 18DC30 P 1 M K ten Steel Stainless Steel Cast Iron -0.027 -0.033 (l d5) Standard Diameter Intermediate Diameters Dimensions (mm) DC (mm) Stock Order Number UP20M Range of Drill Diameters (DC) Order Number LH OAL LF PL DCON 14.0 BRM1400S16 14.0DC14.5 BRMl IS16 79.9 93.9 141.9 140 1.9 16 14.5 1450S16 79.9 93.9 141.9 140 1.9 16 15.0 tl 1500S20 14.5DC15.5 87.0 102.0 152.0 150 2.0 20 15.5 1550S20 87.1 102.1 152.1 150 2.1 20 16.0 tl 1600S20 15.5DC16.5 91.1 107.1 157.1 155 2.1 20 16.5 1650S20 BRMl IS20 91.2 107.2 157.2 155 2.2 20 17.0 tl 1700S20 16.5DC17.5 100.3 117.3 167.3 165 2.3 20 17.5 1750S20 100.3 117.3 167.3 165 2.3 20 18.0 Rl 1800S20 17.5DC18.5 104.4 122.4 172.4 170 2.4 20 18.5 1850S20 104.5 122.5 172.5 170 2.5 20 19.0 tl 1900S25 18.5DC19.5 107.5 126.5 182.5 180 2.5 25 19.5 1950S25 107.6 126.6 182.6 180 2.6 25 20.0 2000S25 19.5DC20.5 116.7 136.7 192.7 190 2.7 25 20.5 2050S25 116.7 136.7 192.7 190 2.7 25 21.0 2100S25 20.5DC21.5 BRMl IS25 120.8 141.8 197.8 195 2.8 25 21.5 2150S25 120.9 141.9 197.9 195 2.9 25 22.0 2200S25 21.5DC22.5 124.9 146.9 202.9 200 2.9 25 22.5 2250S25 125.0 147.0 203.0 200 3.0 25 23.0 2300S25 22.5DC23.5 129.1 152.1 208.1 205 3.1 25 23.5 2350S25 129.1 152.1 208.1 205 3.1 25 24.0 2400S32 23.5DC24.5 139.2 163.2 223.2 220 3.2 32 24.5 2450S32 139.3 163.3 223.3 220 3.3 32 25.0 2500S32 24.5DC25.5 143.3 168.3 228.3 225 3.3 32 25.5 2550S32 143.4 168.4 228.4 225 3.4 32 26.0 2600S32 25.5DC26.5 147.5 173.5 233.5 230 3.5 32 26.5 2650S32 147.6 173.6 233.6 230 3.6 32 27.0 2700S32 26.5DC27.5 BRMl IS32 151.6 178.6 238.6 235 3.6 32 27.5 2750S32 151.7 178.7 238.7 235 3.7 32 28.0 2800S32 27.5DC28.5 160.8 188.8 248.8 245 3.8 32 28.5 2850S32 160.8 188.8 248.8 245 3.8 32 29.0 2900S32 28.5DC29.5 164.9 193.9 253.9 250 3.9 32 29.5 2950S32 165.0 194.0 254.0 250 4.0 32 30.0 3000S32 29.5DC30.0 169.0 199.0 259.0 255 4.0 32 For ordering an intermediate diameter please enter the diameter (DC) into the 4-digit spaceDDEOn the nominal designation. (Ex. UP20M BRMf2lf5lf3l o1S32 for a diameter of 425.30mm) Inventory maintained in Japan. N202
