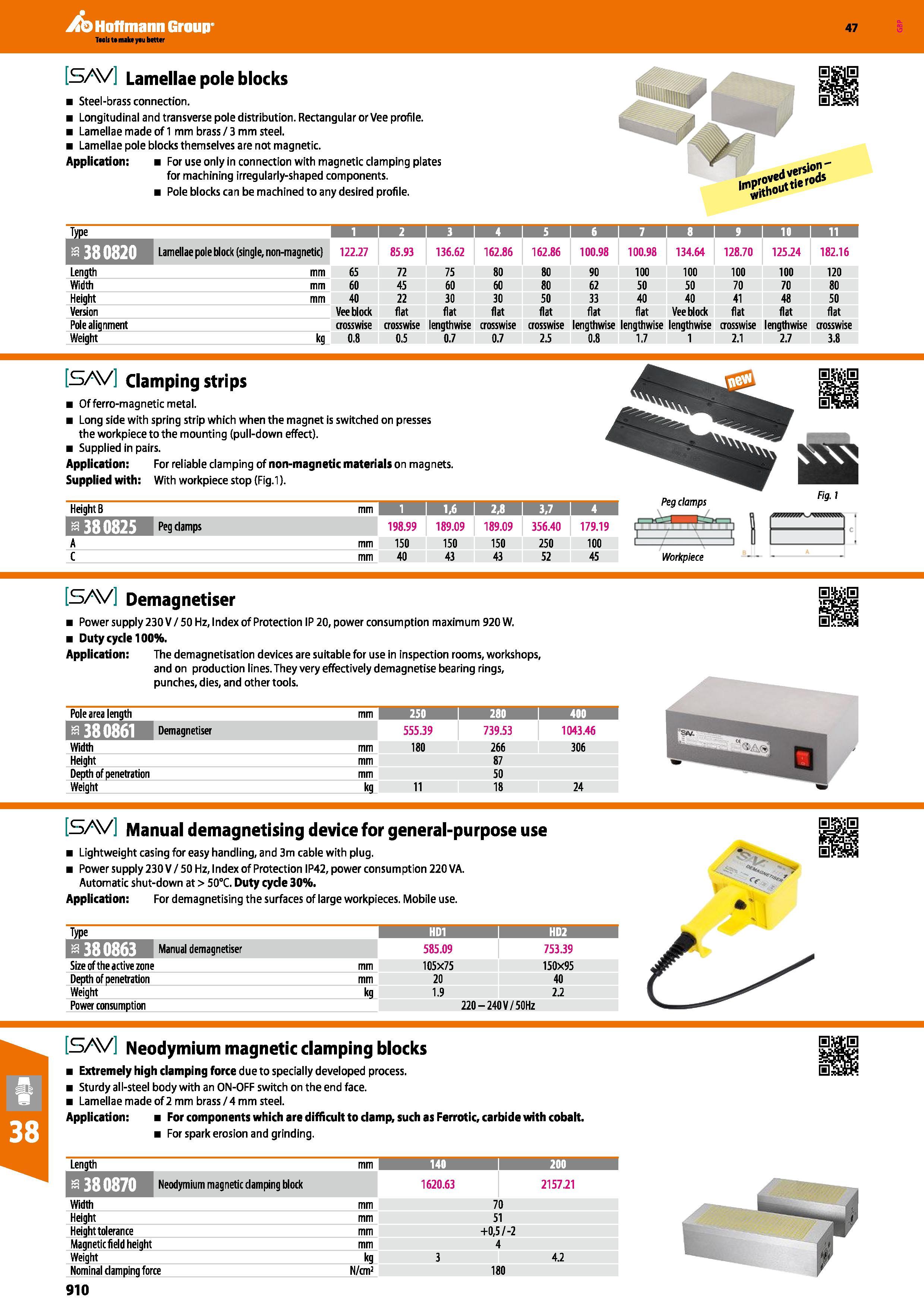

Hoffmann Group 47 S/V Lamellae pole blocks Steel-brass connection. Longitudinal and transverse pole distribution. Rectangular or Vee profile. Lamellae made of 1 mm brass /3 mm steel. Lamellae pole blocks themselves are not magnetic. Application: For use only in connection with magnetic clamping plates for machining irregularly-shaped components. Pole blocks can be machined to any desired profile. ipHi Type 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 io 11 s 380820 Lamellae pole block (single, non-magnetic) 122.27 85.93 136.62 162.86 162.86 100.98 100.98 134.64 128.70 125.24 182.16 Length mm 65 72 75 80 80 90 100 100 100 100 120 Width mm 60 45 60 60 80 62 50 50 70 70 80 Height mm 40 22 30 30 50 33 40 40 41 48 50 Version Vee block flat flat flat flat flat flat Vee block flat flat flat Pole alignment crosswise crosswise lengthwise crosswise crosswise lengthwise lengthwise lengthwise crosswise lengthwise crosswise Weight kg 0.8 0.5 0.7 0.7 2.5 0.8 1.7 1 2.1 2.7 3.8 S/V Clamping strips Of ferro-magnetic metal. Long side with spring strip which when the magnet is switched on presses the workpiece to the mounting (pull-down effect). Supplied in pairs. Application: For reliable clamping of non-magnetic materials on magnets. Supplied with: With workpiece stop (Fig.1). Height B mm 1 i 1,6 i 2,8 1 3,7 4 la38 0825 IB 198.99 189.09 189.09 356.40 179.19 A mm 150 150 150 250 100 C mm 40 43 43 52 45 Peg damps Fig. 1 Workpiece S/V Demagnetiser Power supply 230 V/50 Hz, Index of Protection IP 20, power consumption maximum 920 W. Duty cycle 100%. Application: The demagnetisation devices are suitable for use in inspection rooms, workshops, and on production lines. They very effectively demagnetise bearing rings, punches, dies, and other tools. Pole area length mm 250 I 280 I 400 i 1 - 380861 555.39 739.53 1043.46 Width mm 180 266 306 Height mm 87 Depth of penetration mm 50 Weight kg 11 18 24 S/V Manual demagnetising device for general-purpose use Lightweight casing for easy handling, and 3m cable with plug. Power supply 230 V/ 50 Hz, Index of Protection IP42, power consumption 220 VA. Automatic shut-down at > 50°C. Duty cycle 30%. Application: For demagnetising the surfaces of large workpieces. Mobile use. Type Irl'l iiB Manual demagnetiser 585.09 753.39 Size of the active zone mm 105x75 150x95 Depth of penetration mm 20 40 Weight kg 1.9 2.2 Power consumption 220 - 240V/50HZ S/V Neodymium magnetic clamping blocks Extremely high clamping force due to specially developed process. Sturdy all-steel body with an ON-OFF switch on the end face. Lamellae made of 2 mm brass/4 mm steel. Application: For components which are difficult to clamp, such as Ferrotic, carbide with cobalt. For spark erosion and grinding. jpim Length mm 140 I 200 i Neodymium magnetic clamping block 1620.63 2157.21 Width mm 70 Height mm 51 Height tolerance mm +0,5/-2 Magnetic field height mm 4 Weight kg 3 4.2 Nominal clamping force N/cmJ 180 910
