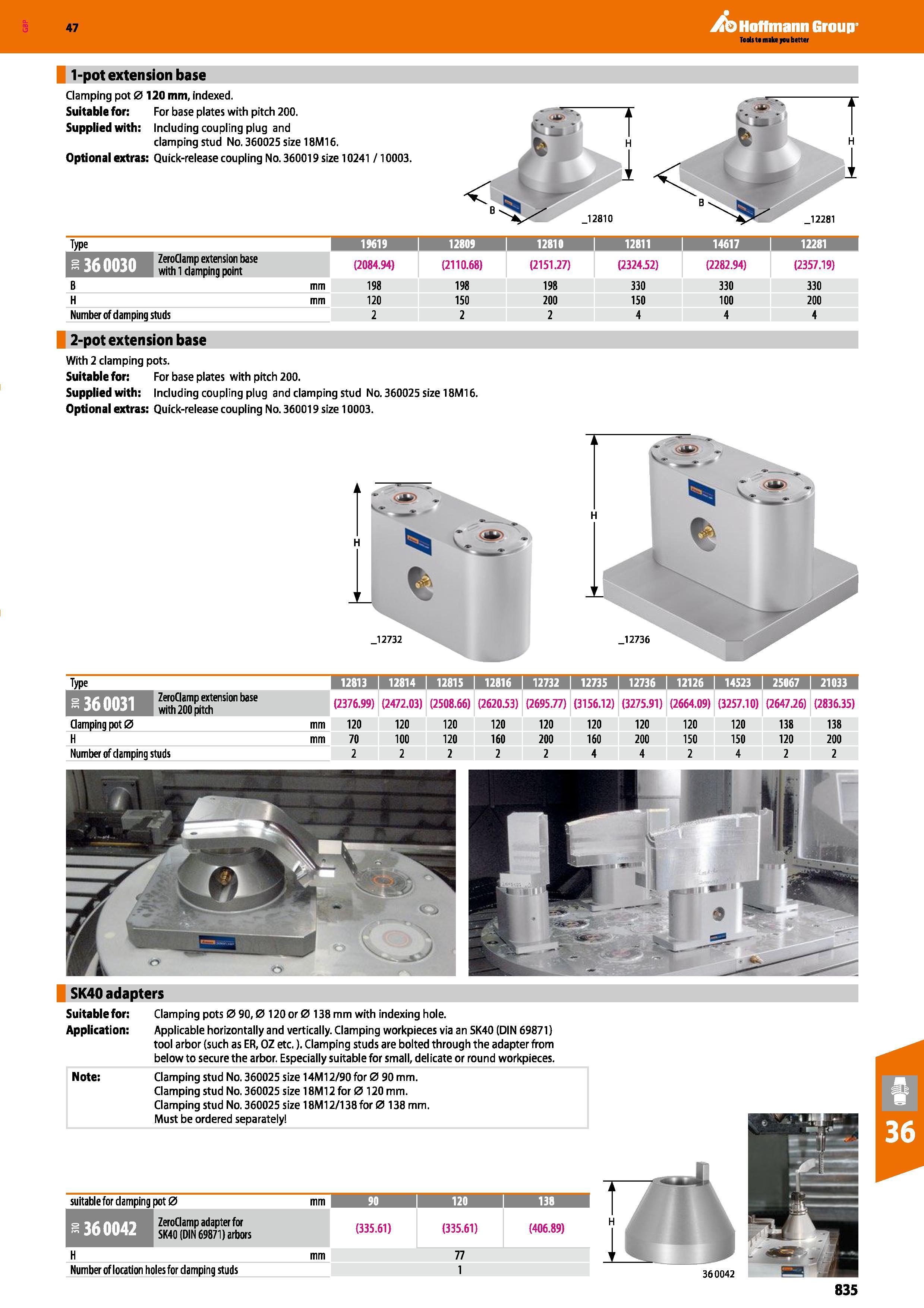

Hoffmann Group 47 1-pot extension base Clamping pot 0120 mm, indexed. Suitable for: For base plates with pitch 200. Supplied with: Including coupling plug and clamping stud No. 360025 size 18M16. Optional extras: Quick-release coupling No. 360019 size 10241 /10003. < n I n 1 _12810 12281 Type 1 19619 1 12809 12810 I 12811 14617 1 12281 HWIfWIB ZeroClamp extension base i with 1 clamping point (2084.94) (2110.68) (2151.27) (2324.52) (2282.94) (2357.19) B mm 198 198 198 330 330 330 H mm 120 150 200 150 100 200 Number of damping studs 2 2 2 4 4 4 2-pot extension base With 2 clamping pots. Suitable for: For base plates with pitch 200. Supplied with: Including coupling plug and clamping stud No. 360025 size 18M16. Optional extras: Quick-release coupling No. 360019 size 10003. J 2736 12814 12815 12816 12732 12735 12736 12126 14523 25867 21033 Type ZeroClamp extension base with 200 pitch Clamping pot 0 H Number of damping studs -36 0031 (2376.99) (2472.03) (2508.66) (2620.53) (2695.77) (3156.12) (3275.91) (2664.09) (3257.10) (2647.26) (2836.35) 120 120 120 120 120 120 120 120 120 138 138 70 100 120 160 200 160 200 150 150 120 200 2 2 2 2 2 4 4 2 4 2 2 SK40 adapters Suitable for: Application: Note: Clamping pots 0 90,0 120 or 0 138 mm with indexing hole. Applicable horizontally and vertically. Clamping workpieces via an 5K40 (DIN 69871) tool arbor (such as ER, OZ etc.). Clamping studs are bolted through the adapter from below to secure the arbor. Especially suitable for small, delicate or round workpieces. Clamping stud No. 360025 size 14M12/90 for 0 90 mm. Clamping stud No. 360025 size 18M12 for 0120 mm. Clamping stud No. 360025 size 18M12/138 for 0 138 mm. Must be ordered separately suitable for clamping pot 0 mm 90 I 120 1 138 ZeroClamp adapter for SK40 (DIN 69871) arbors (335.61) (335.61) (406.89) H mm 77 Number of location holes for clamping studs 360042 835
