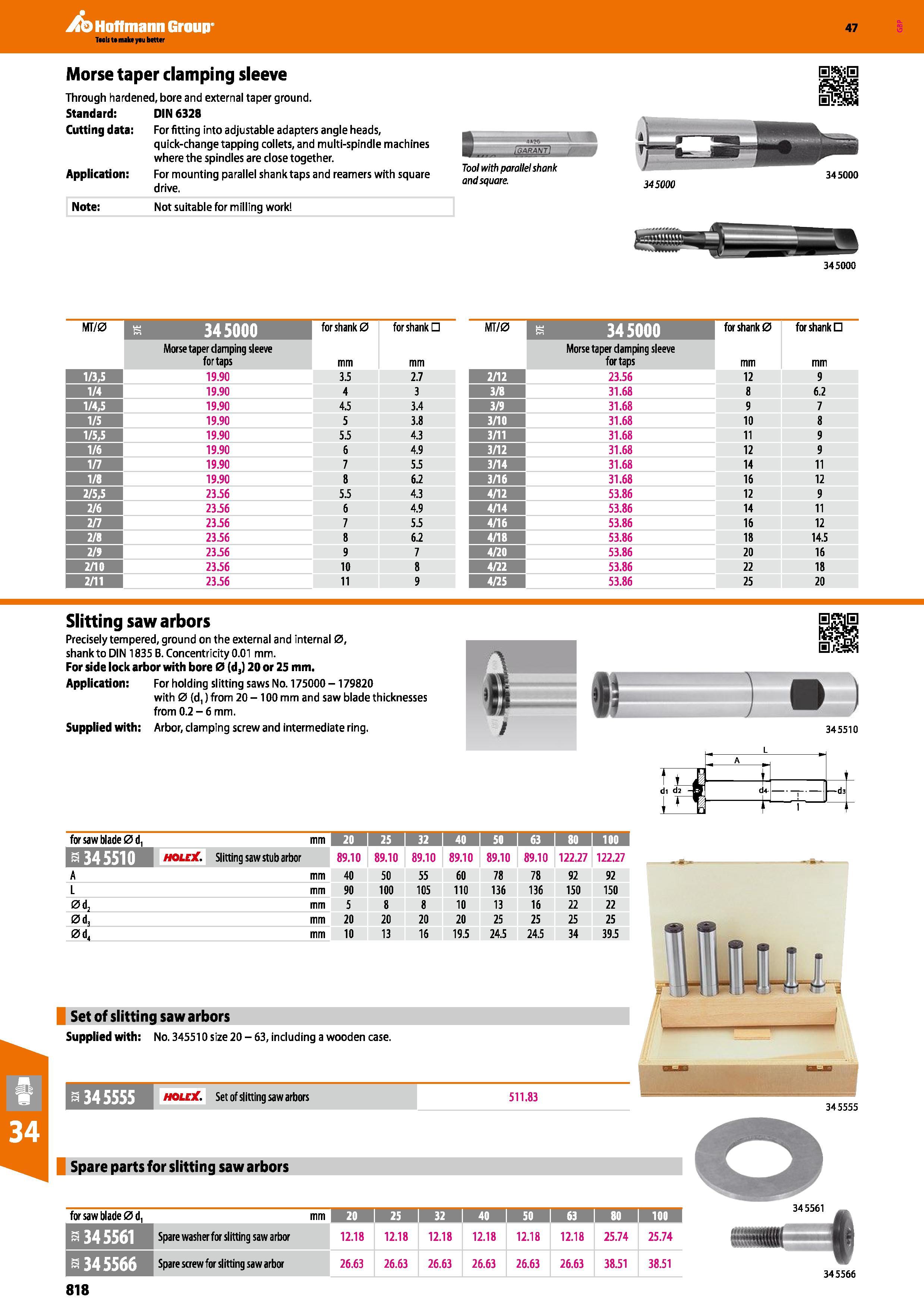

818 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.818

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 818 0818 ENG Lab2u

Hoffmann Group 47 Morse taper clamping sleeve Through hardened, bore and external taper ground. Standard: DIN 6328 Cutting data: For fitting into adjustable adapters angle heads, quick-change tapping collets, and multi-spindle machines where the spindles are close together. Application: For mounting parallel shank taps and reamers with square drive. i. i GAR ANTI / Tool with parallel shank and square. 345000 345000 Note: Not suitable for milling work 345000 MT/0 345000 for shank 0 for shank MT/0 for shank 0 for shank Morse taper damping sleeve for taps mm Morse taper damping sleeve for taps mm 1/3,5 19.90 3.5 2.7 2/12 23.56 12 9 1/4 19.90 4 3 3/8 31.68 8 6.2 1/4,5 19.90 4.5 3.4 3/9 31.68 9 7 1/5 19.90 5 3.8 3/10 31.68 10 8 1/5,5 19.90 5.5 4.3 3/11 31.68 11 9 1/6 19.90 6 4.9 3/12 31.68 12 9 1/7 19.90 7 5.5 3/14 31.68 14 11 1/8 19.90 8 6.2 3/16 31.68 16 12 2/5,5 23.56 5.5 4.3 4/12 53.86 12 9 2/6 23.56 6 4.9 4/14 53.86 14 11 2/7 23.56 7 5.5 4/16 53.86 16 12 2/8 23.56 8 6.2 4/18 53.86 18 14.5 219 23.56 9 7 4/20 53.86 20 16 2/10 23.56 10 8 4/22 53.86 22 18 2/11 23.56 11 9 4/25 53.86 25 20 Slitting saw arbors Precisely tempered, ground on the external and internal 0, shank to DIN 1835 B. Concentricity 0.01 mm. For side lock arbor with bore 0 (d,) 20 or 25 mm. Application: For holding slitting saws No. 175000 -179820 with 0 (d,) from 20 -100 mm and saw blade thicknesses from 0.2 - 6 mm. Supplied with: Arbor, clamping screw and intermediate ring. I 345510 for saw blade 0d, mm 20 I 25 1 32 I 40 1 50 1 63 I 80 I 100 1 Is 345510 hole . Slitting saw stub arbor 89.10 89.10 89.10 89.10 89.10 89.10 122.27 122.27 A mm 40 50 55 60 78 78 92 92 L mm 90 100 105 110 136 136 150 150 0d2 mm 5 8 8 10 13 16 22 22 0d3 mm 20 20 20 20 25 25 25 25 0d4 mm 10 13 16 19.5 24.5 24.5 34 39.5 Set of slitting saw arbors Supplied with: No. 345510 size 20 - 63, including a wooden case. I holejC. Set of slitting saw arbors 511.83 345555 Spare parts for slitting saw arbors for saw Wade 0 d. mm I 25 I 32 40 50 immi 80 I 100 I 3 345561 Spare washer for slitting saw arbor 12.18 12.18 12.18 12.18 12.18 12.18 25.74 25.74 s 345566 Spare screw for slitting saw arbor 26.63 26.63 26.63 26.63 26.63 26.63 38.51 38.51 345566 818
