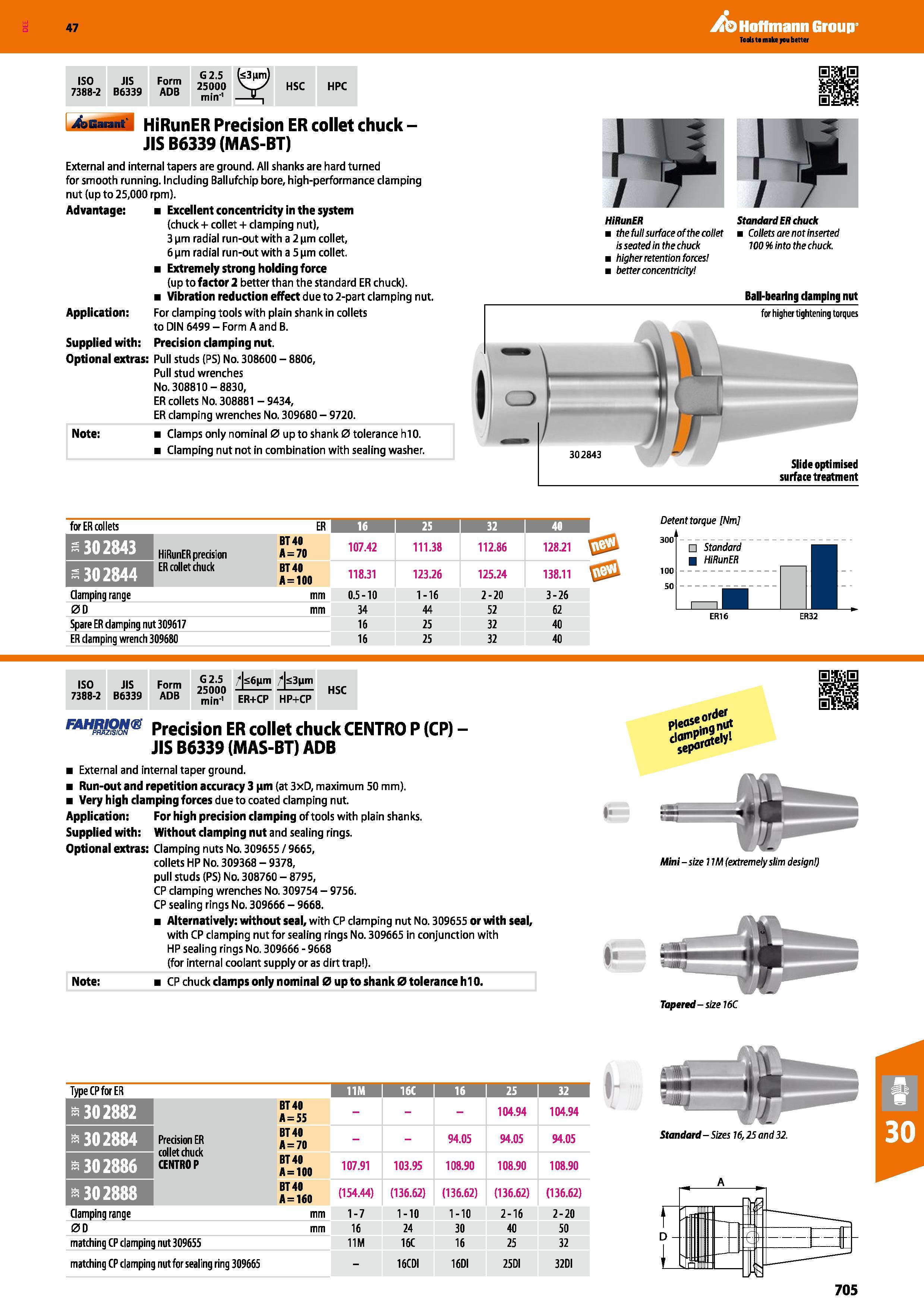

47 ISO 7388-2 JIS B6339 Form ADB G 2.5 25000 min'1 b3nm) HSC HPC 1 4aBM id HiRunER Precision ER collet chuck -JIS B6339 (MAS-BT) External and internal tapers are ground. All shanks are hard turned for smooth running. Including Ballufchip bore, high-performance clamping nut (up to 25,000 rpm). Advantage: Application: Supplied with: Optional extras: Note: Excellent concentricity in the system (chuck + collet + clamping nut), 3 Mm radial run-out with a 2 (im collet, 6 nm radial run-out with a 5 jim collet. Extremely strong holding force (up to factor 2 better than the standard ER chuck). Vibration reduction effect due to 2-part clamping nut. For clamping tools with plain shank in collets to DIN 6499 - Form A and B. Precision clamping nut. Pull studs (PS) No. 308600 - 8806, Pull stud wrenches No. 308810-8830, ER collets No. 308881 -9434, ER clamping wrenches No. 309680 - 9720. Clamps only nominal 0 up to shank 0 tolerance hi 0. Clamping nut not in combination with sealing washer. Hoffmann Group HiRunER m the full surface of the collet is seated in the chuck m higher retention forces m better concentricity Standard ER chuck m Collets are not inserted 100% into the chuck. for ER collets ER 16 I 23 1 32 i 40 -302843 HiRunER precision ERcolletchuck BT40 A = 70 107.42 111.38 112.86 128.21 -302844 BT40 A = 100 118.31 123.26 125.24 138.11 Clamping range mm 0.5-10 1-16 2-20 3-26 0D mm 34 44 52 62 Spare ER damping nut 309617 16 25 32 40 ER damping wrench 309680 16 25 32 40 Detent torque Nm 300“ 100 50 Standard HiRunER i 7 rr R M 4UnH 25000 HSC 7388-2 B6339 ADB mjn-i ER+CP HP+CP Precision ER collet chuck CENTRO P (CP) -JIS B6339 (MAS-BT) ADB External and internal taper ground. Run-out and repetition accuracy 3 im (at 3xD, maximum 50 mm). Very high clamping forces due to coated clamping nut. Application: For high precision clamping of tools with plain shanks. Supplied with: Without clamping nut and sealing rings. Optional extras: Clamping nuts No. 309655 / 9665, collets HP No. 309368 - 9378, pull studs (PS) No. 308760 - 8795, CP clamping wrenches No. 309754 - 9756. CP sealing rings No. 309666 - 9668. Alternatively: without seal, with CP clamping nut No. 309655 or with seal, with CP clamping nut for sealing rings No. 309665 in conjunction with HP sealing rings No. 309666 - 9668 (for internal coolant supply or as dirt trap ). Note: CP chuck clamps only nominal 0 up to shank 0 tolerance hi 0. Tapered-size 16C Type CP for ER t 11M i 16C i 16 1 25 1 32 s302882 BT40 A = 55 - 104.94 104.94 -302884 Precision ER BT40 A = 70 94.05 94.05 94.05 s302886 collet chuck CENTROP BT40 A = 100 107.91 103.95 108.90 108.90 108.90 3 302888 BT40 A = 160 (154.44) (136.62) (136.62) (136.62) (136.62) Clamping range mm 1-7 1-10 1-10 2-16 2-20 0D mm 16 24 30 40 50 matching CP clamping nut 309655 11M 16C 16 25 32 matching CP clamping nut for sealing ring 309665 - 16CDI 16DI 25DI 32DI f Standard - Sizes 16,25 and 32. Ball-bearing damping nut for higher tightening torques Slide optimised surface treatment Mini-size 17A1 (extremely slim design ) 705
