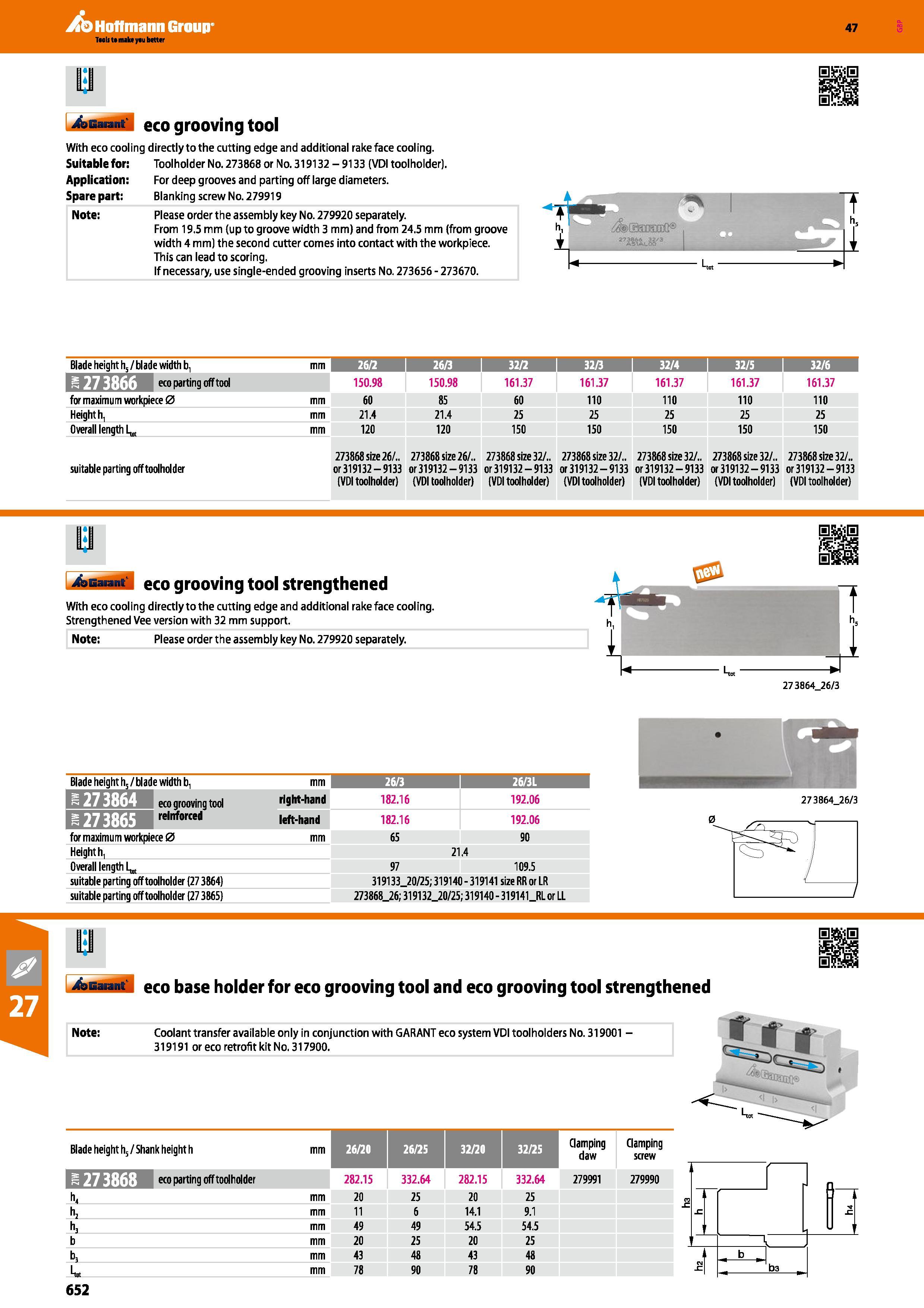

Hoffmann Group 47 4asat M eco grooving tool With eco cooling directly to the cutting edge and additional rake face cooling. Suitable for: Toolholder No. 273868 or No. 319132 - 9133 (VDI toolholder). Application: For deep grooves and parting off large diameters. Spare part: Blanking screw No. 279919 Note: Please order the assembly key No. 279920 separately. From 19.5 mm (up to groove width 3 mm) and from 24.5 mm (from groove width 4 mm) the second cutter comes into contact with the workpiece. This can lead to scoring. If necessary, use single-ended grooving inserts No. 273656 - 273670. a; if 3 Blade height h. / blade width b. mm 26/2 i 26/3 i 32/2 i 32/3 i 32/4 i 32/5 I 32/6 f eco parting off tool 150.98 150.98 161.37 161.37 161.37 161.37 161.37 for maximum workpiece 0 mm 60 85 60 110 110 110 110 Height h, mm 21.4 21.4 25 25 25 25 25 Overall length L, mm 120 120 150 150 150 150 150 suitable parting off toolholder 273868 size 26/.. or 319132-9133 (VDI toolholder) 273868 size 26/.. or 319132-9133 (VDI toolholder) 273868 size 32/.. or 319132-9133 (VDI toolholder) 273868 size 32/.. or 319132-9133 (VDI toolholder) 273868 size 32/.. or 319132-9133 (VDI toolholder) 273868 size 32/.. or 319132-9133 (VDI toolholder) 273868 size 32/.. or 319132-9133 (VDI toolholder) /bGarant eco grooving tool strengthened With eco cooling directly to the cutting edge and additional rake face cooling. Strengthened Vee version with 32 mm support. Note: Please order the assembly key No. 279920 separately. 27 3864_26/3 Blade height h, / blade width b. mm 26/3 i 26/3L j -r 273864 right-hand 182.16 192.06 s 273865 iDI left-hand 182.16 192.06 for maximum workpiece 0 Height h, Overall length l , suitable parting off toolholder (27 3864) suitable parting off toolholder (27 3865) 65 90 21.4 97 109.5 319133_20/25; 319140 - 319141 size RR or LR 273868_26; 319132.20/25; 319140 - 319141_RLor LL . bGaiant eco base holder for eco grooving tool and eco grooving tool strengthened Note: Coolant transfer available only in conjunction with GARANT eco system VDI toolholders No. 319001 -319191 or eco retrofit kit No. 317900. Blade height h5 / Shank height h mm 26/20 26/25 32/20 32/25 Clamping daw Clamping screw EE7rfTh:l eco parting off toolholder 282.15 332.64 282.15 332.64 279991 279990 mm 20 25 20 25 mm 11 6 14.1 9.1 mm 49 49 54.5 54.5 b mm 20 25 20 25 b3 mm 43 48 43 48 mm 78 90 78 90 b3 652
