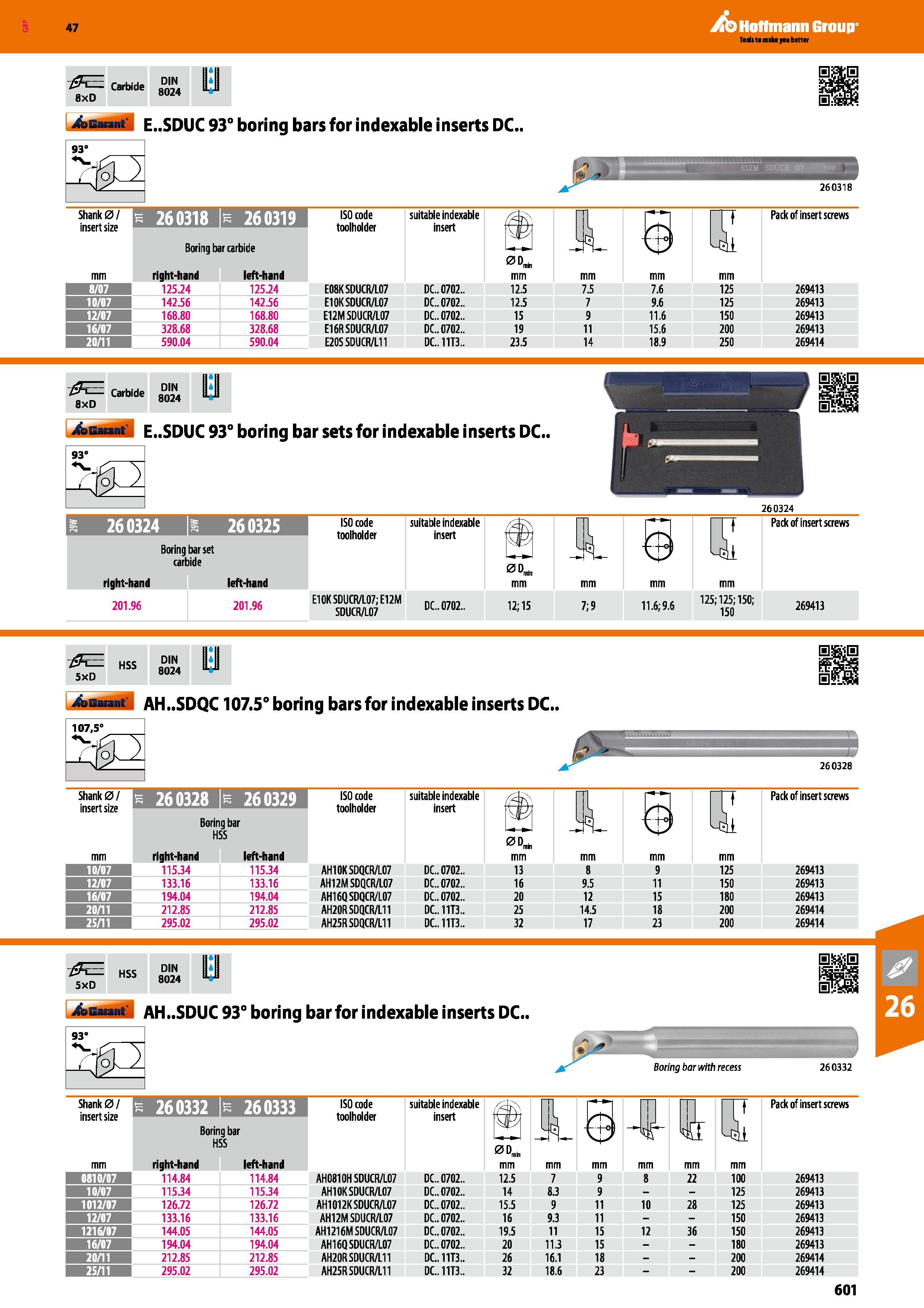

601 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.601

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 601 0601 ENG Lab2u

Hoffmann Group 47 4asu M E..SDUC 93° boring bars for indexable inserts DC 93“ mm right-hand left-hand 0Dmn mm 8/07 125.24 125.24 E08K SDUCR/L07 DC.. 0702.. 12.5 7.5 7.6 125 269413 10/07 142.56 142.56 E10KSDUCR/L07 DC.. 0702.. 12.5 7 9.6 125 269413 12/07 168.80 168.80 E12M SDUCR/L07 DC.. 0702.. 15 9 11.6 150 269413 16/07 328.68 328.68 E16RSDUCR/L07 DC.. 0702.. 19 11 15.6 200 269413 20/11 590.04 590.04 E20S SDUCR/L11 DC..11T3.. 23.5 14 18.9 250 269414 Carbide 8xD DIN 8024 E..SDUC 93° boring bar sets for indexable inserts DC.. 93“ £ 260324 R 260325 Boring bar set carbide right-hand left-hand 201.96 201.96 260324 ISO code toolholder suitable indexable insert Pack of insert screws E10K SDUCR/L07; E12M SDUCR/L07 DC.. 0702.. 12:15 mm 7:9 mm 11.6; 9.6 125; 15°; 269413 .0= 5xD HSS DIN 8024 4uia fli AH..SDQC 107.5° boring bars for indexable inserts DC. 107,5“ £ 260328 Shank 0/ insertsize 260328 Boring bar HSS mm right-hand left-hand 10/07 115.34 115.34 12/07 133.16 133.16 16/07 194.04 194.04 20/11 212.85 212.85 25/11 295.02 295.02 ISO code toolholder suitable indexable insert Pack of insert screws 0Dmn mm AH10KSDQCR/L07 DC.. 0702.. 13 8 9 125 269413 AH12M SDQCR/L07 DC.. 0702.. 16 9.5 11 150 269413 AH16QSDQCR/L07 DC.. 0702.. 20 12 15 180 269413 AH20RSDQCR/L11 DC..11T3.. 25 14.5 18 200 269414 AH25RSDQCR/L11 DC..11T3.. 32 17 23 200 269414 5xD HSS DIN 8024 bGjmin AH..SDUC 93° boring bar for indexable inserts DC.. Boring bar with recess 260332 Shank 0/ insertsize 260332 260333 ISO code toolholder suitable indexable insert Pack of insert screws mm HSS right-hand left-hand 0D “mn mm T-4 mm M-L mm 0810/07 114.84 114.84 AH0810H SDUCR/L07 DC.. 0702.. 12.5 7 9 8 22 100 269413 10/07 115.34 115.34 AH10KSDUCR/L07 DC.. 0702.. 14 8.3 9 125 269413 1012/07 126.72 126.72 AH1012KSDUCR/L07 DC.. 0702.. 15.5 9 11 10 28 125 269413 12/07 133.16 133.16 AH12M SDUCR/L07 DC.. 0702.. 16 9.3 11 150 269413 1216/07 144.05 144.05 AH1216M SDUCR/L07 DC.. 0702.. 19.5 11 15 12 36 150 269413 16/07 194.04 194.04 AH16QSDUCR/L07 DC.. 0702.. 20 11.3 15 180 269413 20/11 212.85 212.85 AH20RSDUCR/L11 DC..11T3.. 26 16.1 18 200 269414 25/11 295.02 295.02 AH25RSDUCR/L11 DC..11T3.. 32 18.6 23 200 269414 601
