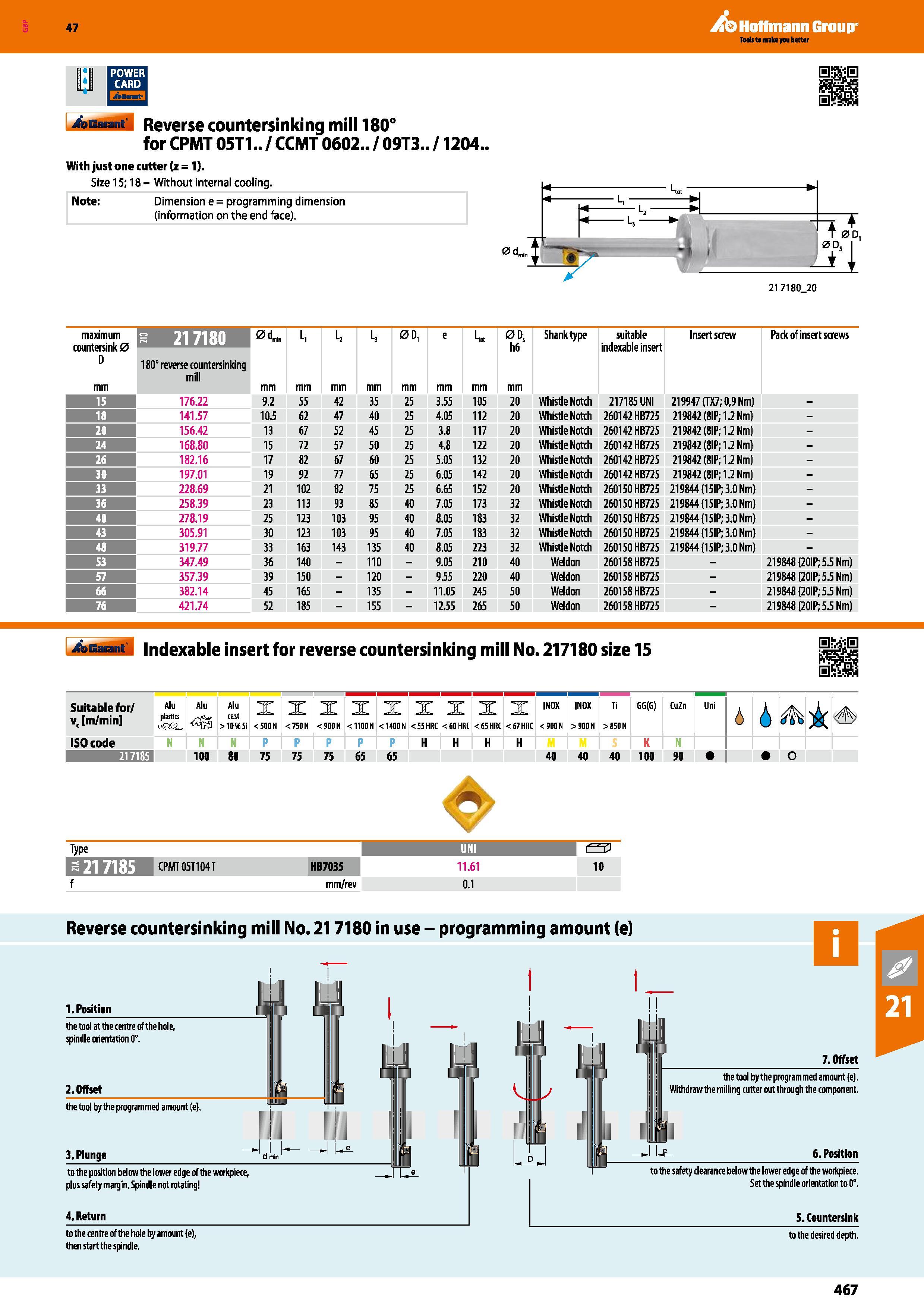

Hoffmann Group 47 III POWER CARD 4asat M Reverse countersinking mill 180° for CPMT 05T1.. / CCMT 0602.. / 09T3.. /1204. With just one cutter (z = 1). Size 15; 18 - Without internal cooling. Note: Dimension e = programming dimension (information on the end face). maximum countersink 0 S 217180 0d . umin L, 0D, e L 0D h6 Shank type suitable indexable insert Insert screw Pack of insert screws D 180° reverse countersinking mill mm 15 176.22 9.2 55 42 35 25 3.55 105 20 Whistle Notch 217185 UNI 219947 gX7; 0,9 Nm) - 18 141.57 10.5 62 47 40 25 4.05 112 20 Whistle Notch 260142 HB725 219842 (8IP; 1.2 Nm) - 20 156.42 13 67 52 45 25 3.8 117 20 Whistle Notch 260142 HB725 219842 (8IP; 1.2 Nm) - 24 168.80 15 72 57 50 25 4.8 122 20 Whistle Notch 260142 HB725 219842 (8IP; 1.2 Nm) - 26 182.16 17 82 67 60 25 5.05 132 20 Whistle Notch 260142 HB725 219842 (8IP; 1.2 Nm) - 30 197.01 19 92 77 65 25 6.05 142 20 Whistle Notch 260142 HB725 219842 (8IP; 1.2 Nm) - 33 228.69 21 102 82 75 25 6.65 152 20 Whistle Notch 260150 HB725 219844 (15IP; 3.0 Nm) - 36 258.39 23 113 93 85 40 7.05 173 32 Whistle Notch 260150 HB725 219844 (15IP; 3.0 Nm) - 40 278.19 25 123 103 95 40 8.05 183 32 Whistle Notch 260150 HB725 219844 (15IP; 3.0 Nm) - 43 305.91 30 123 103 95 40 7.05 183 32 Whistle Notch 260150 HB725 219844 (15IP; 3.0 Nm) - 319.77 33 163 143 135 40 8.05 223 32 Whistle Notch 260150 HB725 219844 (15IP; 3.0 Nm) - 53 347.49 36 140 - 110 - 9.05 210 40 Weldon 260158 HB725 - 219848 (20IP; 5.5 Nm) 57 357.39 39 150 - 120 - 9.55 220 40 Weldon 260158 HB725 - 219848 (20IP; 5.5 Nm) 382.14 45 165 - 135 - 11.05 245 50 Weldon 260158 HB725 - 219848 (20IP; 5.5 Nm) 76 421.74 52 185 - 155 - 12.55 265 50 Weldon 260158 HB725 - 219848 (20IP; 5.5 Nm) Garant Indexable insert for reverse countersinking mill No. 217180 size 15 Suitable for/ vc m/min Alu plastiu omu Alu cast >10%Si X < 500 N X < 750 N X < 900 N X < 1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC INOX < 900 N INOX >900 N Ti > 50N GG(G) CuZn Uni 6 6 ISO code N hn P ”1 P H K N 217185 100 80 75 75 75 65 65 40 40 40 100 90 o Type UNI si Is217185 ESCB HB7035 11.61 10 f mm/rev 0.1 Reverse countersinking mill No. 217180 in use - programming amount (e) 7. Offset J Li- the tnd 19 the program med amount (e). Withdraw the milling cutter out through the component. 6. Position to the safety clearance below the lower edge of the workpiece. Set the spindle orientation to 0°. 5. Countersink then start the spindle. to the desired depth. 467
