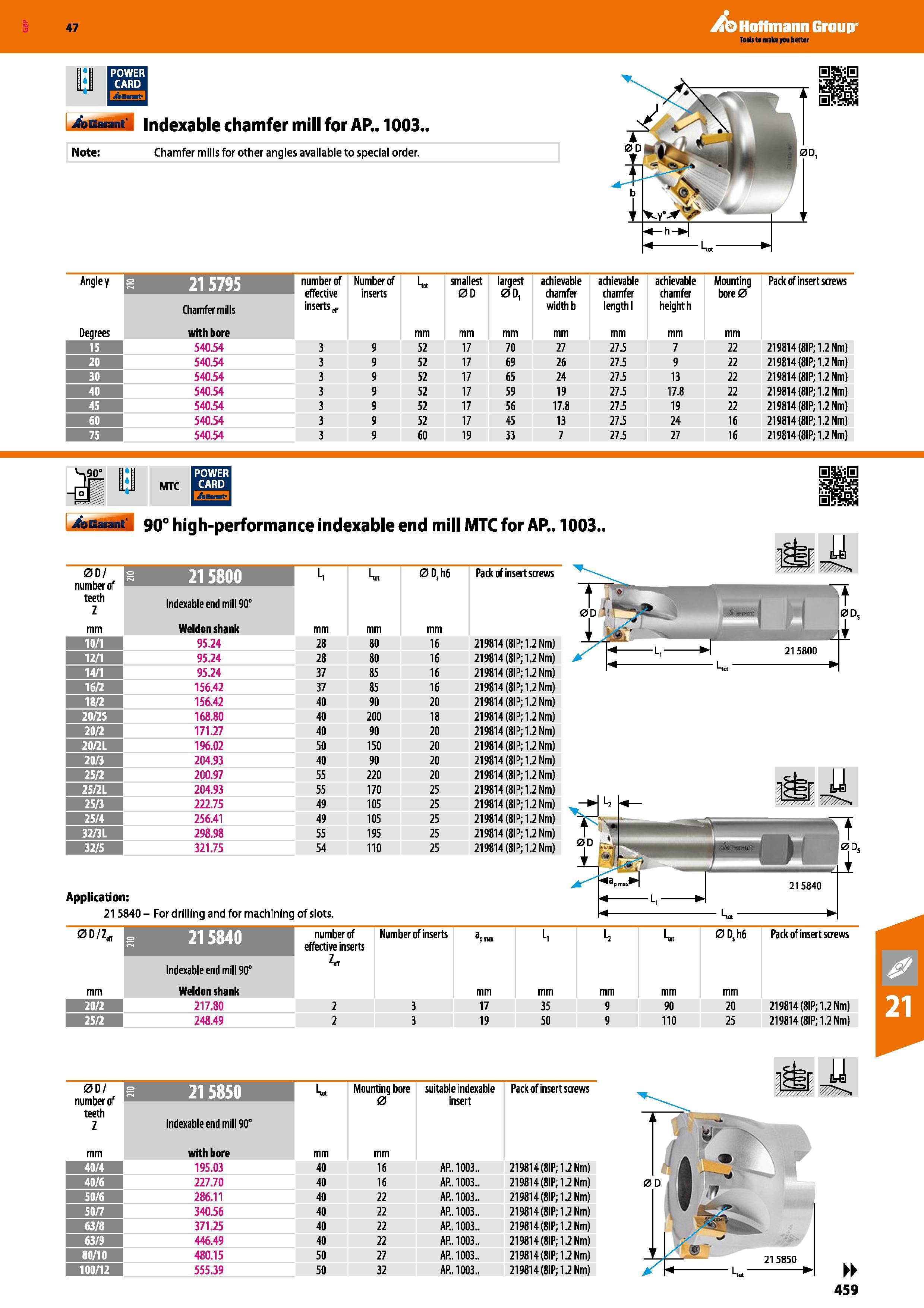

Hoffmann Group 47 III POWER CARD 4asu M Indexable chamfer mill for AP.. 1003.. Note: Chamfer mills for other angles available to special order. Angle y s 215795 number of effective inserts Number of inserts L smallest 0D largest 0D, achievable chamfer width b achievable chamfer length 1 achievable chamfer height h Mounting bore0 Pack of insert screws Chamfer mills Degrees with bore mm 15 540.54 3 9 52 17 70 27 27.5 7 22 219814 (8IP;1.2 Nm) 20 540.54 3 9 52 17 69 26 27.5 9 22 219814 (8IP;1.2Nm) 30 540.54 3 9 52 17 65 24 27.5 13 22 219814 (8IP;1.2Nm) 40 540.54 3 9 52 17 59 19 27.5 17.8 22 219814 (8IP;1.2Nm) 45 540.54 3 9 52 17 56 17.8 27.5 19 22 219814 (8IP;1.2Nm) 60 540.54 3 9 52 17 45 13 27.5 24 16 219814 (8IP;1.2Nm) 75 540.54 3 9 60 19 33 7 27.5 27 16 219814 (8IP;1.2Nm) MTC 90° high-performance indexable end mill MTC for AP.. 1003. 00/ number of teeth Z L, L 0Dsh6 Pack of insert screws Indexable end mill 90° mm Weldon shank mm 10/1 95.24 28 80 16 219814 (8IP 1.2 Nm) 12/1 95.24 28 80 16 219814 (8IP 1.2 Nm) 14/1 95.24 37 85 16 219814 (8IP 1.2 Nm) 16/2 156.42 37 85 16 219814 (8IP 1.2 Nm) 18/2 156.42 40 90 20 219814 (8IP 1.2 Nm) 20/25 168.80 40 200 18 219814 (8IP 1.2 Nm) 20/2 171.27 40 90 20 219814 (8IP 1.2 Nm) 20/2L 196.02 50 150 20 219814 (8IP 1.2 Nm) 20/3 204.93 40 90 20 219814 (8IP 1.2 Nm) 25/2 200.97 55 220 20 219814 (8IP 1.2 Nm) 25/2L 204.93 55 170 25 219814 (8IP 1.2 Nm) 25/3 222.75 49 105 25 219814 (8IP 1.2 Nm) 25/4 256.41 49 105 25 219814 (8IP 1.2 Nm) 32/3 L 298.98 55 195 25 219814 (8IP 1.2 Nm) 32/5 321.75 54 110 25 219814 (8IP 1.2 Nm) Application: 215840- For drilling and for machining of slots. 0D/Z„ 215840 number of effective inserts Number of inserts pmm L, l2 L 0Dsh6 Pack of insert screws Indexable end mill 90° mm Weldon shank mm 20/2 H 217.80 2 3 17 35 9 90 20 219814 (8IP;1.2Nm) 25/2 Ml 248.49 2 3 19 50 9 110 25 219814 (8IP;1.2Nm) 00/ number of teeth 2 215850 L Mounting bore 0 suitable indexable insert Pack of insert screws Indexable end mill 90° mm with bore mm 40/4 195.03 40 16 AP.. 1003.. 219814 8IP; 1.2 Nm) 40/6 227.70 40 16 AP.. 1003.. 219814(8IP;1.2Nm) 50/6 286.11 40 22 AP.. 1003.. 219814(8IP; 1.2 Nm) 50/7 340.56 40 22 AP.. 1003.. 219814(8IP; 1.2 Nm) 63/8 371.25 40 22 AP.. 1003.. 219814(8IP; 1.2 Nm) 63/9 446.49 40 22 AP.. 1003.. 219814 8IP; 1.2 Nm) 80/10 480.15 50 27 AP.. 1003.. 219814 8IP; 1.2 Nm) 100/12 555.39 50 32 AP.. 1003.. 219814(8IP;1.2Nm) 459
