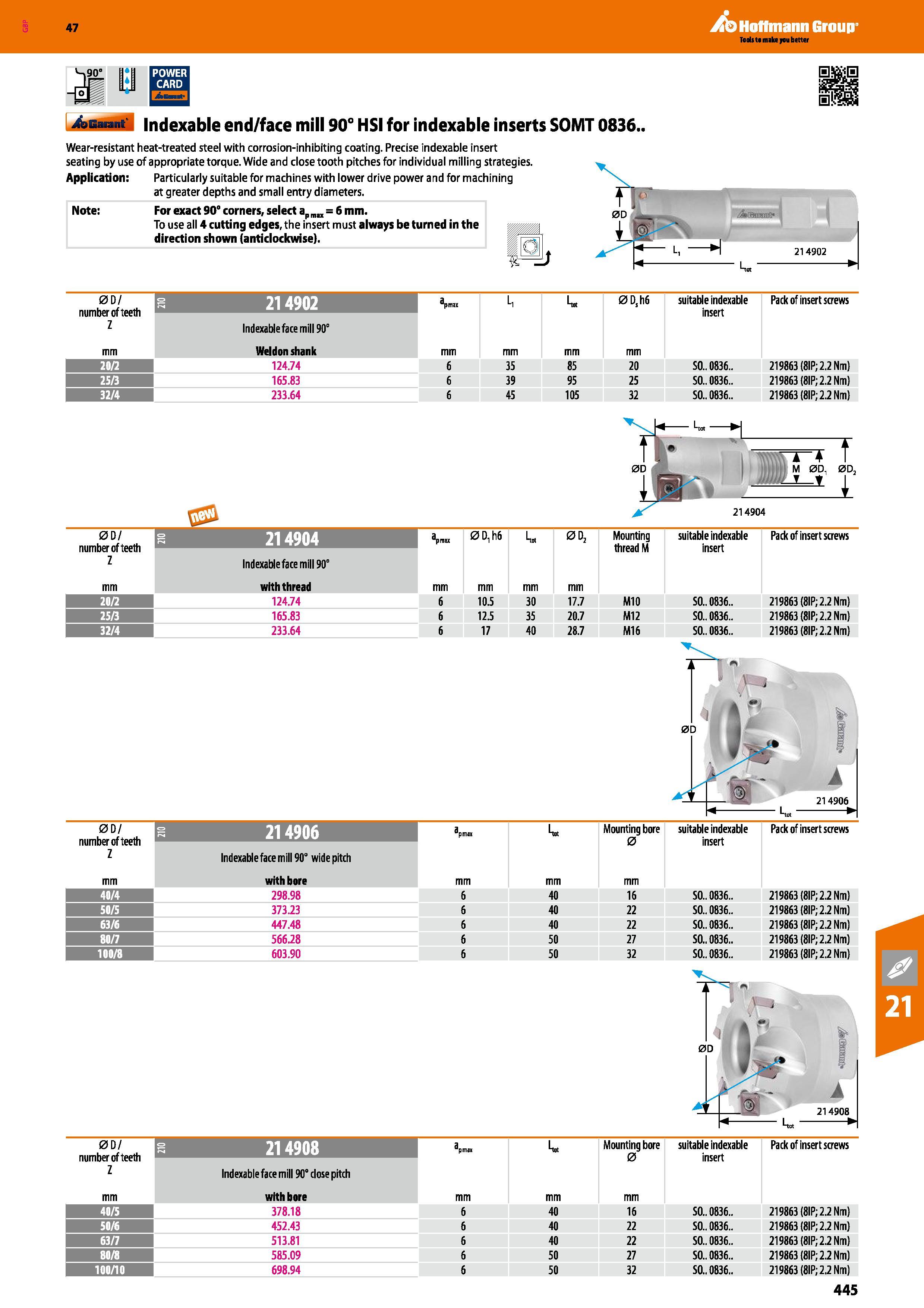

bGaiant indexable end/face mill 90° HSI for indexable inserts SOMT 0836. Wear-resistant heat-treated steel with corrosion-inhibiting coating. Precise indexable insert seating by use of appropriate torque. Wide and close tooth pitches for individual milling strategies. Application: Particularly suitable for machines with lower drive power and for machining at greater depths and small entry diameters. For exact 90° corners, select ap m„ = 6 mm. To use all 4 cutting edges, the insert must always be turned in the direction shown (anticlockwise). 0D / number of teeth Z - 214902 pmsx L, L 0D,h6 suitable indexable insert Pack of insert screws Indexable face mill 90° mm Weldon shank mm 20/2 124.74 6 35 85 20 SO.. 0836.. 219863 (8IP; 2.2 Nm) 25/3 165.83 6 39 95 25 SO.. 0836.. 219863 (8IP; 2.2 Nm) 32/4 233.64 6 45 105 32 SO.. 0836.. 219863 (8IP; 2.2 Nm) 0D/ number of teeth Z - 214904 pm 0D,h6 L 0D2 Mounting thread M suitable indexable insert Pack of insert screws Indexable face mill 90° mm with thread mm 20/2 124.74 6 10.5 30 17.7 M10 SO.. 0836.. 219863 (8IP; 2.2 Nm) 25/3 165.83 6 12.5 35 20.7 M12 SO.. 0836.. 219863 (8IP; 2.2 Nm) 32/4 233.64 6 17 40 28.7 Ml 6 SO.. 0836.. 219863 (8IP; 2.2 Nm) .v m 0D / number of teeth Z - 214906 Mounting bore 0 suitable indexable insert Pack of insert screws Indexable face mill 90° wide pitch mm with bore mm 40/4 298.98 6 40 16 SO.. 0836.. 219863 (8IP; 2.2 Nm) 50/5 373.23 6 40 22 SO.. 0836.. 219863 (8IP; 2.2 Nm) 63/6 447.48 6 40 22 SO.. 0836.. 219863 (8IP; 2.2 Nm) 80/7 566.28 6 50 27 SO.. 0836.. 219863 (8IP; 2.2 Nm) 100/8 603.90 6 50 32 SO.. 0836.. 219863 (8IP; 2.2 Nm) 0D / number of teeth Z 214908 pmax Kt Mounting bore 0 suitable indexable insert Pack of insert screws Indexable face mill 90° close pitch mm with bore mm 40/5 378.18 6 40 16 SO.. 0836.. 219863 (8IP; 2.2 Nm) 50/6 452.43 6 40 22 SO.. 0836.. 219863 (8IP; 2.2 Nm) 63/7 513.81 6 40 22 SO.. 0836.. 219863 (8IP; 2.2 Nm) 80/8 585.09 6 50 27 SO.. 0836.. 219863 (8IP; 2.2 Nm) 100/10 698.94 6 50 32 SO.. 0836.. 219863 (8IP; 2.2 Nm) 445
