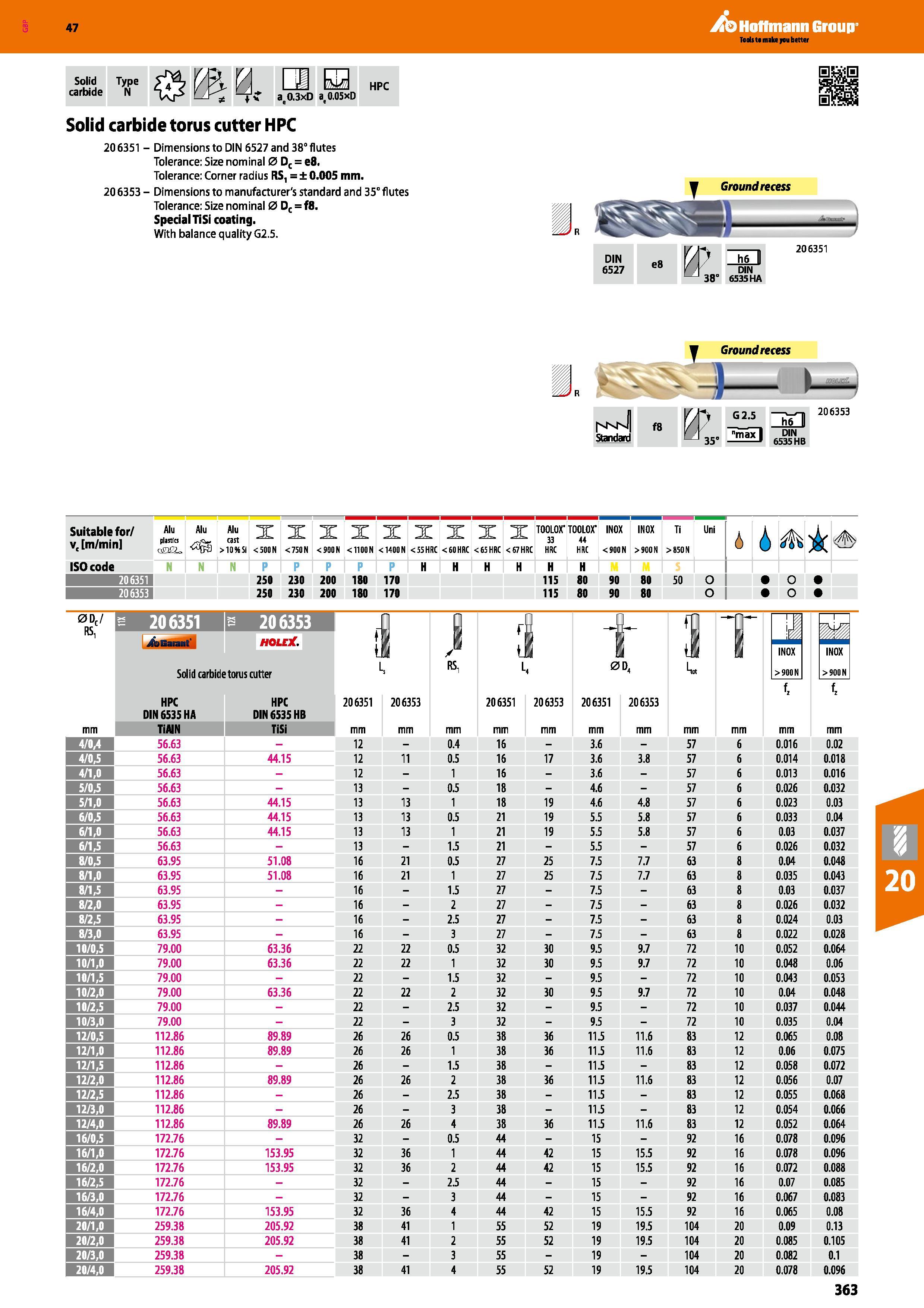

Hoffmann Group 47 Solid carbide Type N YM mm a 0.3xD a.0.05xD HPC Solid carbide torus cutter HPC 206351 - Dimensions to DIN 6527 and 38° flutes Tolerance: Size nominal 0 Dc = e8. Tolerance: Corner radius RS, = ± 0.005 mm. 206353 - Dimensions to manufacturer's standard and 35° flutes Tolerance: Size nominal 0 Dc = f8. Special TiSi coating. With balance quality G2.5. Ground recess DIN 6527 V Ground recess 4 I'vM'JI Standatd f8 (P 35" hTl G2.5 6535HB 206353 Suitable for/ v, m/min Alu piastres Alu cast > 10 % Si X < 500 N X < 750 N X < 900 N X < 1100 N X < 1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC TOOLOX- 33 HRC TOOLOX- 44 HRC INOX < 900 N IN0X > 900 N Ti >850N Uni 4 I ISO code N N N P H 206351 250 230 200 180 170 115 80 90 80 50 O o 206353 250 230 200 180 170 115 80 90 80 0DC/ RS, 206351 206353 4aS HOLE . Solid carbide torus cutter m IB L, 0D, HPC DIN 6535 HA HPC DIN 6535 HB 206351 206353 206351 206353 206351 206353 % mm TiAIN TiSi mm 4/0A 56.63 - 12 - 0.4 16 - 3.6 - 57 6 0.016 0.02 4/0,5 56.63 44.15 12 11 0.5 16 17 3.6 3.8 57 6 0.014 0.018 4/1,0 56.63 - 12 - 1 16 - 3.6 - 57 6 0.013 0.016 5/0,5 56.63 - 13 - 0.5 18 - 4.6 - 57 6 0.026 0.032 5/1,0 56.63 44.15 13 13 1 18 19 4.6 4.8 57 6 0.023 0.03 6/0,5 56.63 44.15 13 13 0.5 21 19 5.5 5.8 57 6 0.033 0.04 6/1,0 56.63 44.15 13 13 1 21 19 5.5 5.8 57 6 0.03 0.037 6/1,5 56.63 - 13 - 1.5 21 - 5.5 - 57 6 0.026 0.032 8/0,5 63.95 51.08 16 21 0.5 27 25 7.5 7.7 63 8 0.04 0.048 8/1,0 63.95 51.08 16 21 1 27 25 7.5 7.7 63 8 0.035 0.043 8/1,5 63.95 - 16 - 1.5 27 - 7.5 - 63 8 0.03 0.037 8/2,0 63.95 - 16 - 2 27 - 7.5 - 63 8 0.026 0.032 8/2,5 63.95 - 16 - 2.5 27 - 7.5 - 63 8 0.024 0.03 8/3,0 63.95 - 16 - 3 27 - 7.5 - 63 8 0.022 0.028 10/0,5 79.00 63.36 22 22 0.5 32 30 9.5 9.7 72 10 0.052 0.064 10/1,0 79.00 63.36 22 22 1 32 30 9.5 9.7 72 10 0.048 0.06 10/1,5 79.00 - 22 - 1.5 32 - 9.5 - 72 10 0.043 0.053 10/2,0 79.00 63.36 22 22 2 32 30 9.5 9.7 72 10 0.04 0.048 10/2,5 79.00 - 22 - 2.5 32 - 9.5 - 72 10 0.037 0.044 10/3,0 79.00 - 22 - 3 32 - 9.5 - 72 10 0.035 0.04 12/0,5 112.86 89.89 26 26 0.5 38 36 11.5 11.6 83 12 0.065 0.08 12/1,0 112.86 89.89 26 26 1 38 36 11.5 11.6 83 12 0.06 0.075 12/1,5 112.86 - 26 - 1.5 38 - 11.5 - 83 12 0.058 0.072 12/2,0 112.86 89.89 26 26 2 38 36 11.5 11.6 83 12 0.056 0.07 12/2,5 112.86 - 26 - 2.5 38 - 11.5 - 83 12 0.055 0.068 12/3,0 112.86 - 26 - 3 38 - 11.5 - 83 12 0.054 0.066 12/4,0 112.86 89.89 26 26 4 38 36 11.5 11.6 83 12 0.052 0.064 16/0,5 172.76 - 32 - 0.5 44 - 15 - 92 16 0.078 0.096 16/1,0 172.76 153.95 32 36 1 44 42 15 15.5 92 16 0.078 0.096 16/2,0 172.76 153.95 32 36 2 44 42 15 15.5 92 16 0.072 0.088 16/2,5 172.76 - 32 - 2.5 44 - 15 - 92 16 0.07 0.085 16/3,0 172.76 - 32 - 3 44 - 15 - 92 16 0.067 0.083 16/4,0 172.76 153.95 32 36 4 44 42 15 15.5 92 16 0.065 0.08 20/1,0 259.38 205.92 38 41 1 55 52 19 19.5 104 20 0.09 0.13 20/2,0 259.38 205.92 38 41 2 55 52 19 19.5 104 20 0.085 0.105 20/3,0 259.38 - 38 - 3 55 - 19 - 104 20 0.082 0.1 20/4,0 259.38 205.92 38 41 4 55 52 19 19.5 104 20 0.078 0.096 363
