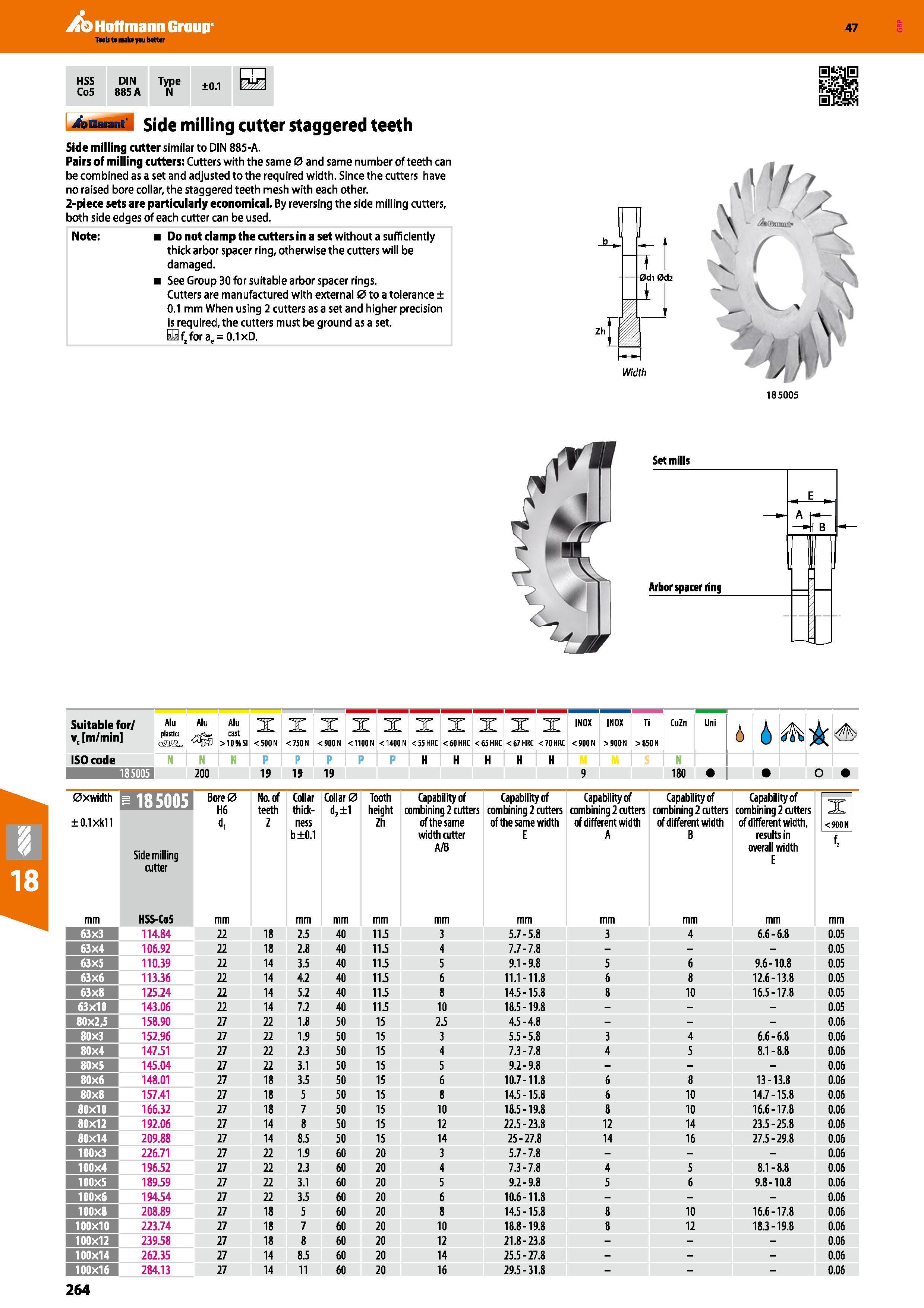

Hoffmann Group 47 HSS Co5 DIN Type 885 A N ±0.1 bGaiant side milling cutter staggered teeth Side milling cutter similar to DIN 885-A. Pairs of milling cutters; Cutters with the same 0 and same number of teeth can be combined as a set and adjusted to the required width. Since the cutters have no raised bore collar, the staggered teeth mesh with each other. 2-piece sets are particularly economical. By reversing the side milling cutters, both side edges of each cutter can be used. Note: Do not clamp the cutters in a set without a sufficiently thick arbor spacer ring, otherwise the cutters will be damaged. See Group 30 for suitable arbor spacer rings. Cutters are manufactured with external 0 to a tolerance ± 0.1 mm When using 2 cutters as a set and higher precision is required, the cutters must be ground as a set. E0f,fora =0.1xD. T 0di 0d2 Width 185005 Set mills Arbor spacer ring Suitable for/ vc m/min Alu plastics q Alu cast >109651 X < 500N X < 750 N X < 900 N X <1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC INOX < 900 N INOX > 900 N Ti >850 N CuZn Uni 6 ISO code N Mm nn P H nd 185005 200 19 19 19 9 180 O 0xwidth ± O.lxkl 1 185005 Bore0 No. of Collar Collar 0 Tooth Capability of Capability of Capability of Capability of Capability of H6 teeth thick- d2±1 height combining 2 cutters combining 2 cutters combining 2 cutters combining 2 cutters combining 2 cutters d, Z ness Zh of the same of the same width of different width of different width of different width, b±0.1 width cutter E A B results in ... A/B overall width Side milling f cutter mm HSS-Co5 mm 63X3 114.84 22 18 2.5 40 11.5 3 5.7-5.8 3 4 6.6-6.8 0.05 63x4 106.92 22 18 2.8 40 11.5 4 7.7-7.8 - 0.05 63x5 110.39 22 14 3.5 40 11.5 5 9.1-9.8 5 6 9.6-10.8 0.05 63x6 113.36 22 14 4.2 40 11.5 6 11.1-11.8 6 8 12.6-13.8 0.05 63x8 125.24 22 14 5.2 40 11.5 8 14.5-15.8 8 10 16.5-17.8 0.05 63x10 143.06 22 14 7.2 40 11.5 10 18.5-19.8 - 0.05 80x2,5 158.90 27 22 1.8 50 15 2.5 4.5-4.8 - 0.06 80x3 152.96 27 22 1.9 50 15 3 5.5-5.8 3 4 6.6-6.8 0.06 80x4 147.51 27 22 2.3 50 15 4 7.3-7.8 4 5 8.1-8.8 0.06 80x5 145.04 27 22 3.1 50 15 5 9.2-9.8 - 0.06 80x6 148.01 27 18 3.5 50 15 6 10.7-11.8 6 8 13-13.8 0.06 80x8 157.41 27 18 5 50 15 8 14.5-15.8 6 10 14.7-15.8 0.06 80x10 166.32 27 18 7 50 15 10 18.5-19.8 8 10 16.6-17.8 0.06 80x12 192.06 27 14 8 50 15 12 22.5-23.8 12 14 23.5-25.8 0.06 80x14 209.88 27 14 8.5 50 15 14 25 - 27.8 14 16 27.5-29.8 0.06 100x3 226.71 27 22 1.9 60 20 3 5.7-7.8 - 0.06 100x4 196.52 27 22 2.3 60 20 4 7.3-7.8 4 5 8.1-8.8 0.06 100x5 189.59 27 22 3.1 60 20 5 9.2-9.8 5 6 9.8-10.8 0.06 100x6 194.54 27 22 3.5 60 20 6 10.6-11.8 - 0.06 100x8 208.89 27 18 5 60 20 8 14.5-15.8 8 10 16.6-17.8 0.06 100x10 223.74 27 18 7 60 20 10 18.8-19.8 8 12 18.3-19.8 0.06 100x12 239.58 27 18 8 60 20 12 21.8-23.8 - 0.06 100x14 262.35 27 14 8.5 60 20 14 25.5-27.8 - 0.06 100x16 284.13 27 14 11 60 20 16 29.5-31.8 - 0.06 264
