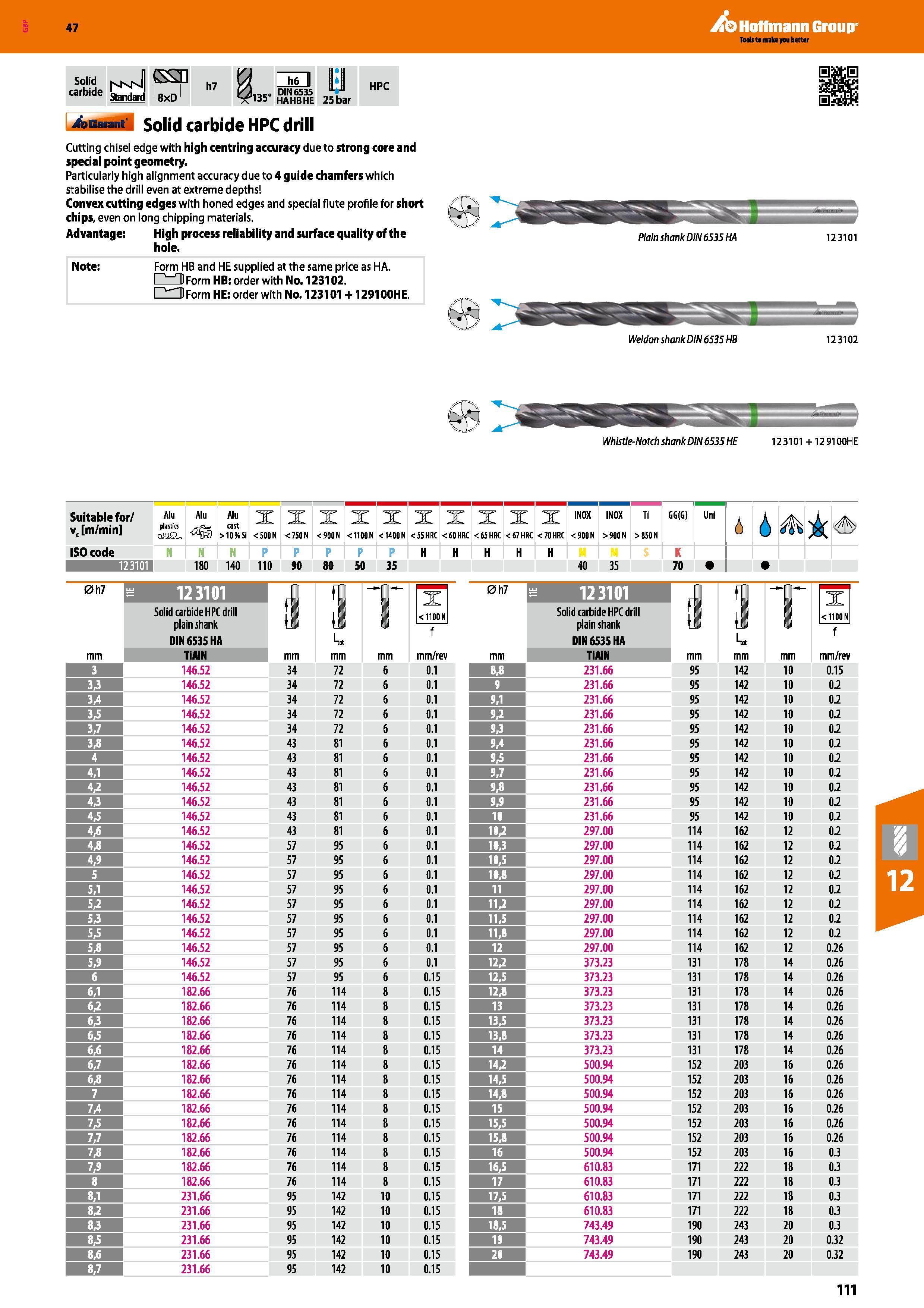

Hoffmann Group 47 carbide Standard 8xD h7 135‘ wl DIN 6535 HAHBHE HPC 25 bar 4aBM id Solid carbide HPC drill Cutting chisel edge with high centring accuracy due to strong core and special point geometry. Particularly high alignment accuracy due to 4 guide chamfers which stabilise the drill even at extreme depths Convex cutting edges with honed edges and special flute profile for short chips, even on long chipping materials. Advantage: High process reliability and surface quality of the hole. Note: Form HB and HE supplied at the same price as HA. r rl) Form HB: order with No. 123102. Cm Form HE: order with No. 123101 + 129100HE. Plain shank DIN 6535 HA 123101 Weldon shank DIN6535 HB 123102 Whistle-Notch shank DIN 6535 HE 123101 +12 9100HE Suitable for/ Alu v, m/min Alu cast “WS > 1094SI X < 500 N X < 750 N X < 900 N X < 1100 N X < 1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX < 900 N INOX > 900 N Ti > B50N GG(G) Uni 6 i ISO code N N P H K 123101 180 140 110 90 80 50 35 40 35 70 0h7 s 123101 i 1 T X < IIOON f Solid carbide HPC drill plain shank DIN 6535 HA mm TiAIN mm mm/rev 3 146.52 34 72 6 0.1 3,3 146.52 34 72 6 0.1 3/4 146.52 34 72 6 0.1 =:= 146.52 34 72 6 0.1 146.52 34 72 6 0.1 3,8 146.52 43 81 6 0.1 4 146.52 43 81 6 0.1 4,1 146.52 43 81 6 0.1 4,2 146.52 43 81 6 0.1 E5 146.52 43 81 6 0.1 146.52 43 81 6 0.1 4,6 146.52 43 81 6 0.1 4,8 146.52 57 95 6 0.1 4,9 146.52 57 95 6 0.1 5 146.52 57 95 6 0.1 5,1 146.52 57 95 6 0.1 5,2 146.52 57 95 6 0.1 53 146.52 57 95 6 0.1 146.52 57 95 6 0.1 5,8 146.52 57 95 6 0.1 5,9 146.52 57 95 6 0.1 6 146.52 57 95 6 0.15 6,1 182.66 76 114 8 0.15 6,2 182.66 76 114 8 0.15 E= 182.66 76 114 8 0.15 182.66 76 114 8 0.15 6,6 182.66 76 114 8 0.15 6,7 182.66 76 114 8 0.15 6,8 182.66 76 114 8 0.15 7 182.66 76 114 8 0.15 7/4 182.66 76 114 8 0.15 182.66 76 114 8 0.15 mum. 182.66 76 114 8 0.15 7,8 182.66 76 114 8 0.15 182.66 76 114 8 0.15 182.66 76 114 8 0.15 8,1 231.66 95 142 10 0.15 8,2 231.66 95 142 10 0.15 8,3 231.66 95 142 10 0.15 8,5 231.66 95 142 10 0.15 8,6 231.66 95 142 10 0.15 8,7 231.66 95 142 10 0.15 0h7 s 123101 J L T X <1100 N f Solid carbide HPC drill plain shank DIN 6535 HA mm TiAIN mm mm/rev 8,8 231.66 95 142 10 0.15 9 231.66 95 142 10 0.2 9,1 231.66 95 142 10 0.2 9,2 231.66 95 142 10 0.2 9,3 231.66 95 142 10 0.2 9,4 231.66 95 142 10 0.2 9,5 231.66 95 142 10 0.2 9,7 231.66 95 142 10 0.2 9,8 231.66 95 142 10 0.2 9,9 231.66 95 142 10 0.2 10 231.66 95 142 10 0.2 10,2 297.00 114 162 12 0.2 10,3 297.00 114 162 12 0.2 10,5 297.00 114 162 12 0.2 10,8 297.00 114 162 12 0.2 11 297.00 114 162 12 0.2 IV 297.00 114 162 12 0.2 11,5 297.00 114 162 12 0.2 11,8 297.00 114 162 12 0.2 12 297.00 114 162 12 0.26 12,2 373.23 131 178 14 0.26 12,5 373.23 131 178 14 0.26 12,8 373.23 131 178 14 0.26 13 373.23 131 178 14 0.26 13,5 373.23 131 178 14 0.26 13,8 373.23 131 178 14 0.26 14 373.23 131 178 14 0.26 14,2 500.94 152 203 16 0.26 14,5 500.94 152 203 16 0.26 14,8 500.94 152 203 16 0.26 15 500.94 152 203 16 0.26 15,5 500.94 152 203 16 0.26 15,8 500.94 152 203 16 0.26 16 500.94 152 203 16 0.3 16,5 610.83 171 222 18 0.3 17 610.83 171 222 18 0.3 17,5 610.83 171 222 18 0.3 18 610.83 171 222 18 0.3 18,5 743.49 190 243 20 0.3 19 743.49 190 243 20 0.32 20 743.49 190 243 20 0.32 111
