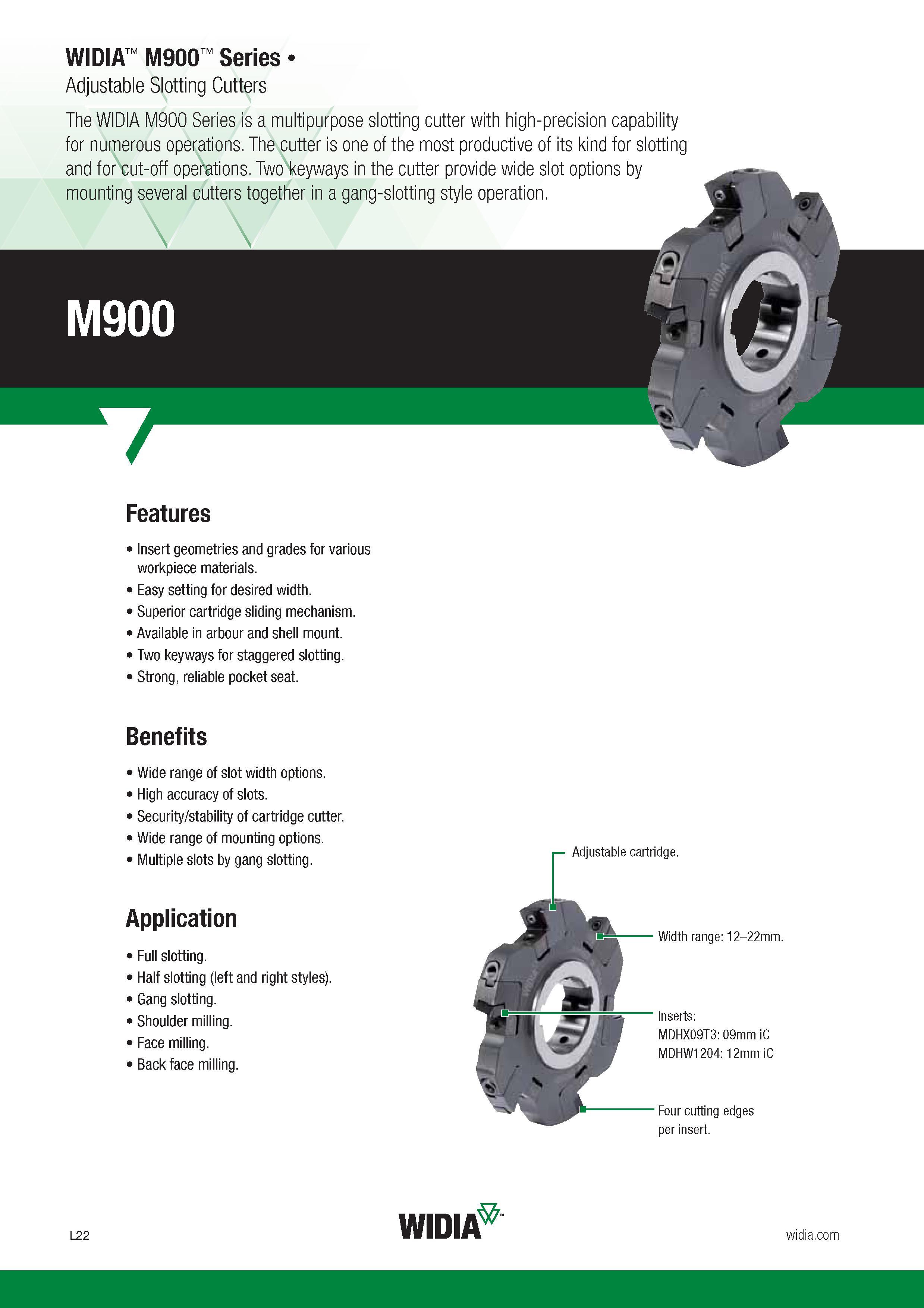

The Widia M900 Series is a multipurpose slotting cutter with high-precision capability for numerous operations. The cutter is one of the most productive of its kind for slotting and for cut-off operations. Two keyways in the cutter provide wide slot options by mounting several cutters together in a gang-slotting style operation. M900 Features Insert geometries and grade s for various workpiece materials. Easy setting for desired width. Superior cartridge sliding mechanism. Available in arbour and shell mount. Two keyways for staggered slotting. Strong, reliable pocket seat. Benefits Wide range of slot width options. High accuracy of slots. Security/stability of cartridge cutter. Wide range of mounting options. Multiple slots by gang slotting. Application Full slotting. Half slotting (left and right styles). Gang slotting. Shoulder milling. Face milling. Back face milling. Adjustable cartridge. Width range 12-22mm. Inserts MDHX09T3 09mm iC MDHW1204 12mm iC Four cutting edges per insert. Widia M900 Series Adjustable Slotting Cutters
