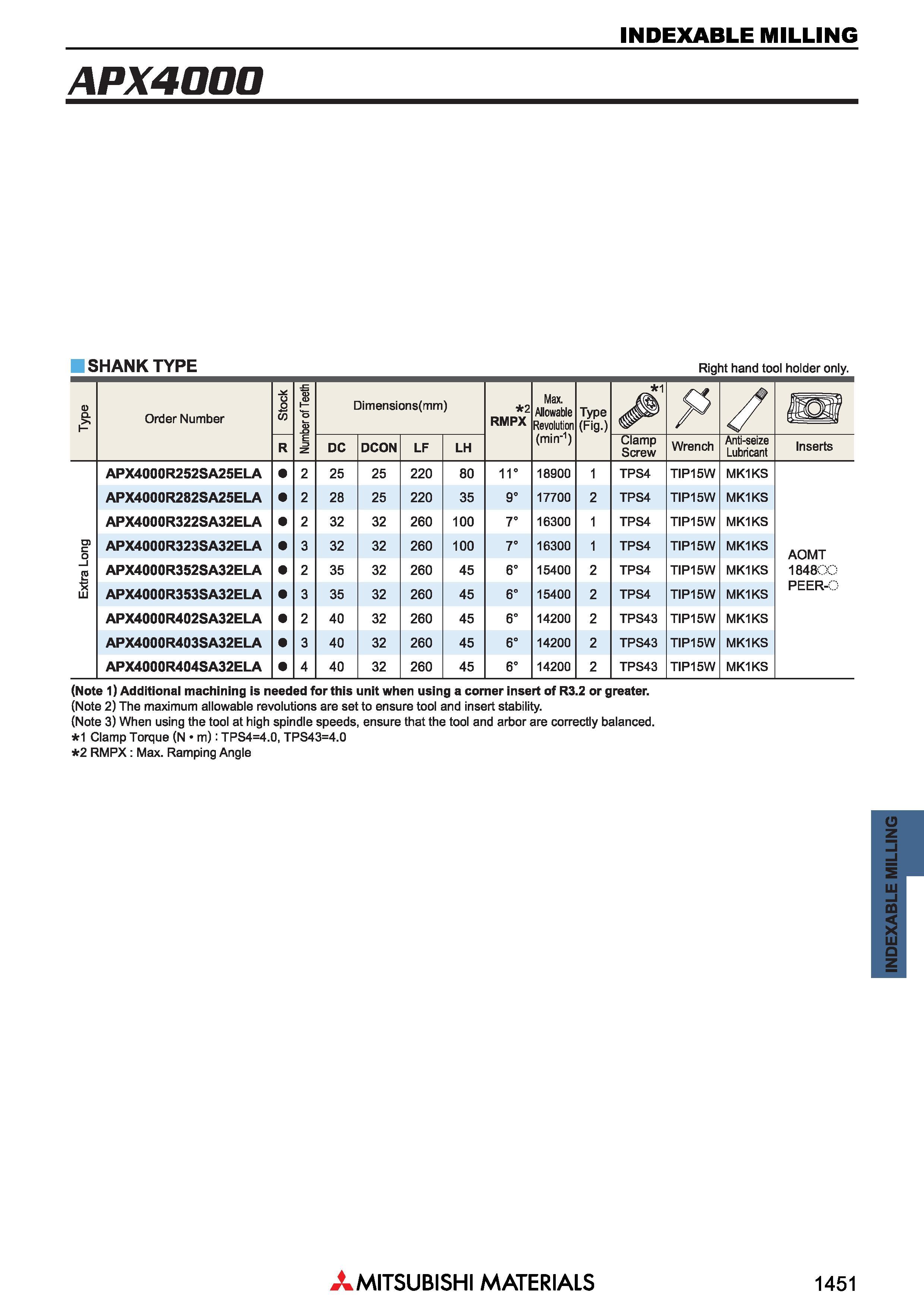

APX4000 Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ SHANK TYPE Right hand tool holder only. Type Обозначение Order Number Stock Количество режущих зубьев Number of Teeth Dimensions(mm) 2 RMPX Max. Allowable Revolution (min-1) Type (Fig.) 1 >5 / inf R DC DCON LF LH Clamp Screw Wrench Anti-seize Lubricant Inserts APX4000R252SA25ELA 2 25 25 220 80 11° 18900 1 TPS4 TIP15W MK1KS APX4000R282SA25ELA 2 28 25 220 35 9° 17700 2 TPS4 TIP15W MK1KS APX4000R322SA32ELA 2 32 32 260 100 T 16300 1 TPS4 TIP15W MK1KS ) c APX4000R323SA32ELA 3 32 32 260 100 T 16300 1 TPS4 TIP15W MK1KS AOMT I 2 APX4000R352SA32ELA 2 35 32 260 45 6° 15400 2 TPS4 TIP15W MK1KS 184800 < LU APX4000R353SA32ELA 3 35 32 260 45 6° 15400 2 TPS4 TIP15W MK1KS PEER- . APX4000R402SA32ELA 2 40 32 260 45 6° 14200 2 TPS43 TIP15W MK1KS APX4000R403SA32ELA 3 40 32 260 45 6° 14200 2 TPS43 TIP15W MK1KS APX4000R404SA32ELA 4 40 32 260 45 6° 14200 2 TPS43 TIP15W MK1KS (Note 1) Additional machining is needed for this unit when using a corner insert of R3.2 or greater. (Note 2) The maximum allowable revolutions are set to ensure tool and insert stability. (Note 3) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. 1 Clamp Torque (N m): TPS4=4.0, TPS43=4.0 2 RMPX Max. Ramping Angle Mitsubishi Materials 1451 INDEXABLE MILLING
