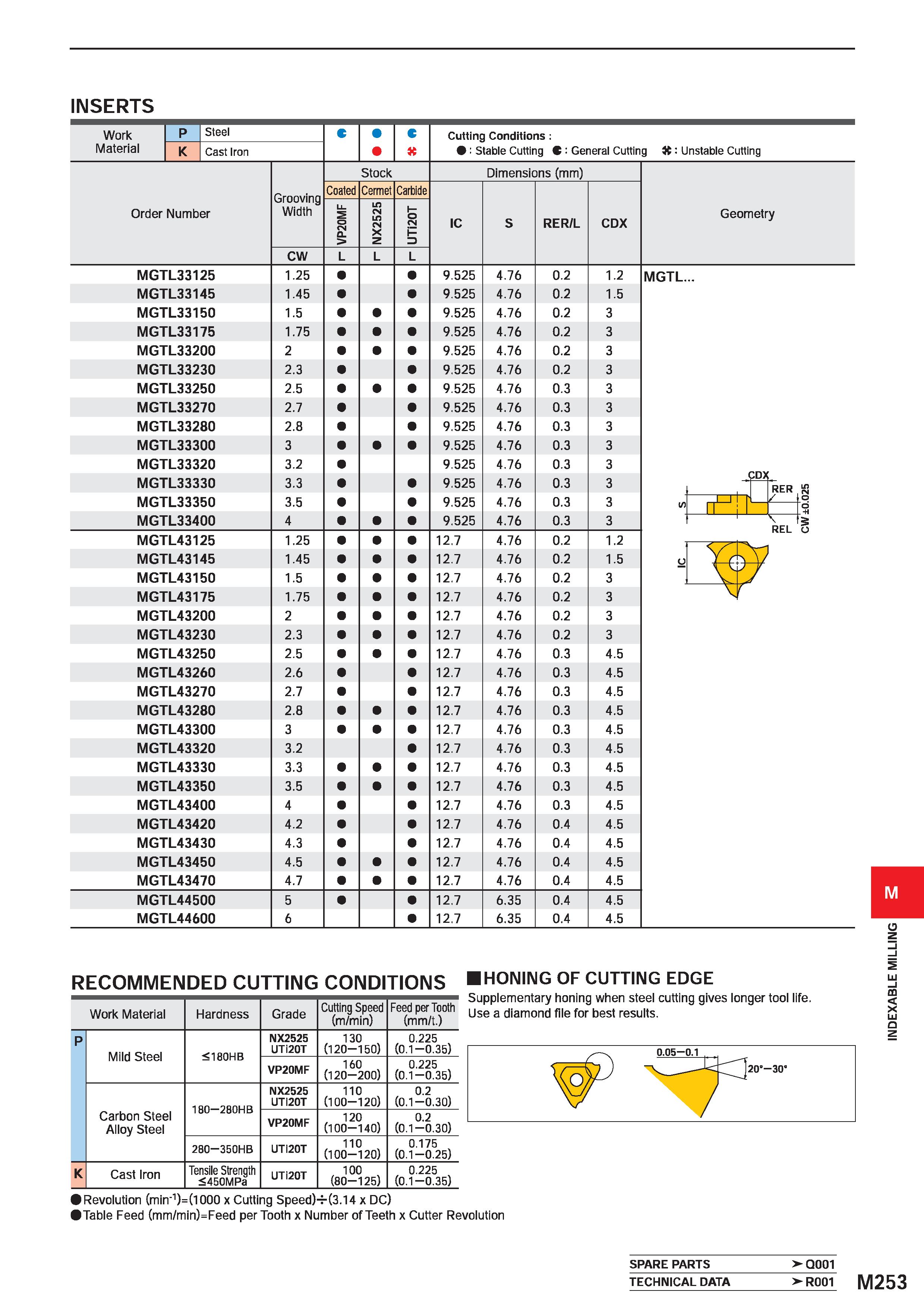

INSERTS Work Material P Steel C C X Cutting Conditions : : Stable Cutting C : General Cutting K: Unstable Cutting K Cast Iron Order Number Grooving Width Stock Dimensions (mm) Geometry Coated Cermet Carbide IC S RE R/L CDX VP20MF NX2525 i- F CW L L MGTL33125 1.25 9.525 4.76 0.2 1.2 MGTL... MGTL33145 1.45 9.525 4.76 0.2 1.5 MGTL33150 1.5 9.525 4.76 0.2 3 MGTL33175 1.75 9.525 4.76 0.2 3 MGTL33200 2 9.525 4.76 0.2 3 MGTL33230 2.3 9.525 4.76 0.2 3 MGTL33250 2.5 9.525 4.76 0.3 3 MGTL33270 2.7 9.525 4.76 0.3 3 MGTL33280 2.8 9.525 4.76 0.3 3 MGTL33300 3 9.525 4.76 0.3 3 MGTL33320 3.2 9.525 4.76 0.3 3 MGTL33330 3.3 9.525 4.76 0.3 3 (/) L.U/ RER £ / P MGTL33350 3.5 9.525 4.76 0.3 3 nir o MGTL33400 4 9.525 4.76 0.3 3 i-1 MGTL43125 1.25 12.7 4.76 0.2 1.2 MGTL43145 1.45 12.7 4.76 0.2 1.5 o MGTL43150 1.5 12.7 4.76 0.2 3 / MGTL43175 1.75 12.7 4.76 0.2 3 N ( MGTL43200 2 12.7 4.76 0.2 3 MGTL43230 2.3 12.7 4.76 0.2 3 MGTL43250 2.5 12.7 4.76 0.3 4.5 MGTL43260 2.6 12.7 4.76 0.3 4.5 MGTL43270 2.7 12.7 4.76 0.3 4.5 MGTL43280 2.8 12.7 4.76 0.3 4.5 MGTL43300 3 12.7 4.76 0.3 4.5 MGTL43320 3.2 12.7 4.76 0.3 4.5 MGTL43330 3.3 12.7 4.76 0.3 4.5 MGTL43350 3.5 12.7 4.76 0.3 4.5 MGTL43400 4 12.7 4.76 0.3 4.5 MGTL43420 4.2 12.7 4.76 0.4 4.5 MGTL43430 4.3 12.7 4.76 0.4 4.5 MGTL43450 4.5 12.7 4.76 0.4 4.5 MGTL43470 4.7 12.7 4.76 0.4 4.5 MGTL44500 5 12.7 6.35 0.4 4.5 MGTL44600 6 12.7 6.35 0.4 4.5 RECOMMENDED CUTTING CONDITIONS HONING OF CUTTING EDGE Work Material Hardness Grade Cutting Speed (m/min) Feed per Tooth (mm/t.) P Mild Steel 180HB NX2525 UTi20T 130 (120-150) 0.225 (0.1-0.35) VP20MF 160 (120-200) 0.225 (0.1-0.35) 180 280HB NX2525 UTI20T 110 (100-120) 0.2 (0.1-0.30) Carbon Steel Alloy Steel VP20MF 120 (100-140) 0.2 (0.1-0.30) 280 350HB UTI20T 110 (100-120) 0.175 (0.1-0.25) K Cast Iron Tensile Strength 450MPa UTi20T 100 (80-125) 0.225 (0.1-0.35) Supplementary honing when steel cutting gives longer tool life. Use a diamond file for best results. 0.05-0.1 vO. 20" 30° Revolution (min'1)=(l000 x Cutting Speed)-r(3.14 x DC) Table Feed (mm/min)=Feed per Tooth x Number ofTeeth x Cutter Revolution SPARE PARTS > Q001 TECHNICAL DATA > R001 M253 INDEXABLE MILLING
