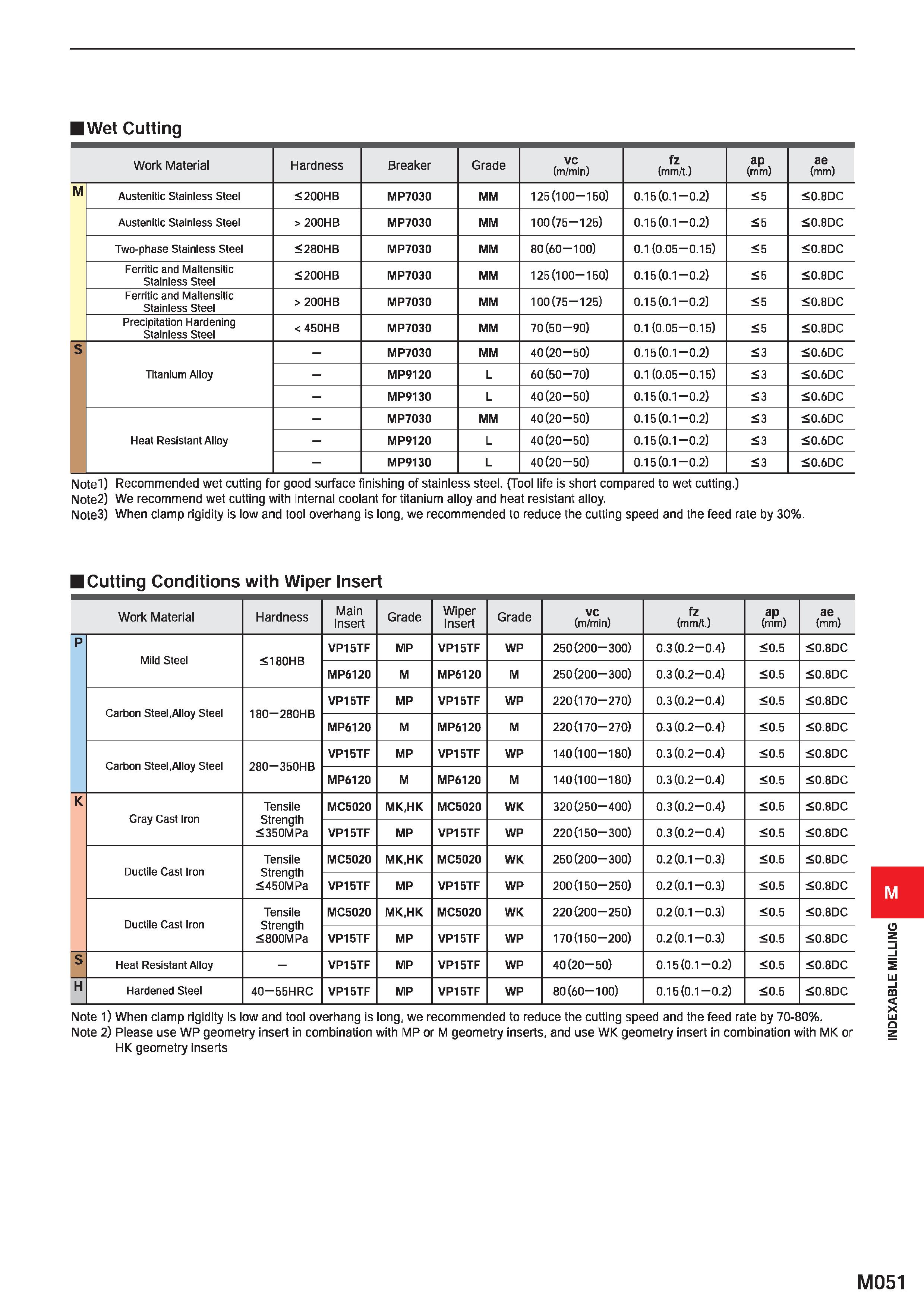

Wet Cutting Work Material Hardness Breaker Grade VC (m/min) fz (mm/t.) ap (mm) ae (mm) M Austenitic Stainless Steel 200HB MP7030 MM 125(100-150) 0.15(0.1-0.2) £5 i0.8DC Austenitic Stainless Steel > 200HB MP7030 MM 100(75-125) 0.15(0.1-0.2) 5 O.BDC Two-phase Stainless Steel 280HB MP7030 MM 80(60-100) 0.1 (0.05-0.15) 5 0.8DC Ferritic and Maltensitic Stainless Steel 200HB MP7030 MM 125(100-150) 0.15(0.1-0.2) 5 0.8DC Ferritic and Maltensitic Stainless Steel > 200HB MP7030 MM 100(75-125) 0.15(0.1-0.2) 5 0.8DC Precipitation Hardening Stainless Steel 450HB MP7030 MM 70(50-90) 0.1 (0.05-0.15) 5 0.8DC S - MP7030 MM 40(20-50) 0.15(0.1-0.2) 3 0.6DC Titanium Alloy - MP9120 L 60(50-70) 0.1 (0.05-0.15) 3 0.6DC - MP9130 L 40(20-50) 0.15(0.1-0.2) 3 0.6DC - MP7030 MM 40(20-50) 0.15(0.1-0.2) 3 0.6DC Heat Resistant Alloy - MP9120 L 40(20-50) 0.15(0.1-0.2) 3 0.6DC - MP9130 L 40(20-50) 0.15(0.1-0.2) 3 0.6DC Notel) Recommended wet cutting for good surface finishing of stainless steel. (Tool life is short compared to wet cutting.) Note2) We recommend wet cutting with internal coolant for titanium alloy and heat resistant alloy. Note3) When clamp rigidity is low and tool overhang is long, we recommended to reduce the cutting speed and the feed rate by 30%. Cutting Conditions with Wiper Insert Work Material Hardness Main Insert Grade Wiper Insert Grade VC (m/min) fz (mm/t.) ap (mm) ae (mm) P Mild Steel 180HB VP15TF MP VP15TF WP 250(200-300) 0.3 (0.2 0.4) 0.5 0.8DC MP6120 M MP6120 M 250(200-300) 0.3 (0.2 0.4) 0.5 0.8DC Carbon Steel .Alloy Steel 180 280HB VP15TF MP VP15TF WP 220(170-270) 0.3 (0.2 0.4) 0.5 0.8DC MP6120 M MP6120 M 220(170-270) 0.3 (0.2-0.4) 0.5 0.8DC Carbon Steel .Alloy Steel 280 350HB VP15TF MP VP15TF WP 140(100-180) 0.3 (0.2 0.4) 0.5 0.8DC MP6120 M MP6120 M 140(100-180) 0.3 (0.2 0.4) 0.5 i0.8DC K Gray Cast Iron Tensile Strength 350MPa MC5020 MK,HK MC5020 WK 320(250-400) 0.3 (0.2 0.4) 0.5 0.8DC VP15TF MP VP15TF WP 220(150-300) 0.3 (0.2 0.4) 0.5 0.8DC Ductile Cast Iron Tensile Strength 450MPa MC5020 MK,HK MC5020 WK 250(200-300) 0.2 (0.1-0.3) 0.5 0.8DC VP15TF MP VP15TF WP 200(150-250) 0.2 (0.1-0.3) 0.5 0.8DC Ductile Cast Iron Tensile Strength 800MPa MC5020 MK.HK MC5020 WK 220(200-250) 0.2 (0.1-0.3) 0.5 0.8DC VP15TF MP VP15TF WP 170(150-200) 0.2 (0.1-0.3) 0.5 0.8DC S Heat Resistant Alloy - VP15TF MP VP15TF WP 40(20-50) 0.15(0.1-0.2) 0.5 0.8DC H Hardened Steel 40-55HRC VP15TF MP VP15TF WP 80(60-100) 0.15(0.1-0.2) 0.5 0.8DC Note 1) When clamp rigidity is low and tool overhang is long, we recommended to reduce the cutting speed and the feed rate by 70-80%. Note 2) Please use WP geometry insert in combination with MP or M geometry inserts, and use WK geometry insert in combination with MK or HK geometry inserts M051 INDEXABLE MILLING
