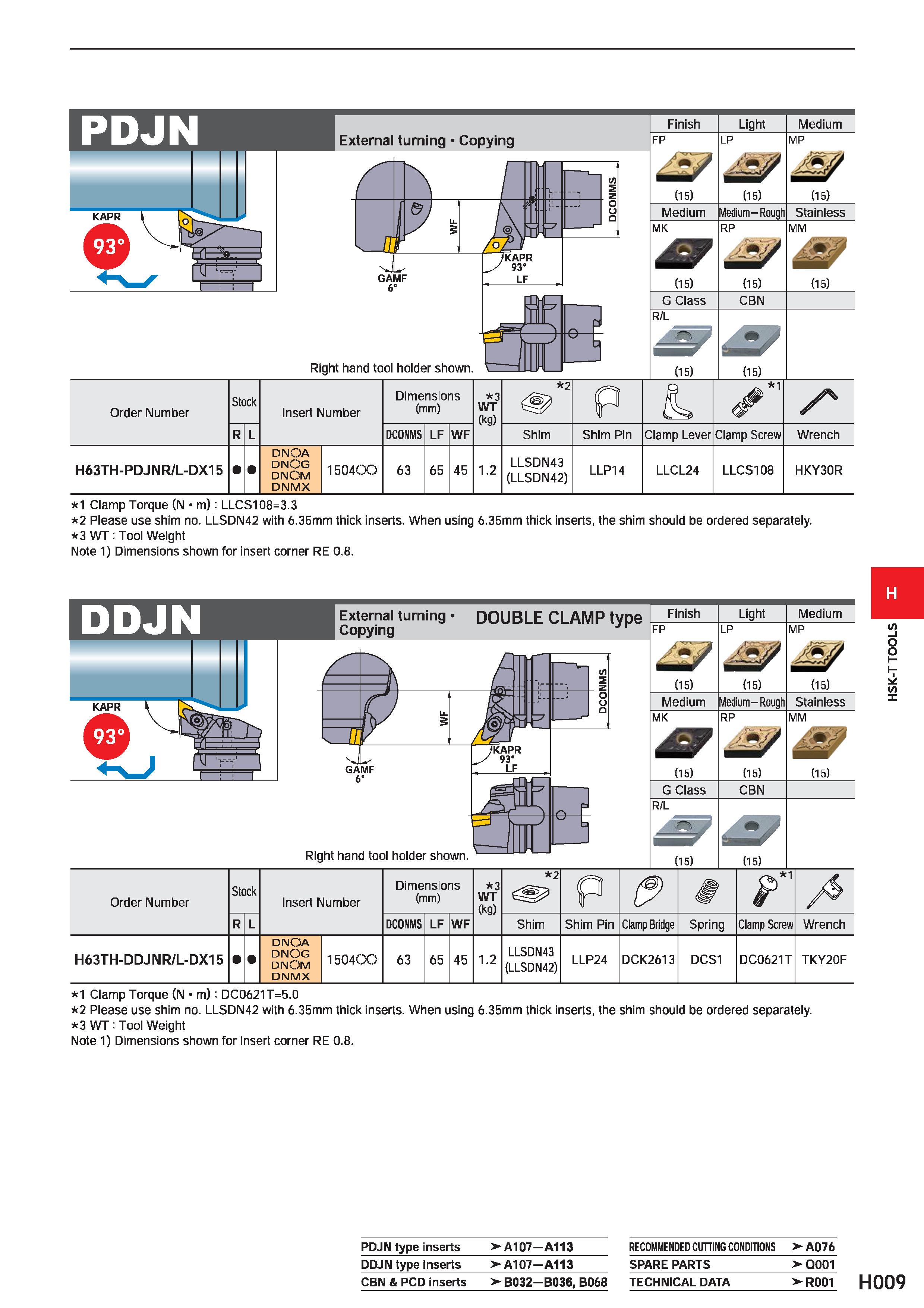

External turning Copying Right hand tool holder shown. J & rill ) Li Finish Light Medium FP MP (15) (15) (15) Medium Medium-Rough Stainless MK RP MM 0 (15) (15) (15) G Class CBN R/L (15) BBT (15) Order Number Stock Insert Number Dimensions (mm) 3 WT (kg) 2 P 1 S' R L DCONMS LF WF Shim Shim Pin Clamp Lever Clamp Screw Wrench H63TH-PDJNR/L-DX15 DNQA DNOG dnOm DNMX 1504CC 63 65 45 1.2 LLSDN43 (LLSDN42) LLP14 LLCL24 LLCS108 HKY30R 1 Clamp Torque (N m): LLCS108=3.3 2 Please use shim no. LLSDN42 with 6.35mm thick inserts. When using 6.35mm thick inserts, the shim should be ordered separately. 3 WT : Tool Weight Note 1) Dimensions shown for insert corner RE 0.8. External turning DOUBLE CLAMP type Copying Right hand tool holder shown. Finish FP (15) Medium Medium-Rough MK (15) G Class R/L (15) Light LP (15) CBN (15) Medium MP Stainless MM (15) Order Number Stock Insert Number Dimensions (mm) 3 WT (kg) 2 P r R L DCONMS LF WF Shim Shim Pin Clamp Bridge Spring Clamp Screw Wrench H63TH-DDJNR/L-DX15 DNOA DNOG dnOm DNMX 150400 63 65 45 1.2 LLSDN43 (LLSDN42) LLP24 DCK2613 DCS1 DC0621T TKY20F 1 Clamp Torque (N m): DC0621T=5.0 2 Please use shim no. LLSDN42 with 6.35mm thick inserts. When using 6.35mm thick inserts, the shim should be ordered separately. 3 WT : Tool Weight Note 1) Dimensions shown for insert corner RE 0.8. PDJN type inserts >A107-A113 RECOMMENDED CUTTING CONDITIONS > A076 DDJN type inserts > A107-A113 SPARE PARTS >Q001 CBN & PCD inserts > B032-B036, B068 TECHNICAL DATA >R001 H009 HSK-T TOOLS
