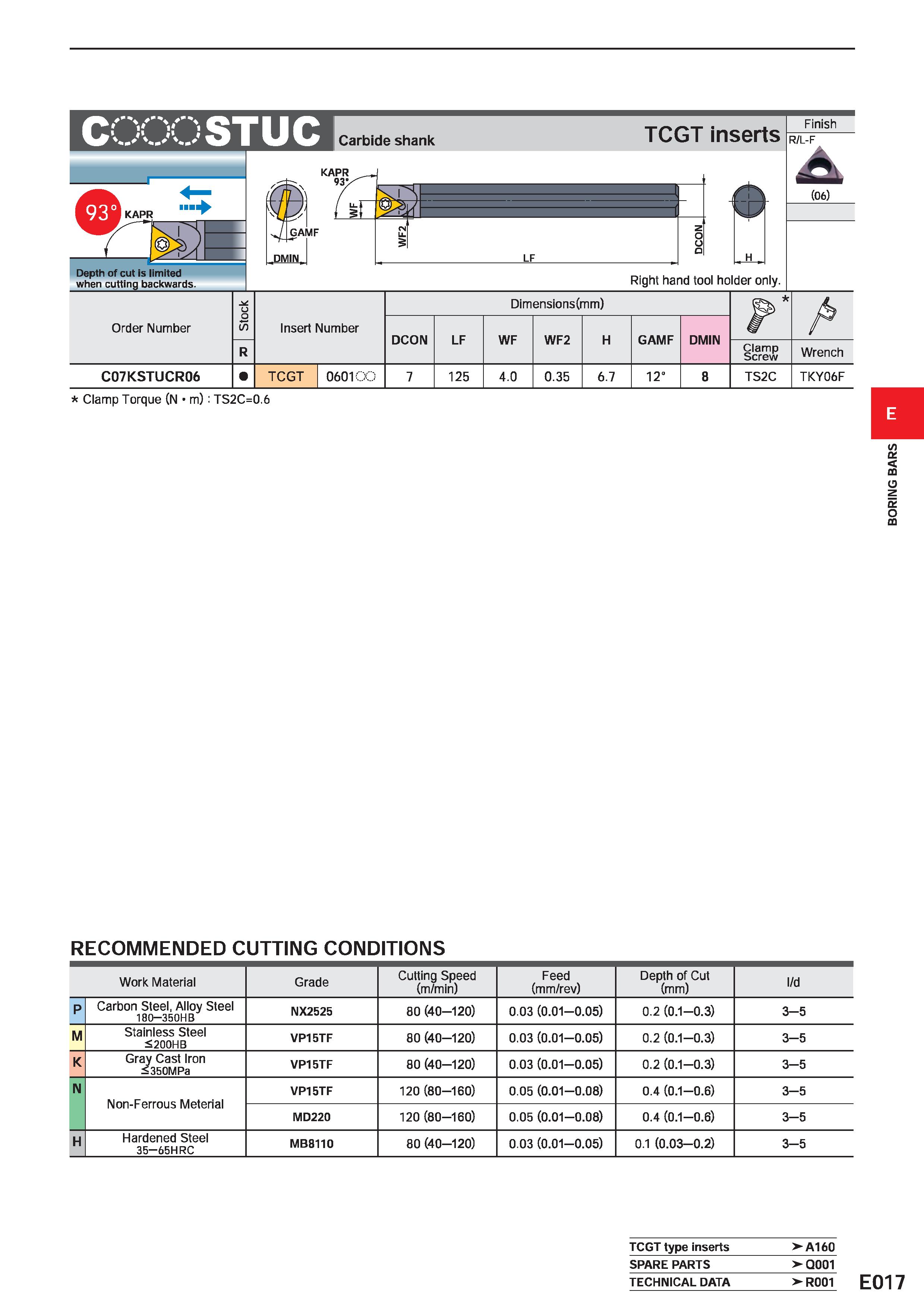

STUC Carbide shank TCGT inserts KAPR Depth of cut is limited H when cutting backwards. KAPR 93 LF Right hand tool holder only. Finish R/L-F A (06) Order Number Stock Insert Number Dimensions(mm) DCON LF WF WF2 H GAMF DMIN R Clamp Screw Wrench C07KSTUCR06 TCGT 0601 CO 7 125 4.0 0.35 6.7 12° 8 TS2C TKY06F Clamp Torque (N m): TS2C=0.6 RECOMMENDED CUTTING CONDITIONS Work Material Grade Cutting Speed (m/min) Feed (mm/rev) Depth of Cut (mm) I/d P Carbon Steel, Alloy Steel 180 350HB NX2525 80 (40-120) 0.03 (0.01-0.05) 0.2 (0.1 0.3) 3-5 M Stainless Steel i200HB VP15TF 80 (40-120) 0.03 (0.01-0.05) 0.2 (0.1 0.3) 3-5 K Gray Cast Iron 350MPa VP15TF 80 (40-120) 0.03 (0.01-0.05) 0.2 (0.1 0.3) 3-5 N Non-Ferrous Meterial VP15TF 120 (80-160) 0.05 (0.01-0.08) 0.4 (0.1 0.6) 3-5 MD220 120 (80-160) 0.05 (0.01-0.08) 0.4 (0.1 0.6) 3-5 H Hardened Steel 35 65HRC MB8110 80 (40-120) 0.03 (0.01-0.05) 0.1 (0.03-0.2) 3-5 TCGT type inserts >A160 SPARE PARTS >-Q001 TECHNICAL DATA > R001 E017 BORING BARS
